Main Relay (Computer/Fuel System)
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
Symptom Related Diagnostic Procedures

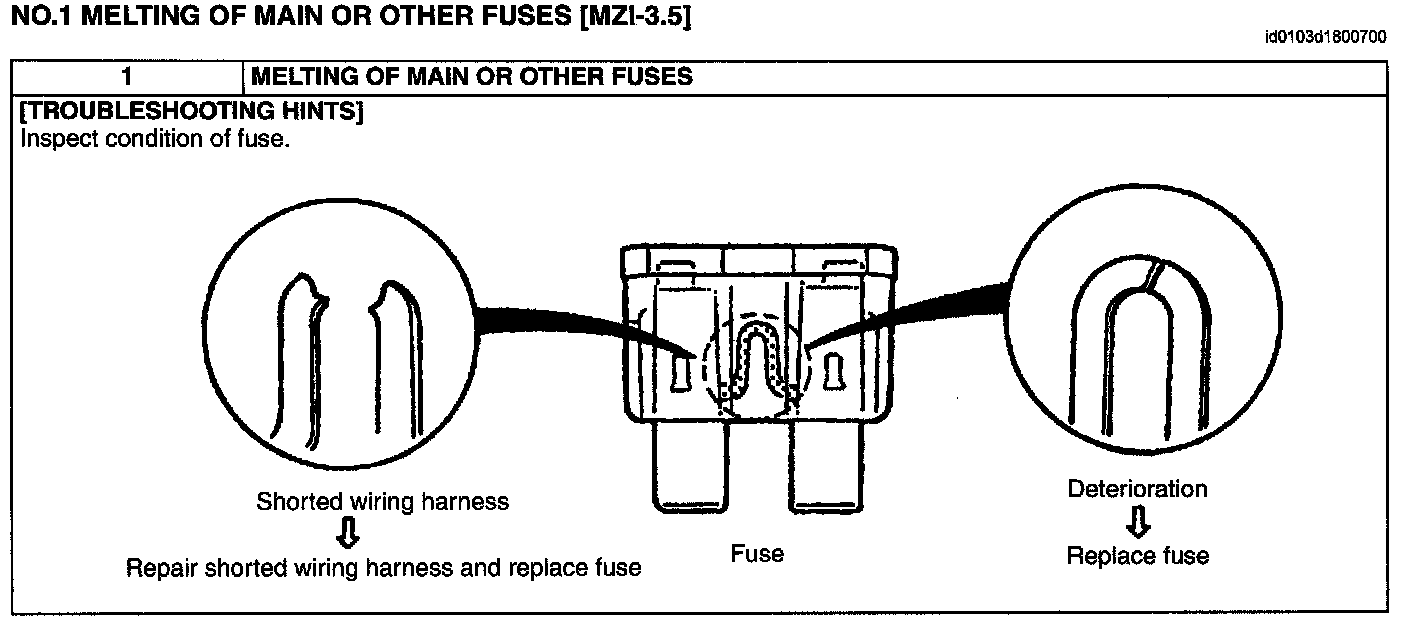

No.1 Melting Of Main Or Other Fuses Part 1:

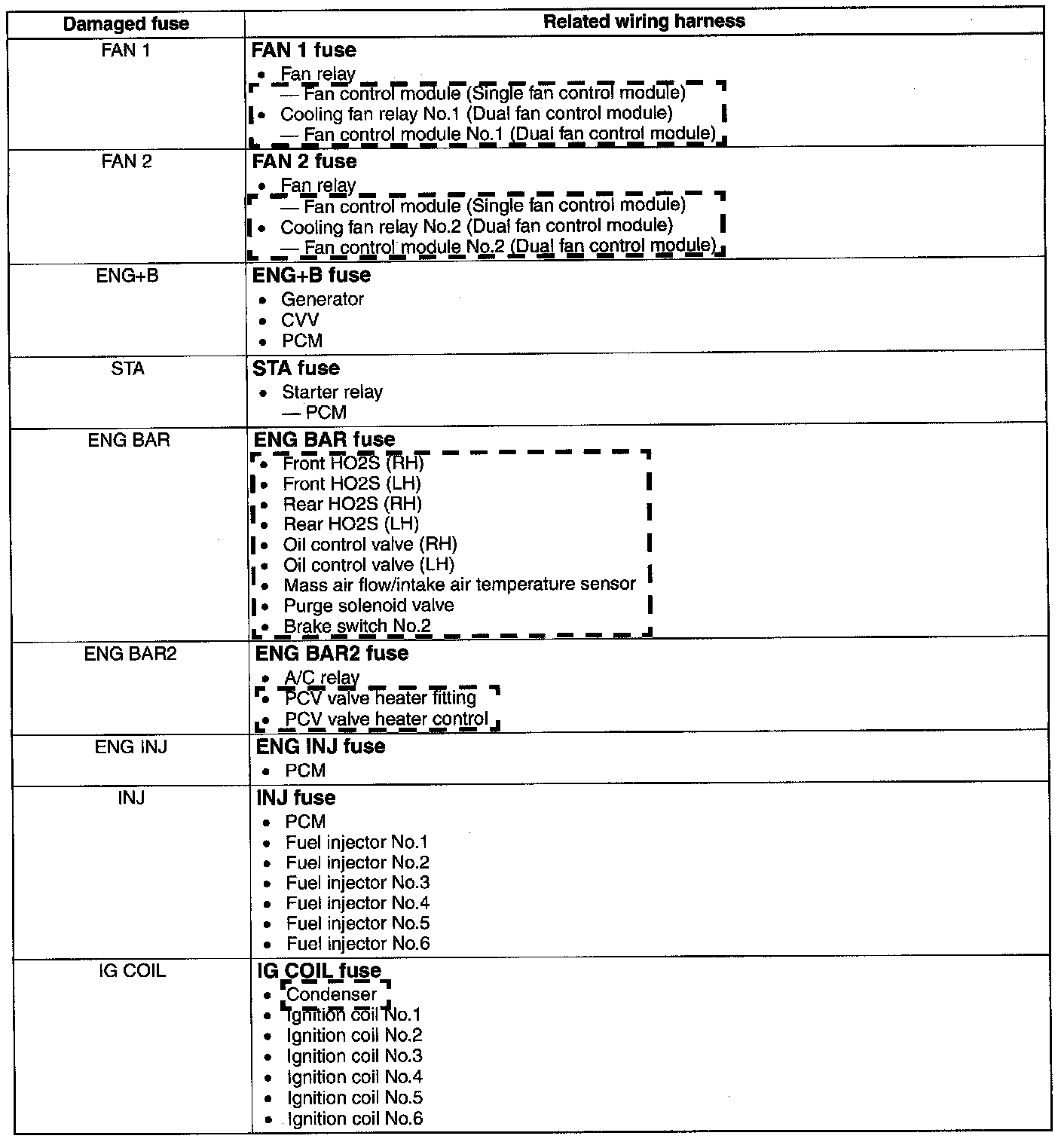

No.1 Melting Of Main Or Other Fuses Part 2:

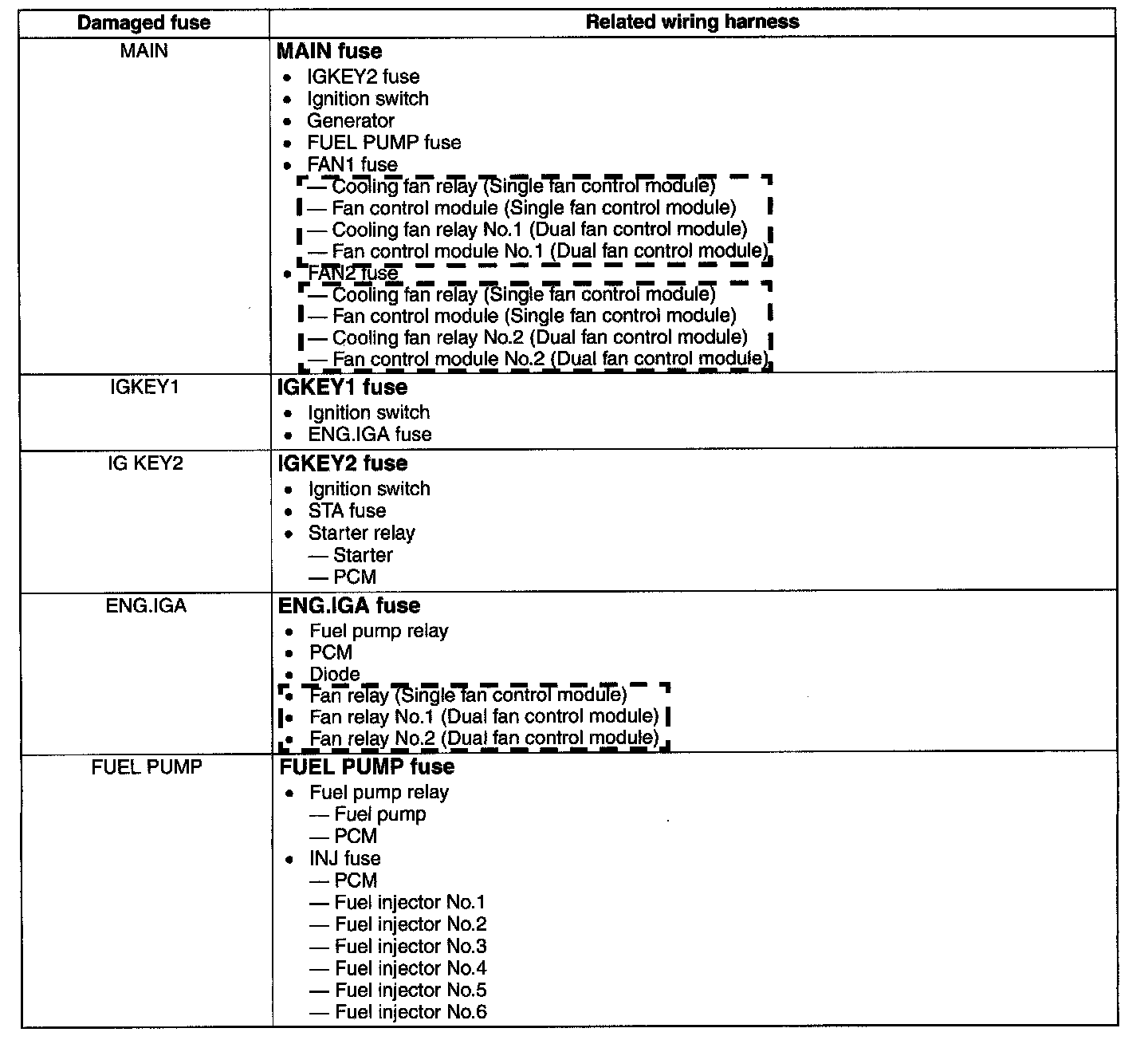

No.1 Melting Of Main Or Other Fuses Part 3:
