Camshaft Position Sensor: Service and Repair

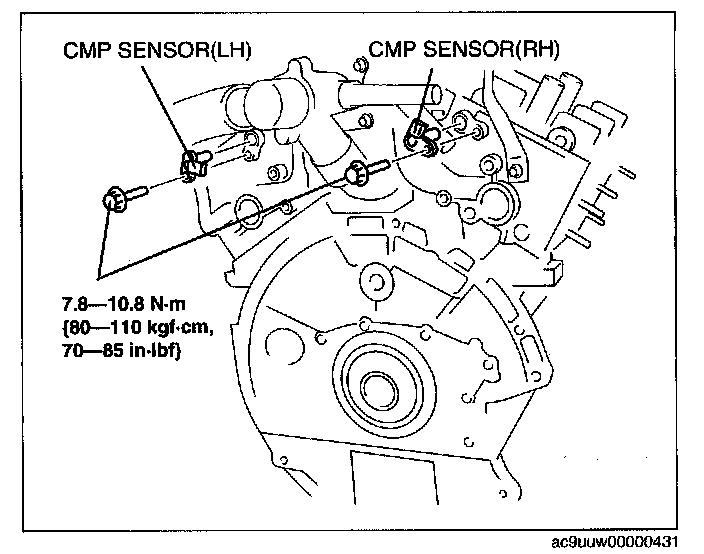

CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [MZI-3.5]

1. Disconnect the negative battery cable.
2. Remove the battery.
3. Remove the following part for easier access.
- Remove the resonance chamber and air cleaner assy.




4. Disconnect the CMP sensor connector
5. Remove the CMP sensor.

NOTE: Lubricate the CMP O-ring seal with clean engine oil.

6. Install in the reverse order of removal.
