Mazda Truck
>>
2007
>>
CX-9 V6-3.5L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
System Schematic
>>
Front
Front

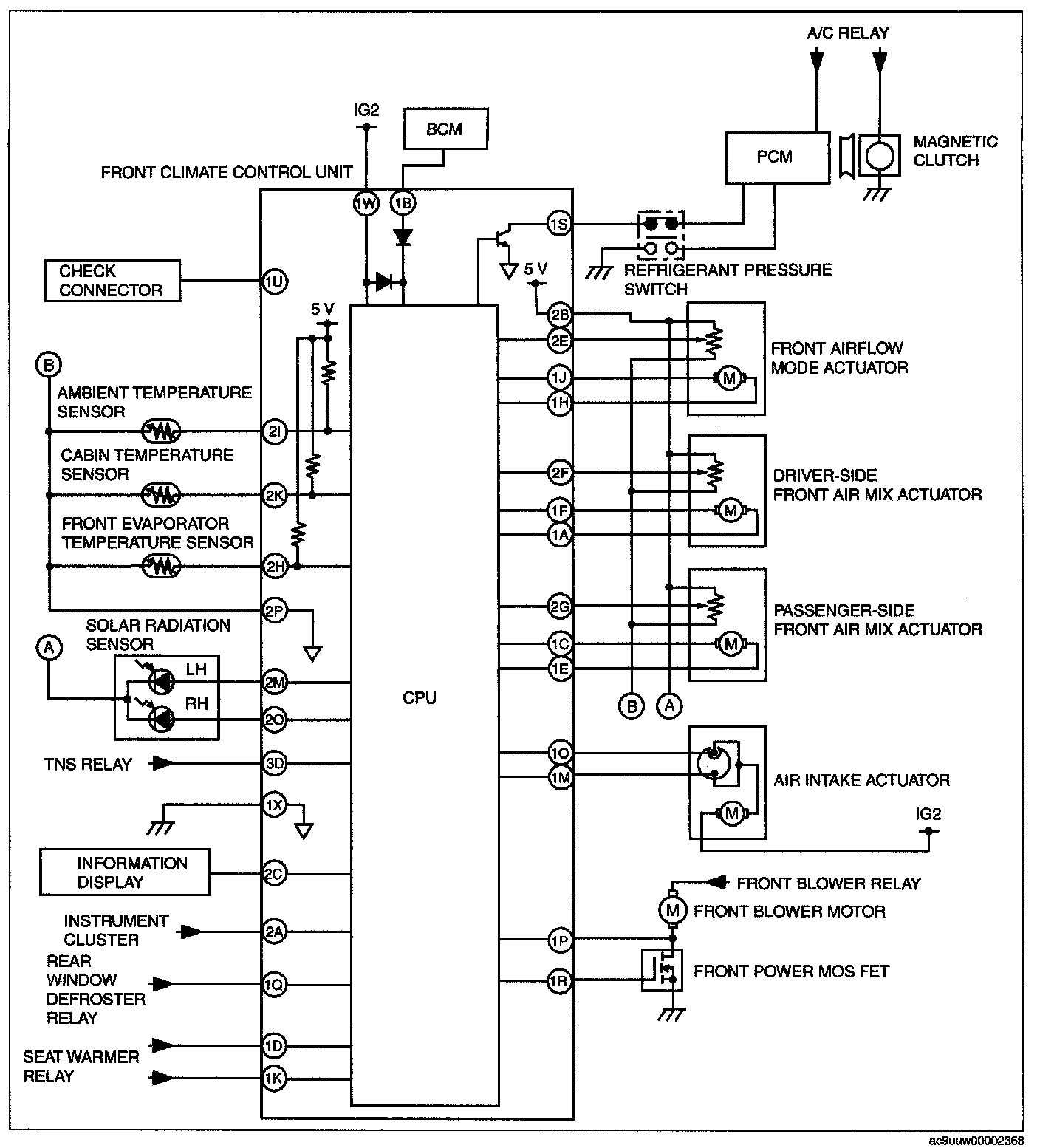

Front HVAC System Wiring Diagram:

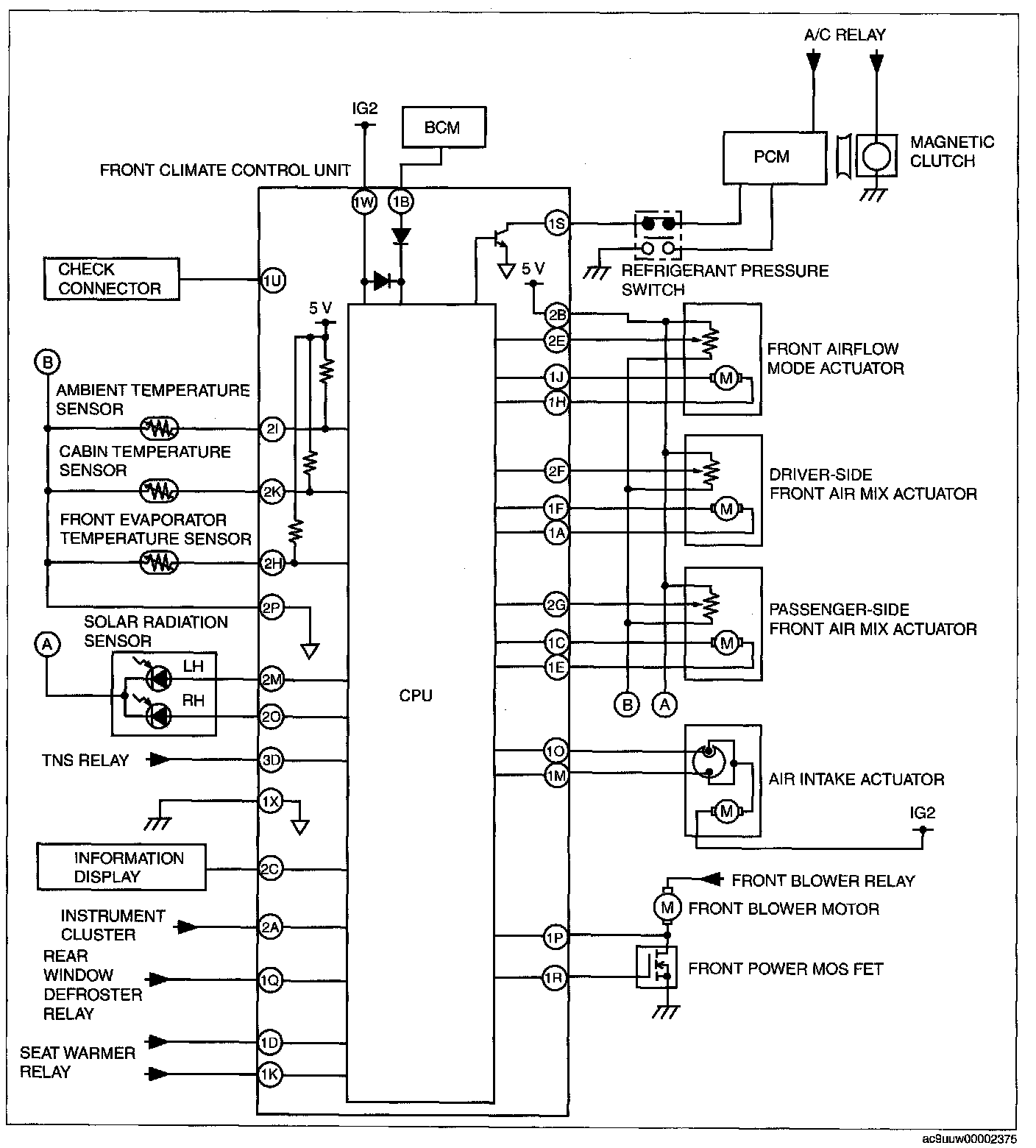

Front HVAC System Wiring Diagram:
