Component Locations

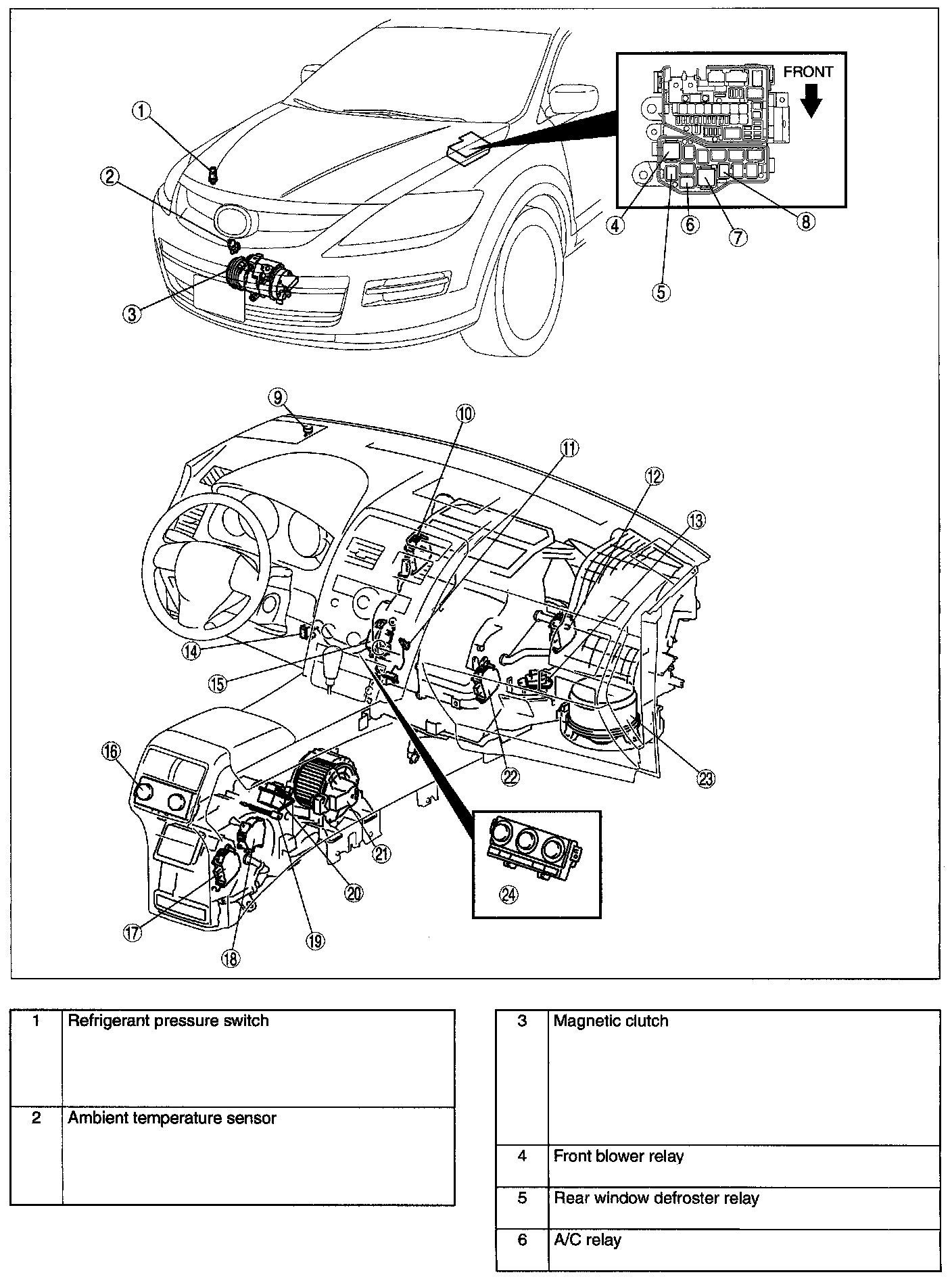

HVAC Control System Location Index (Part-1):

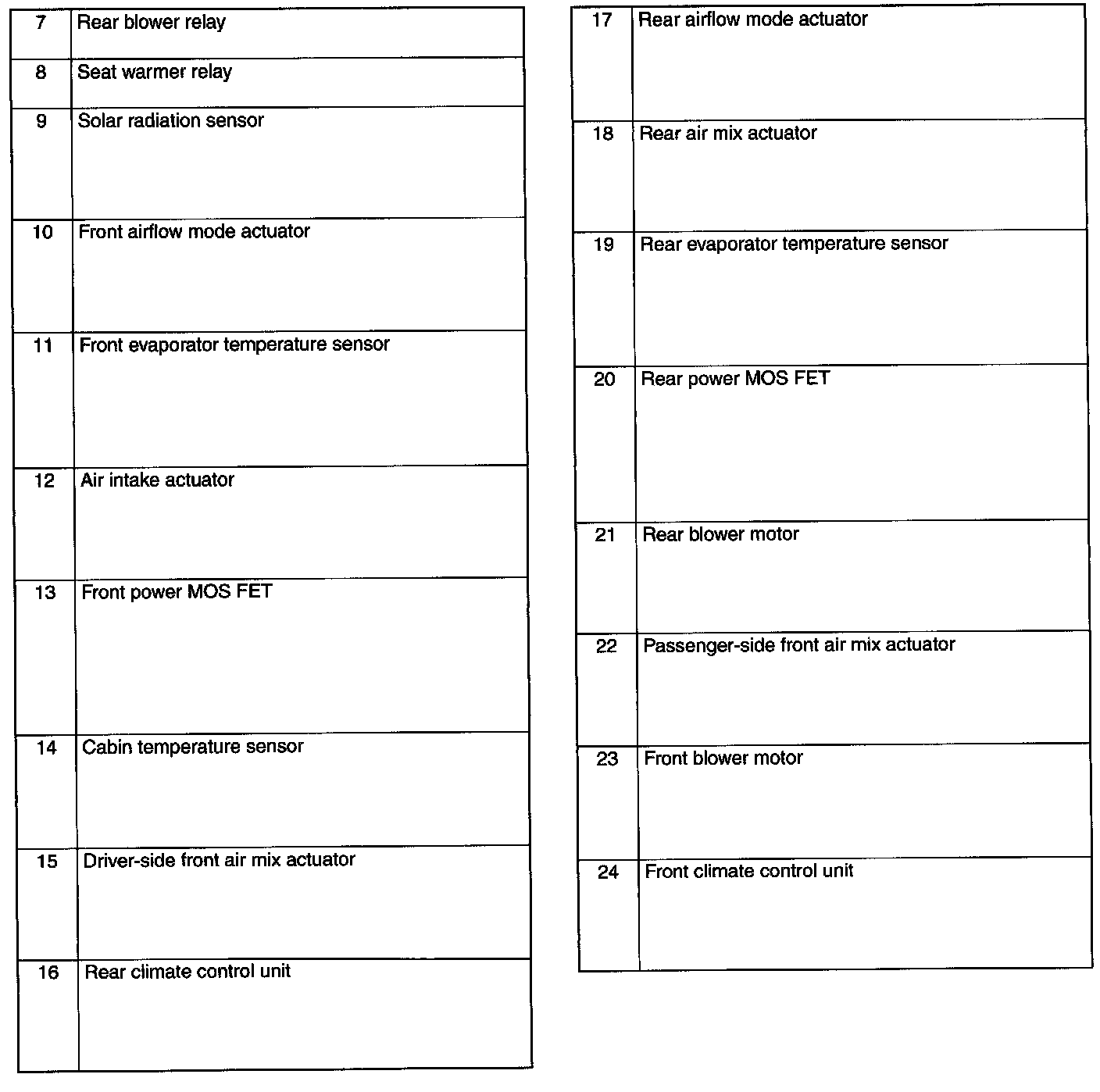

HVAC Control System Location Index (Part-2):
