Mazda Truck
>>
2007
>>
CX-9 V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Seat Track Position Sensor
Seat Track Position Sensor

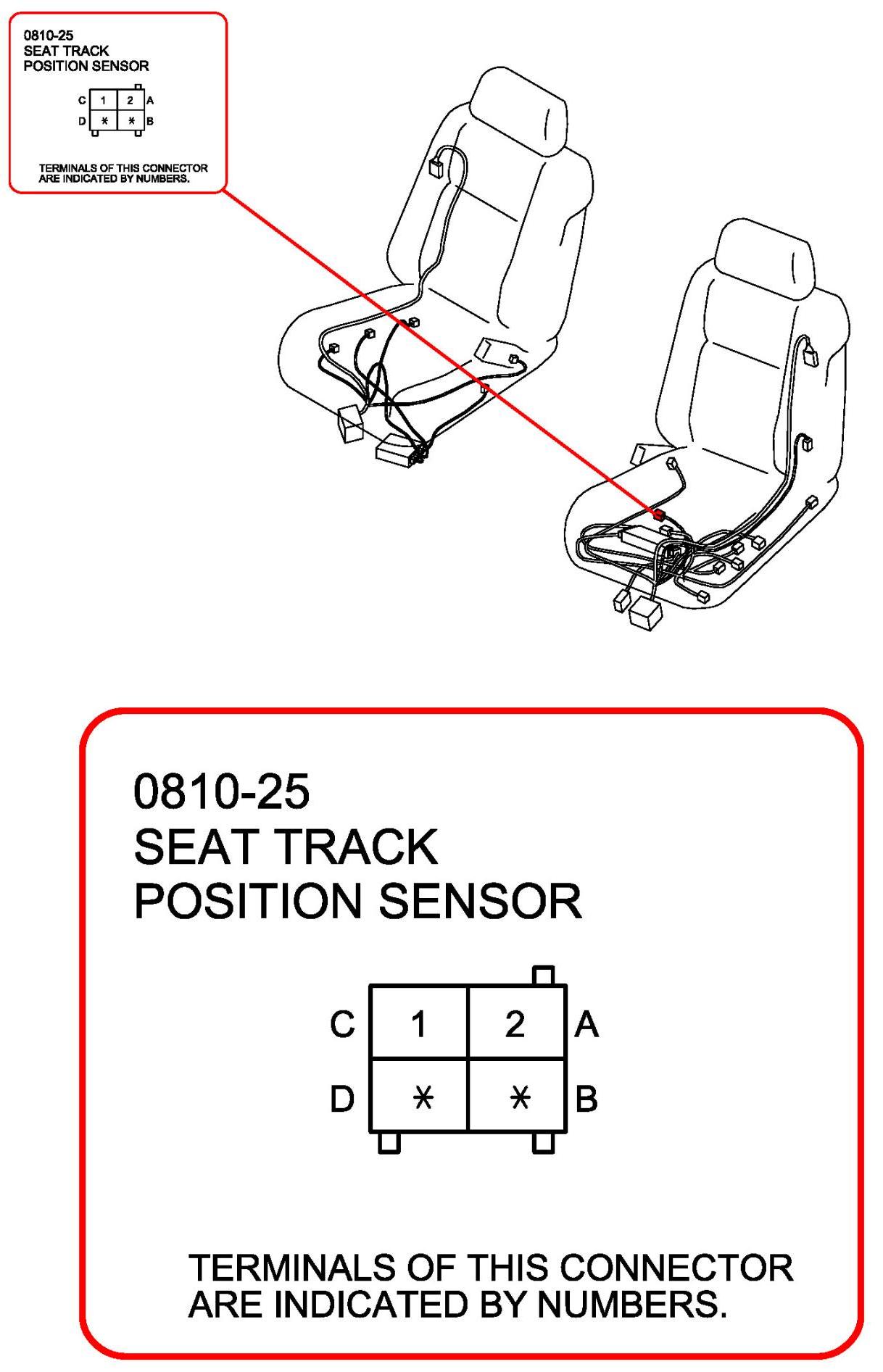

Seat Track Position Sensor:

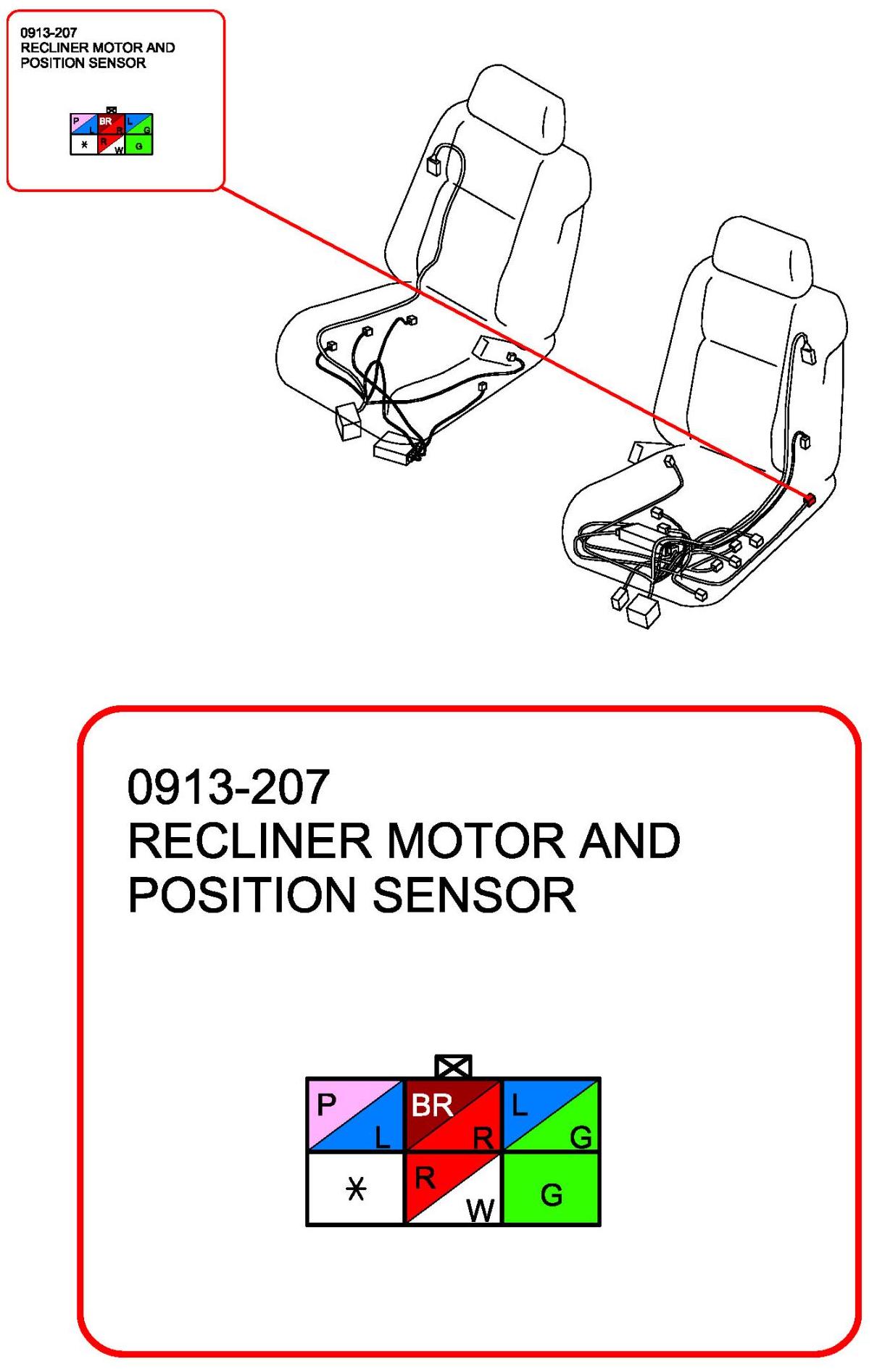

Recliner Motor And Position Sensor:

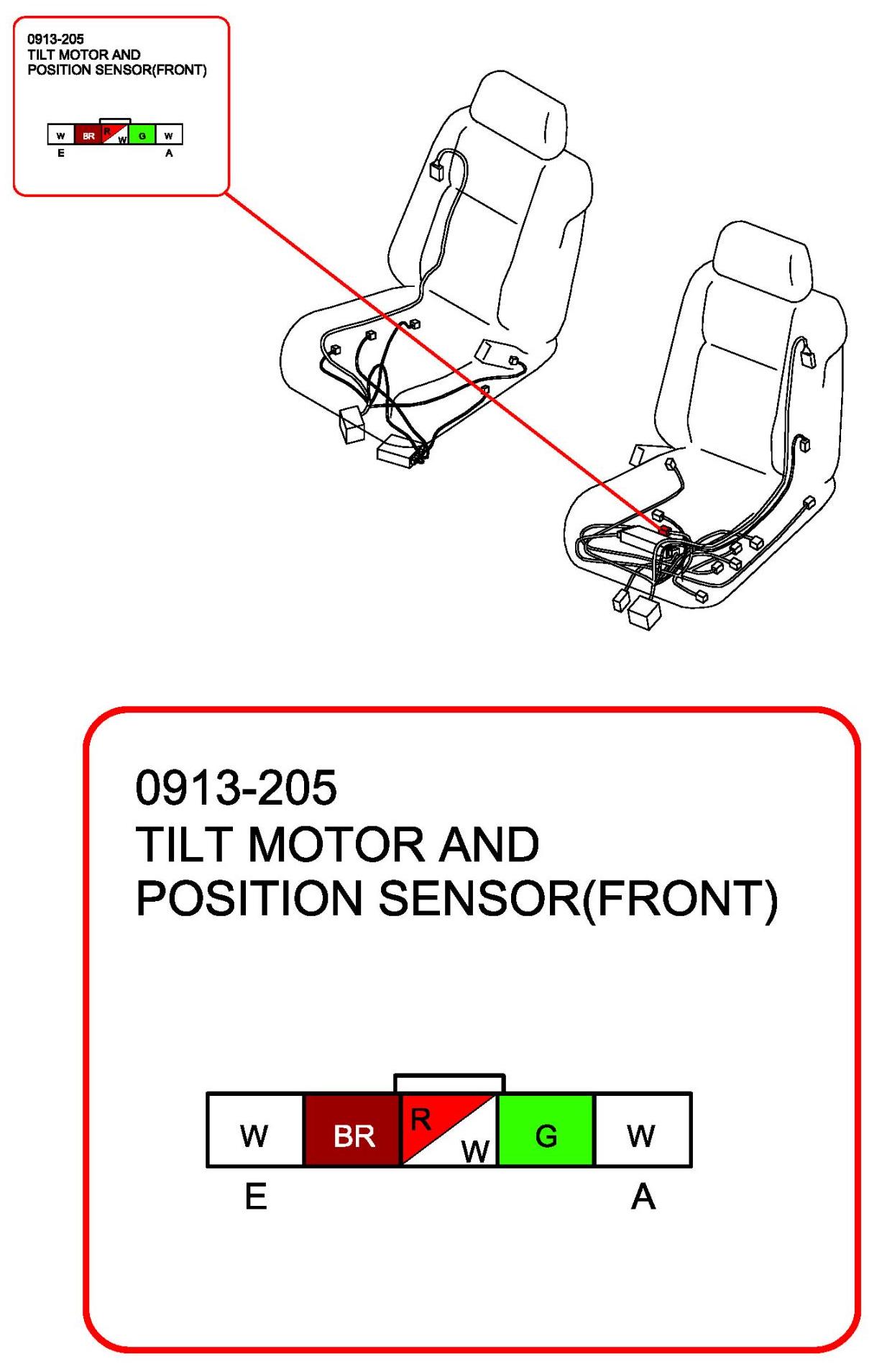

Tilt Motor And Position Sensor(Front):

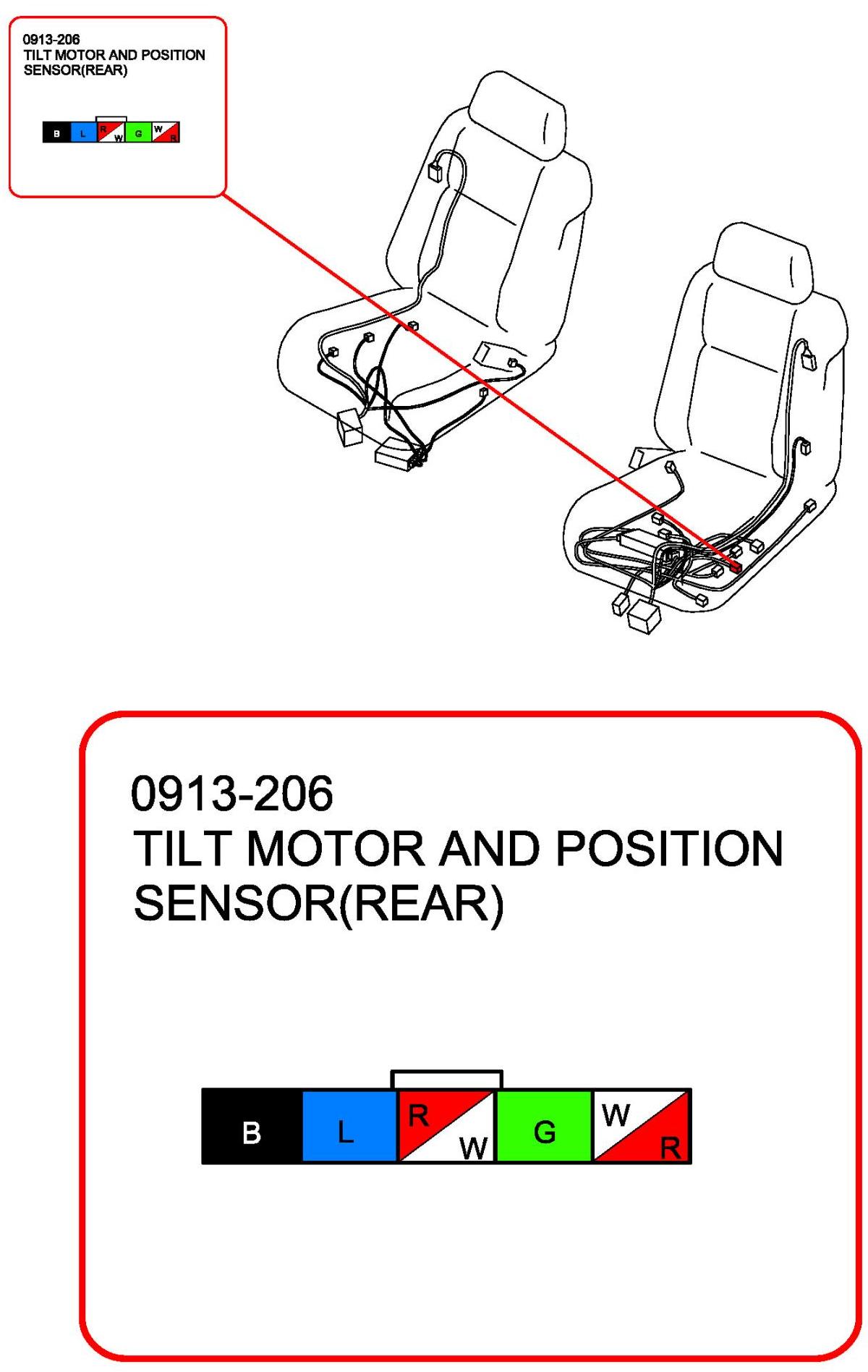

Tilt Motor And Position Sensor(Rear):

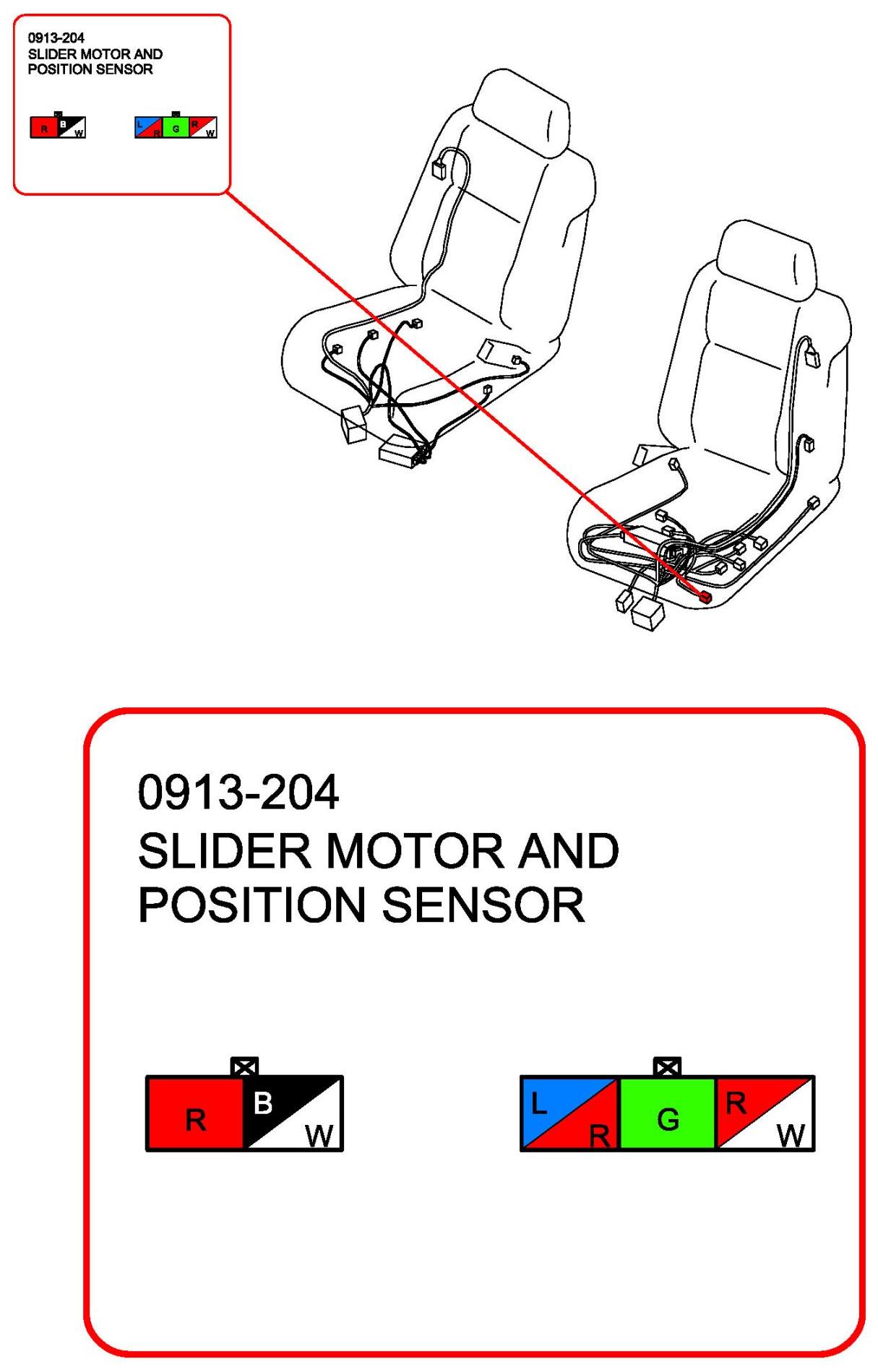

Slider Motor And Position Sensor:
