PLG Front Switch/PLG Front Switch Illumination
PLG Front Switch/PLG Front Switch Illumination

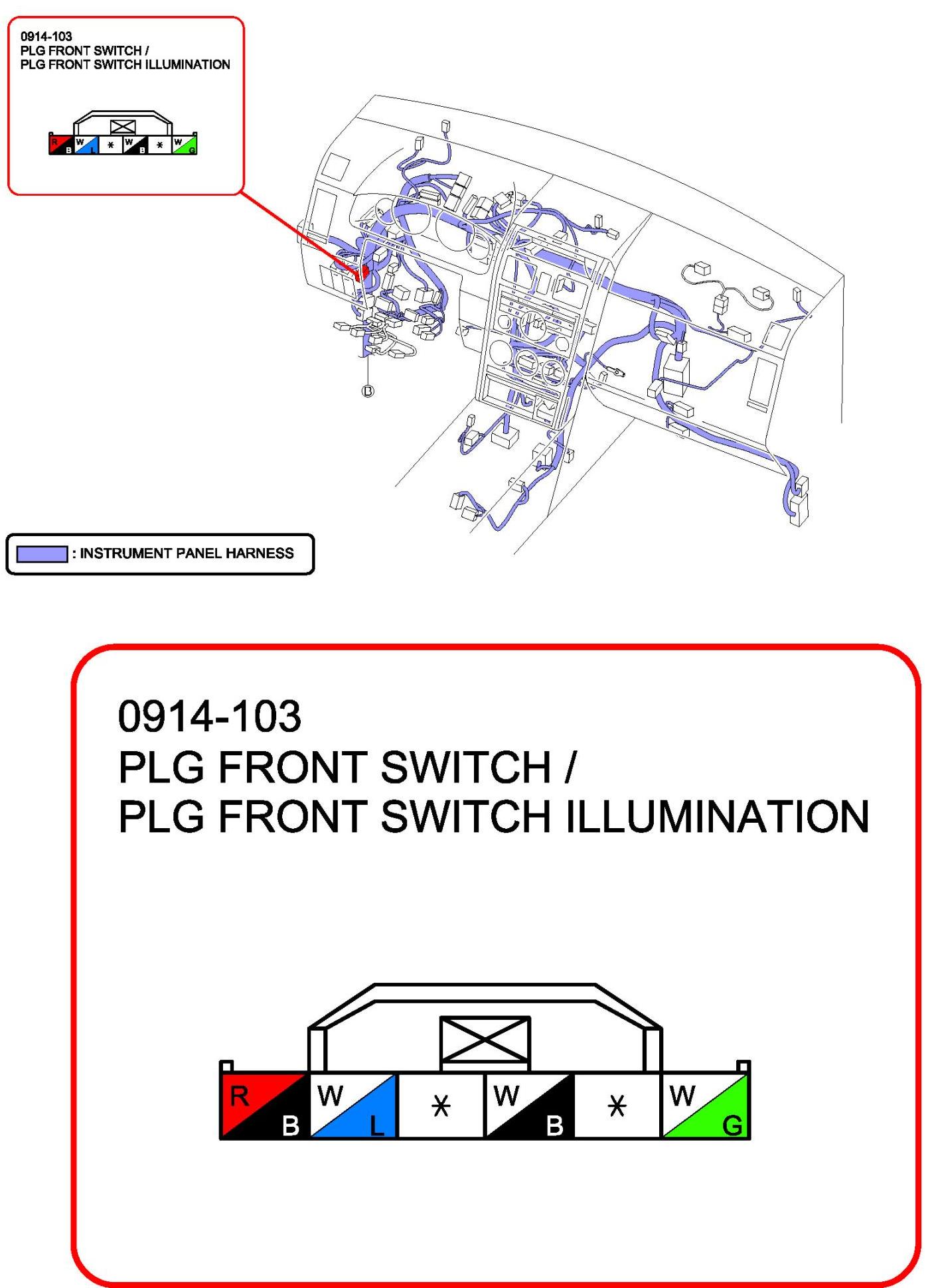

PLG Front Switch/PLG Front Switch Illumination:
Request Switch LF:
Request Switch RF:
Liftgate Latch Switch:
Request Switch(Liftgate):

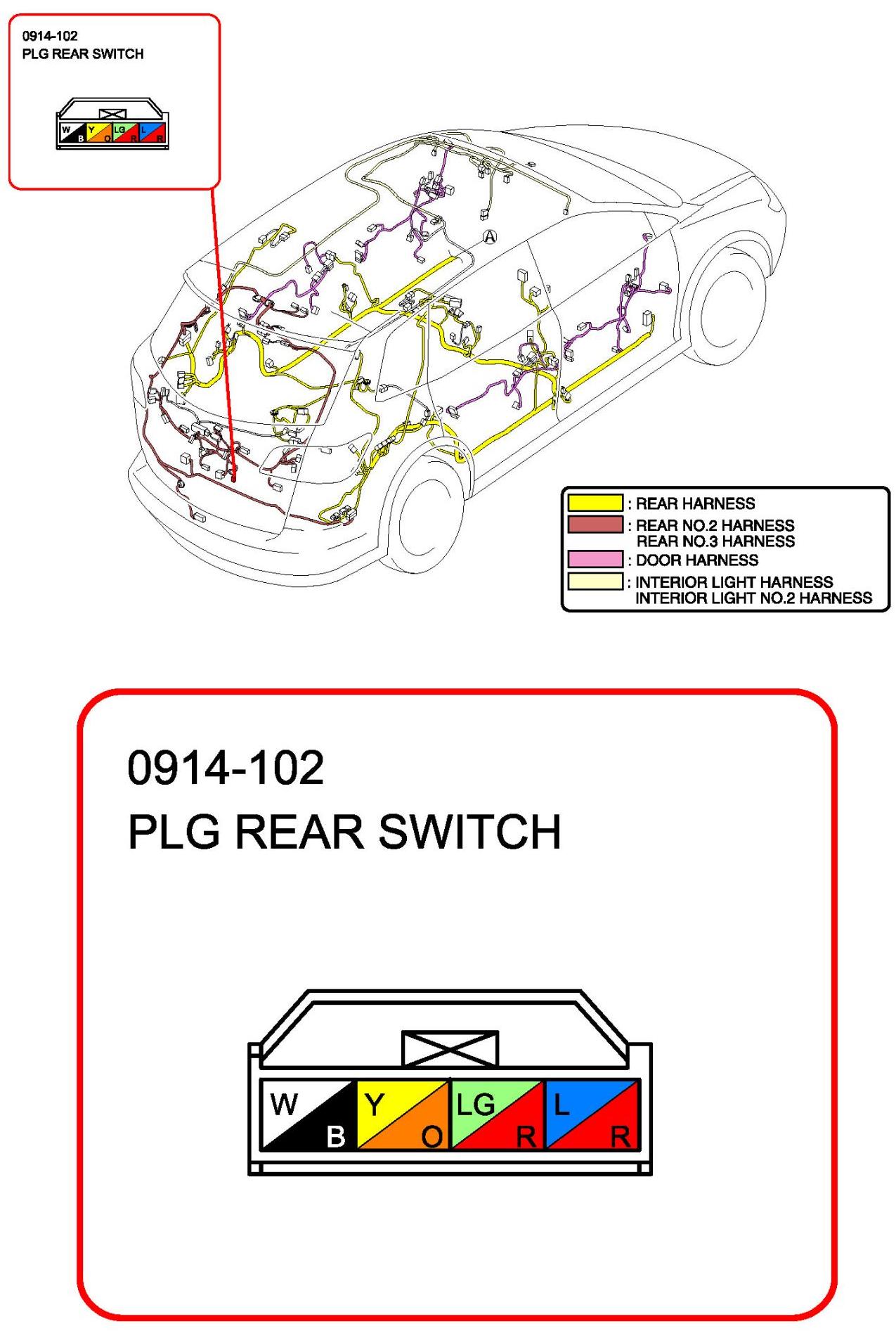

PLG Rear Switch:
