Home
>>
Mazda Truck
>>
2006
>>
Tribute 2WD L4-2.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Air Duct
Air Duct

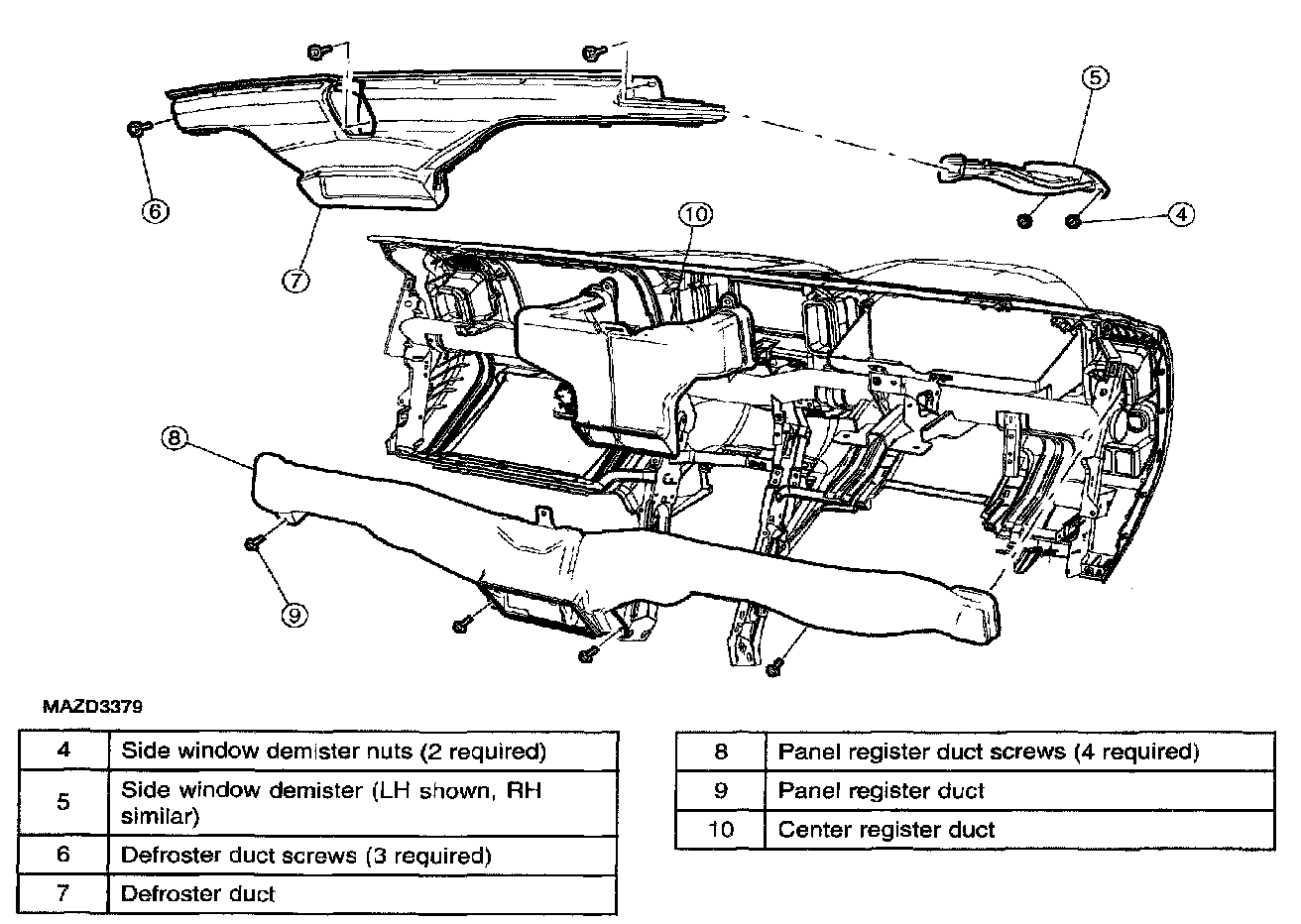

Center Register Duct Part 1:

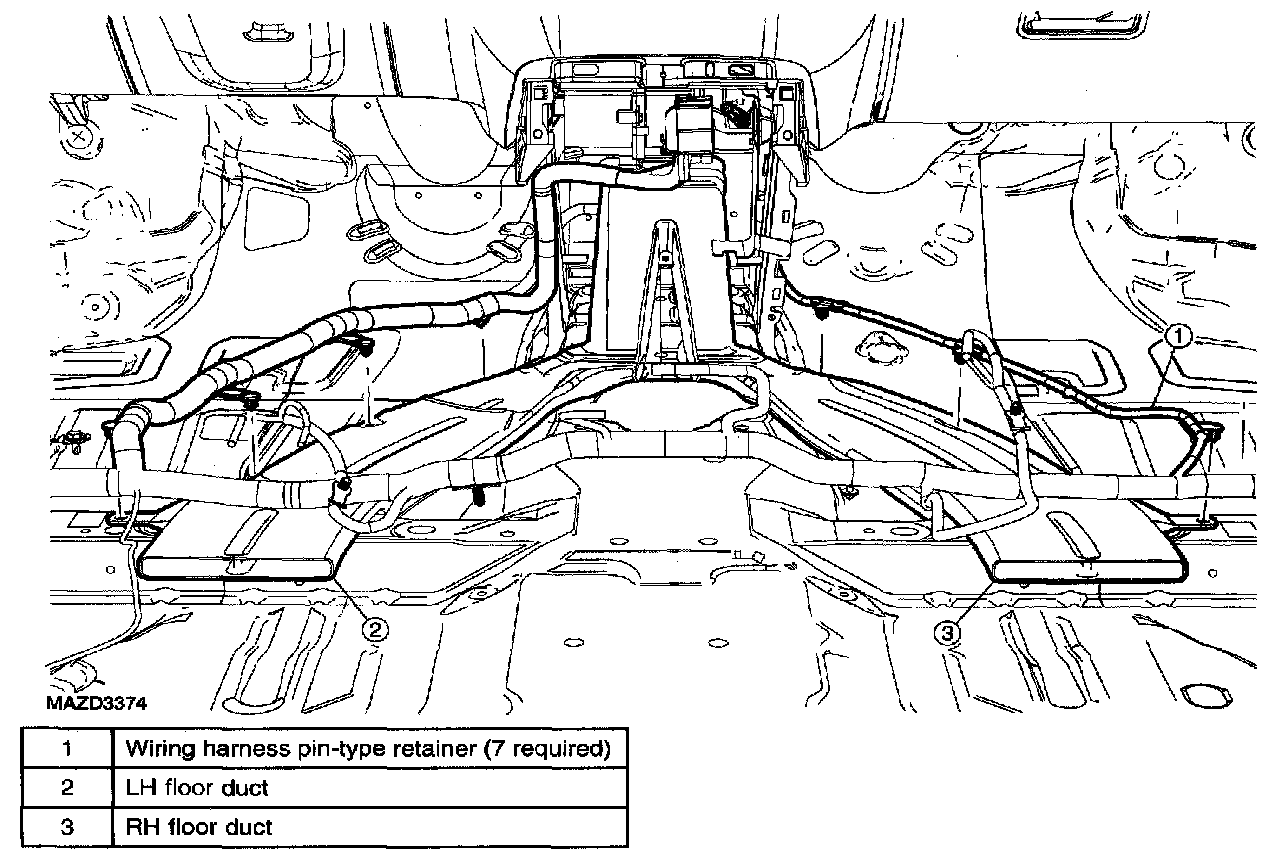

Center Register Duct Part 2:
