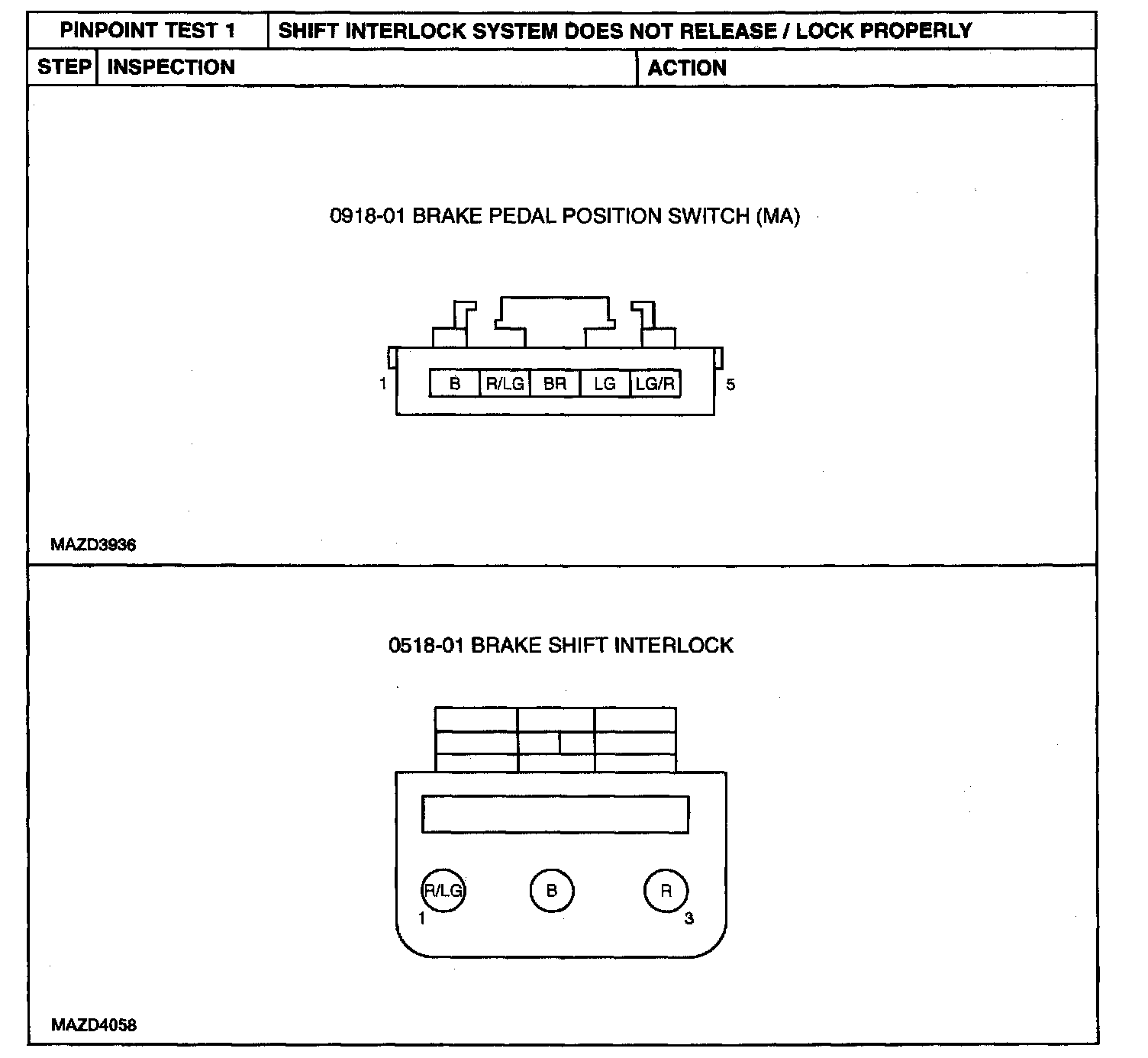

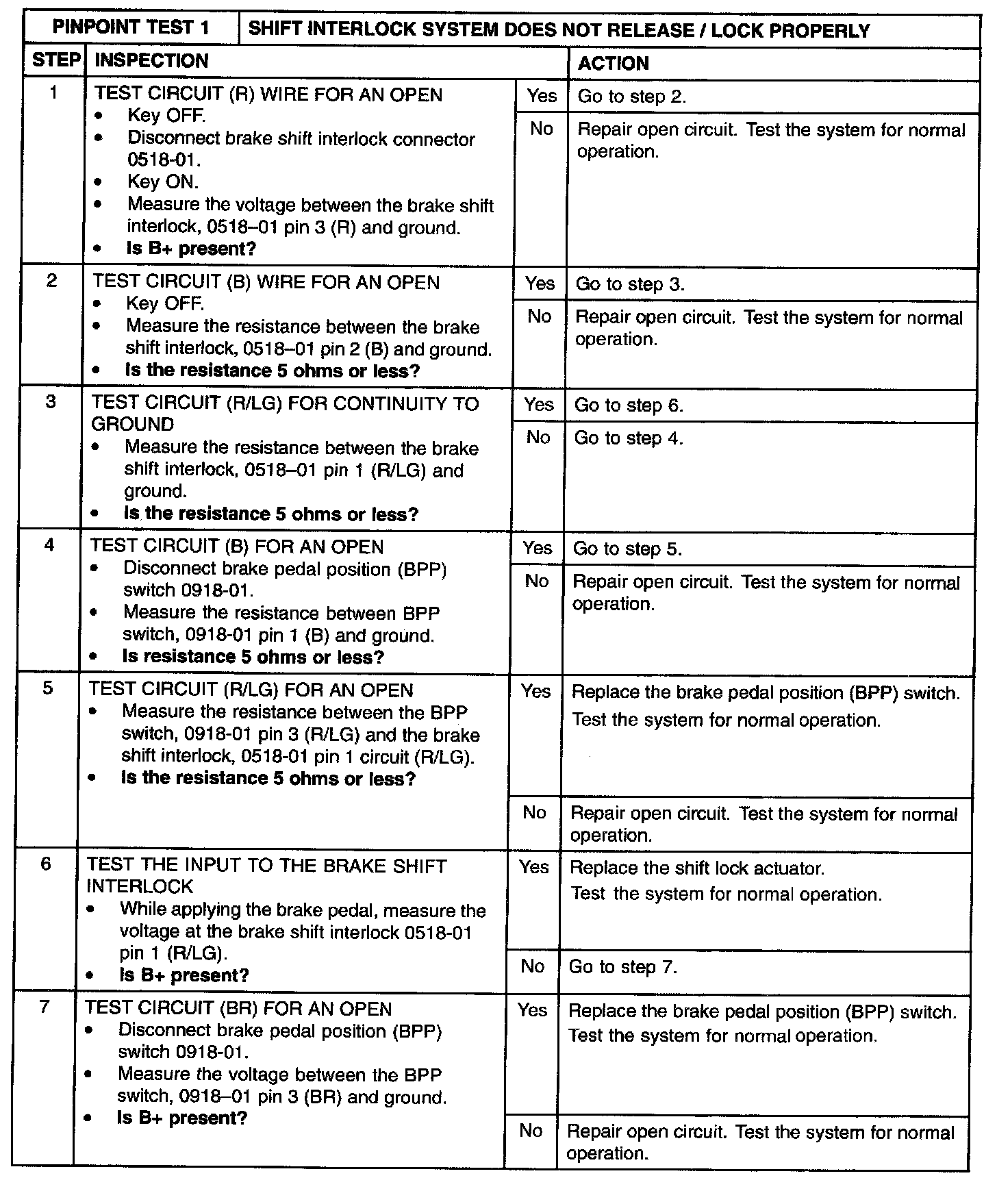

Automatic Transmission External Controls Pinpoint Test 1: Shift Interlock System Does Not Release / Lock Properly








AUTOMATIC TRANSMISSION EXTERNAL CONTROLS PINPOINT TEST 1: SHIFT INTERLOCK SYSTEM DOES NOT RELEASE / LOCK PROPERLY
