Home >> Mazda Truck >> 2005 >> Tribute 4WD L4-2.3L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Restraints and Safety Systems >> Air Bag Control Module >> Locations >> Connector Locations >> Passenger Side Air Bag Module

Passenger Side Air Bag Module

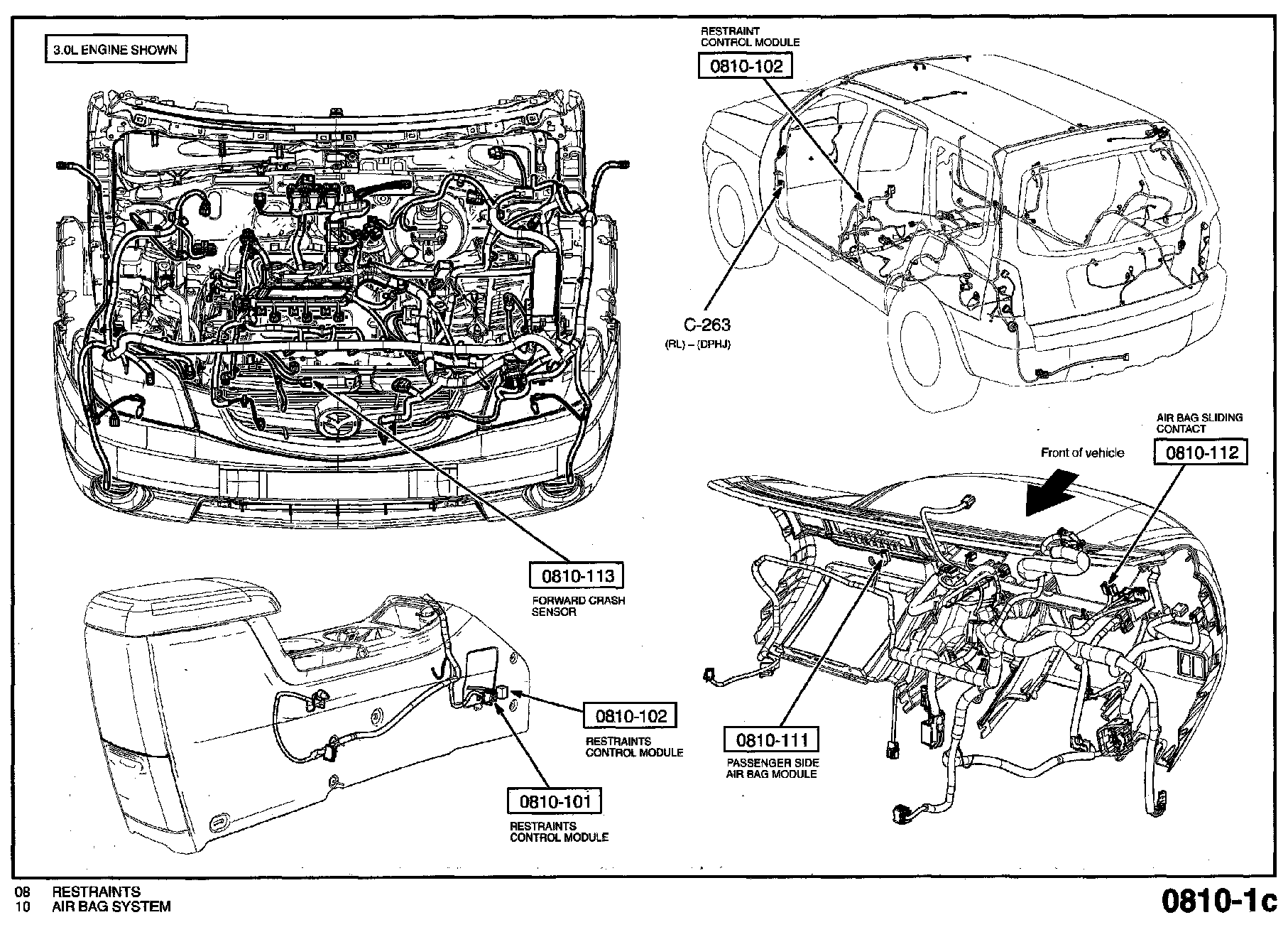

Routing View 0810-1c:
