Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mazda Truck
>>
2004
>>
B2300 L4-2.3L VIN D
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>

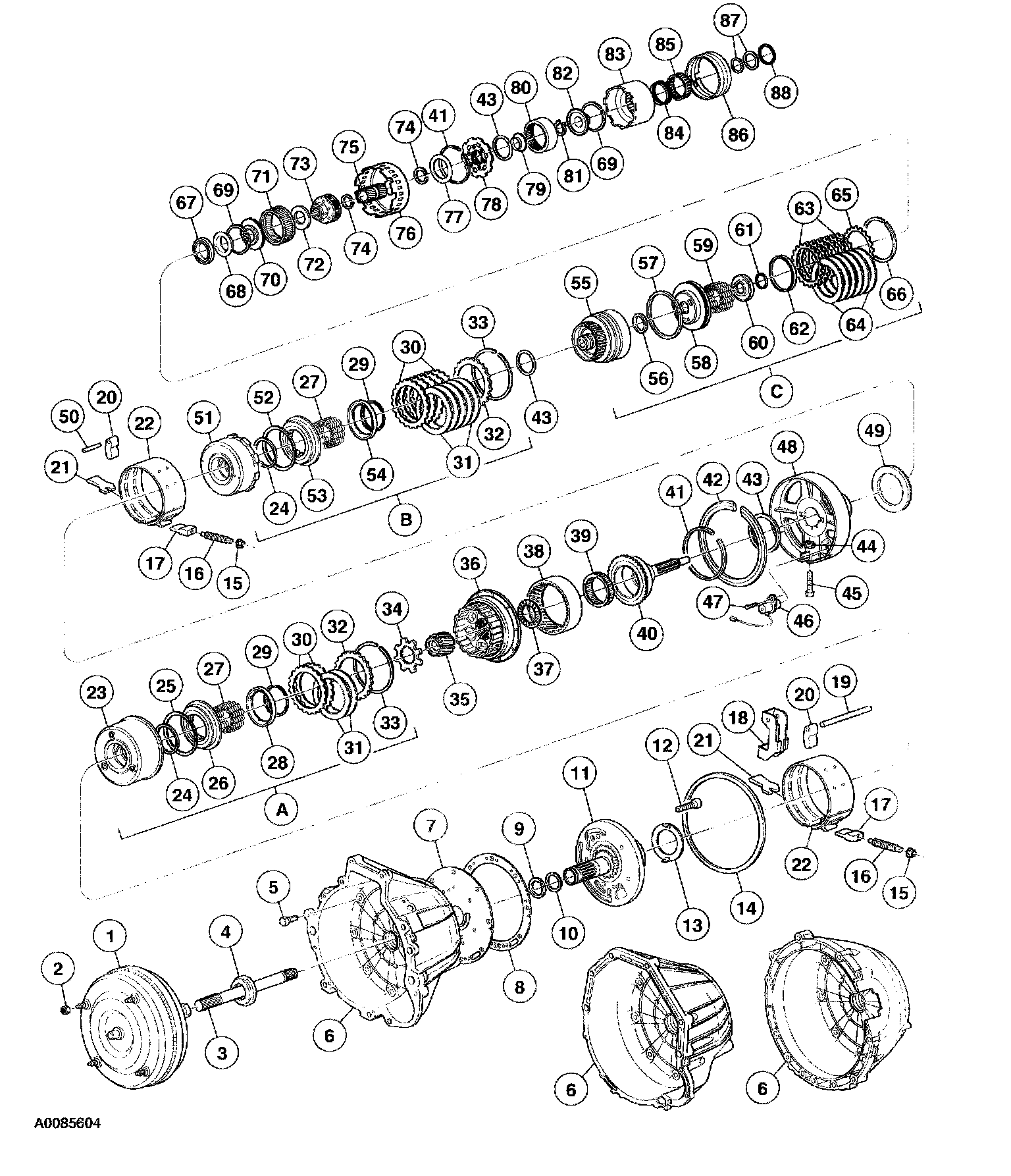

Disassembled View

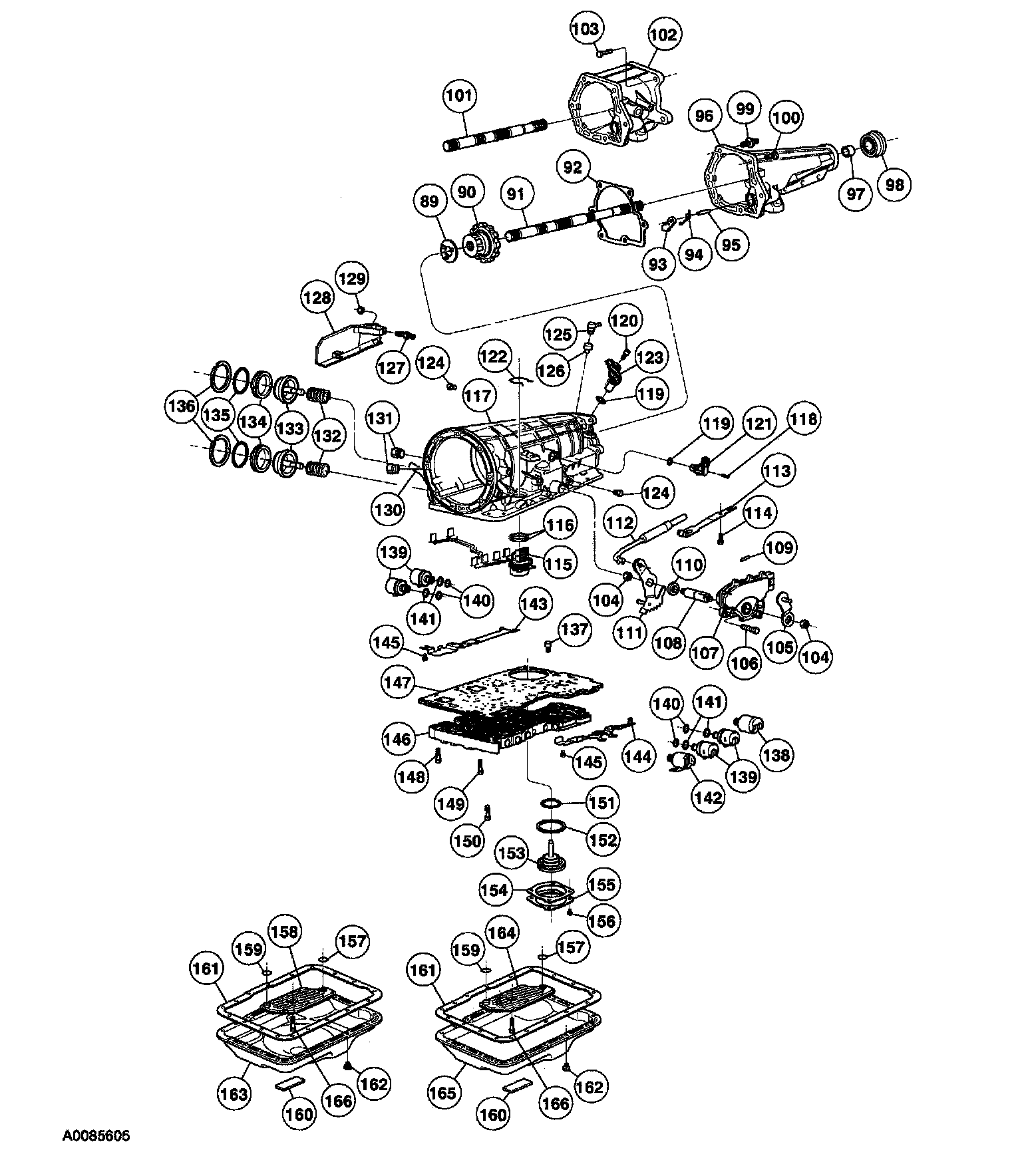

Disassembled View

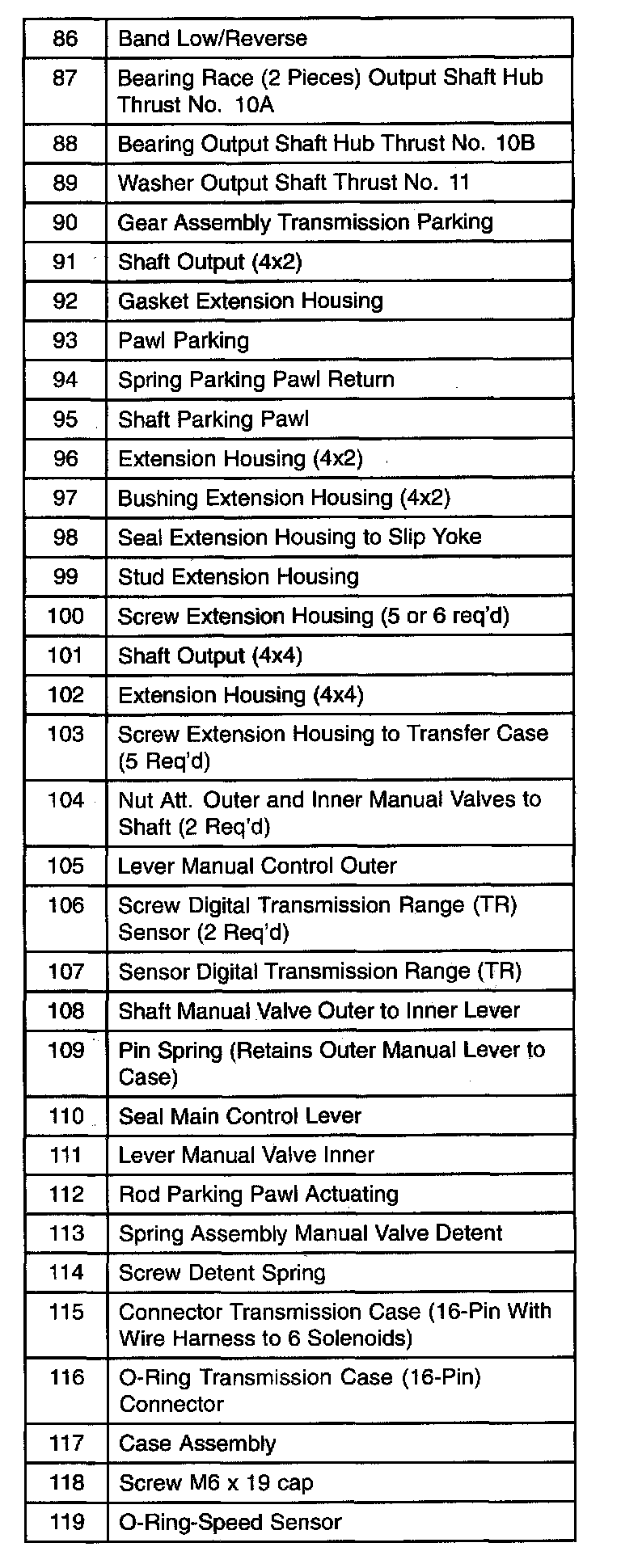

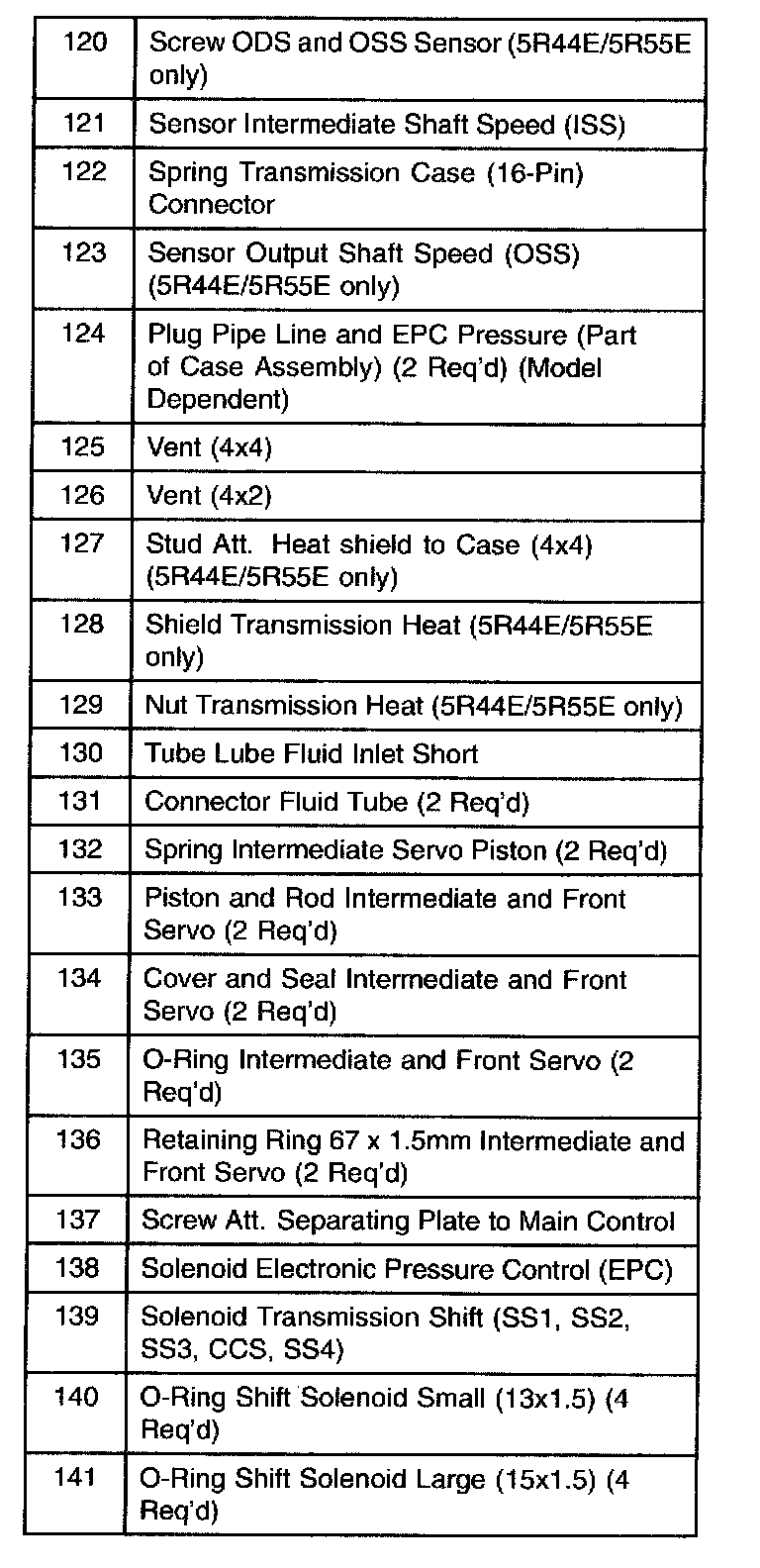

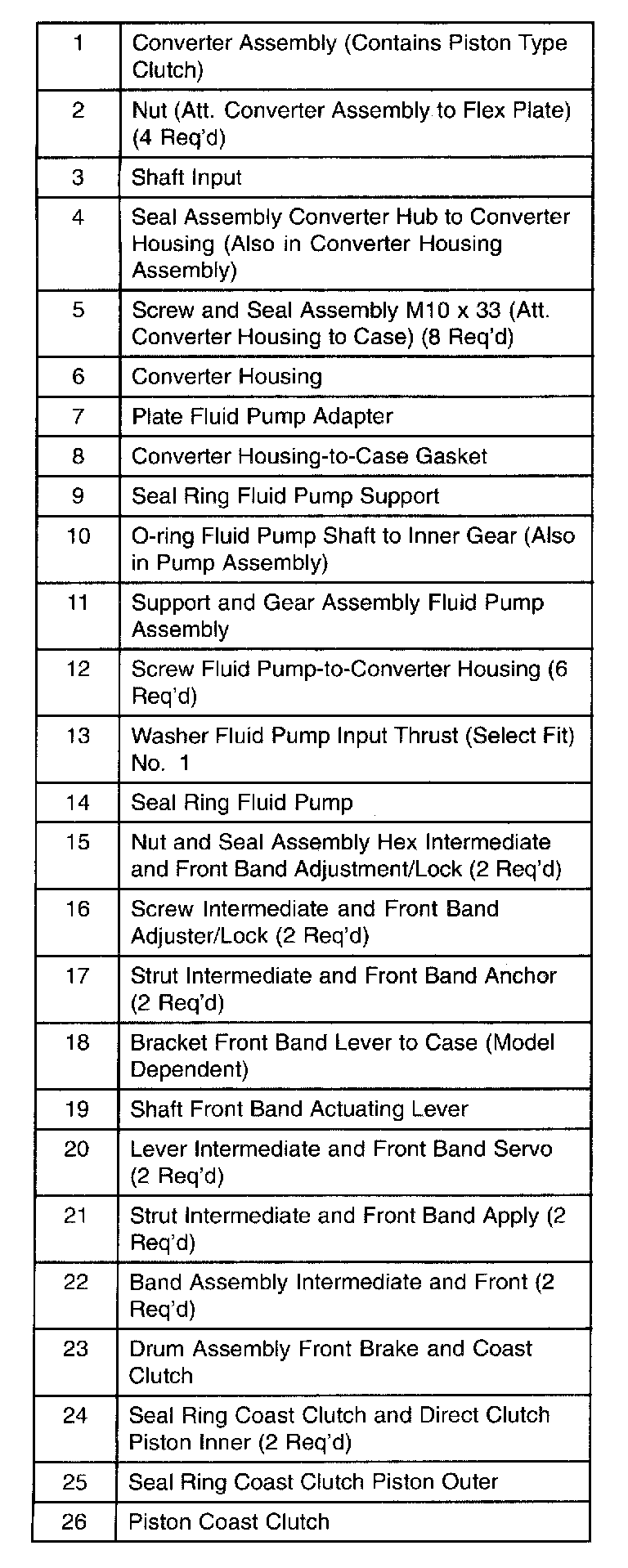

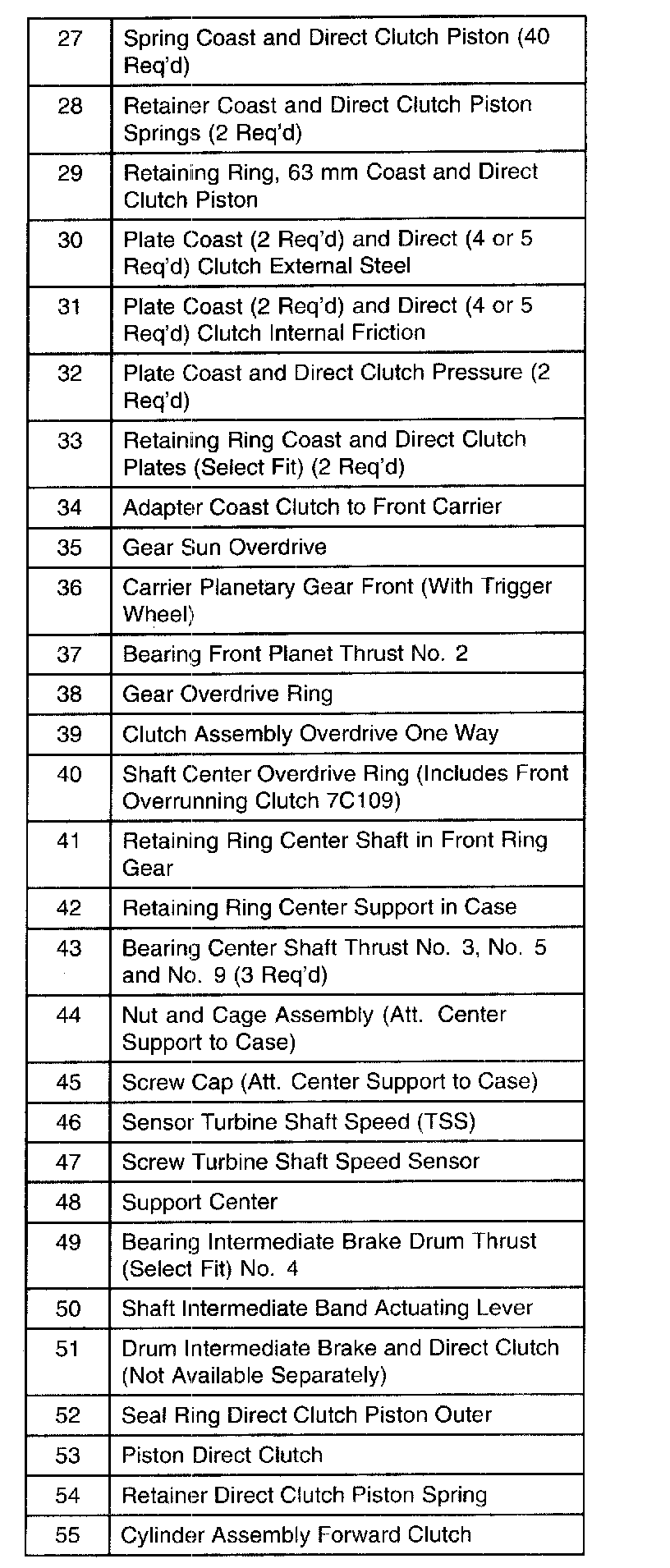

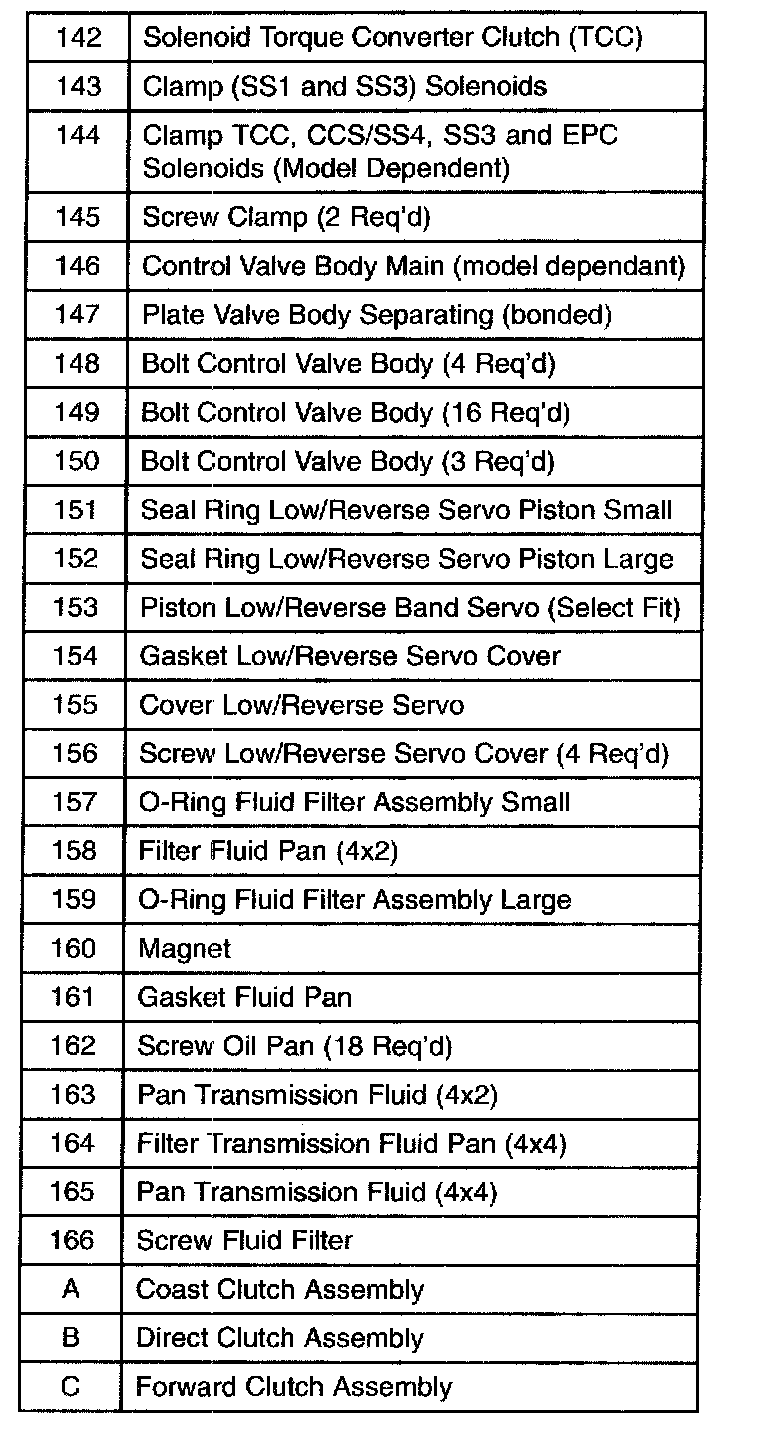

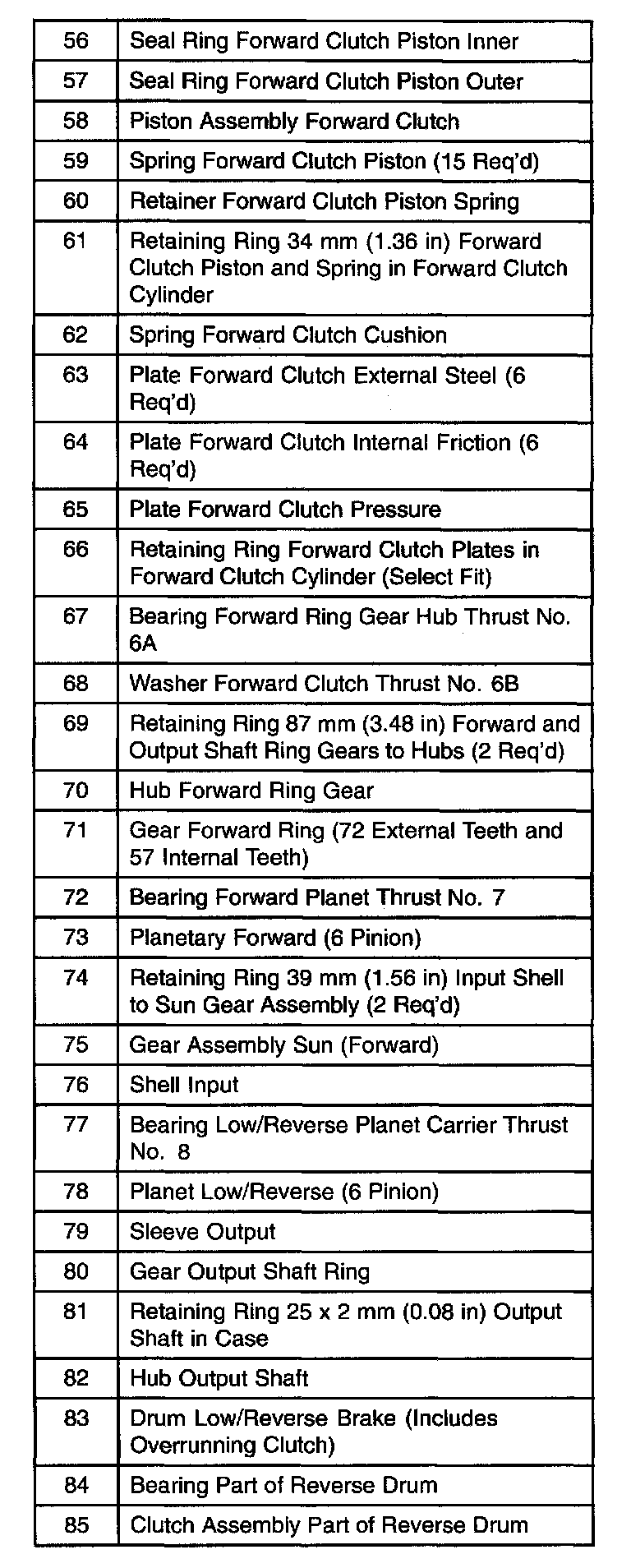

AUTOMATIC TRANSMISSION COMPONENTS
Disassembled View
