Mazda Truck
>>
1996
>>
MPV 2WD V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Locations
>>
Connector Locations
>>
Engine Control System (1/4)
Engine Control System (1/4)

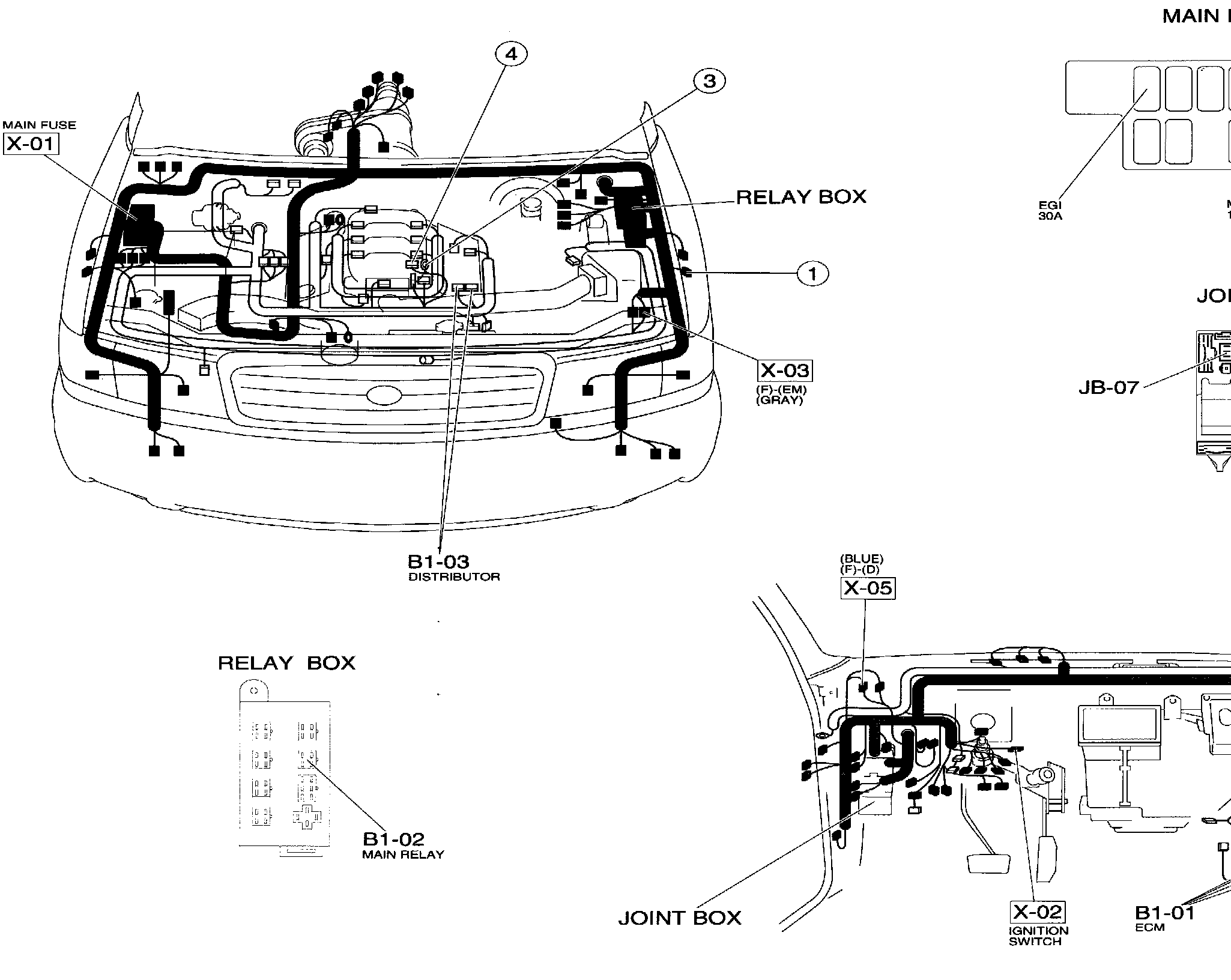

���=Connector Locations:
