Mazda Truck
>>
1994
>>
MPV L4-2606cc 2.6L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Central Control Module
>>

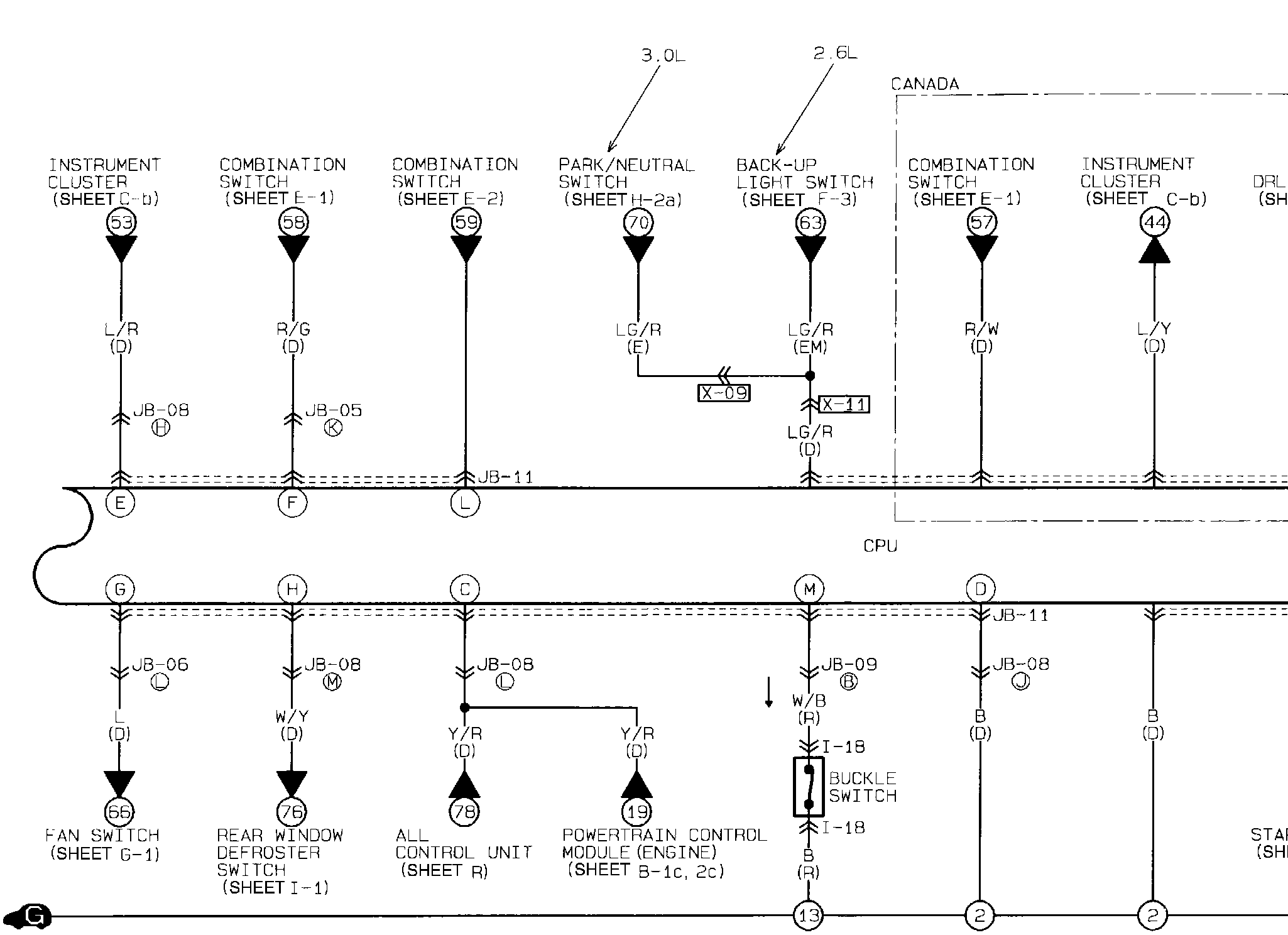

Central Processing Unit (CPU) (2/2)
Central Processing Unit (CPU) (2/2)
@��Central Processing Unit (CPU) (2/2):
