Ignition System, Engine Control System
Ignition System, Engine Control System

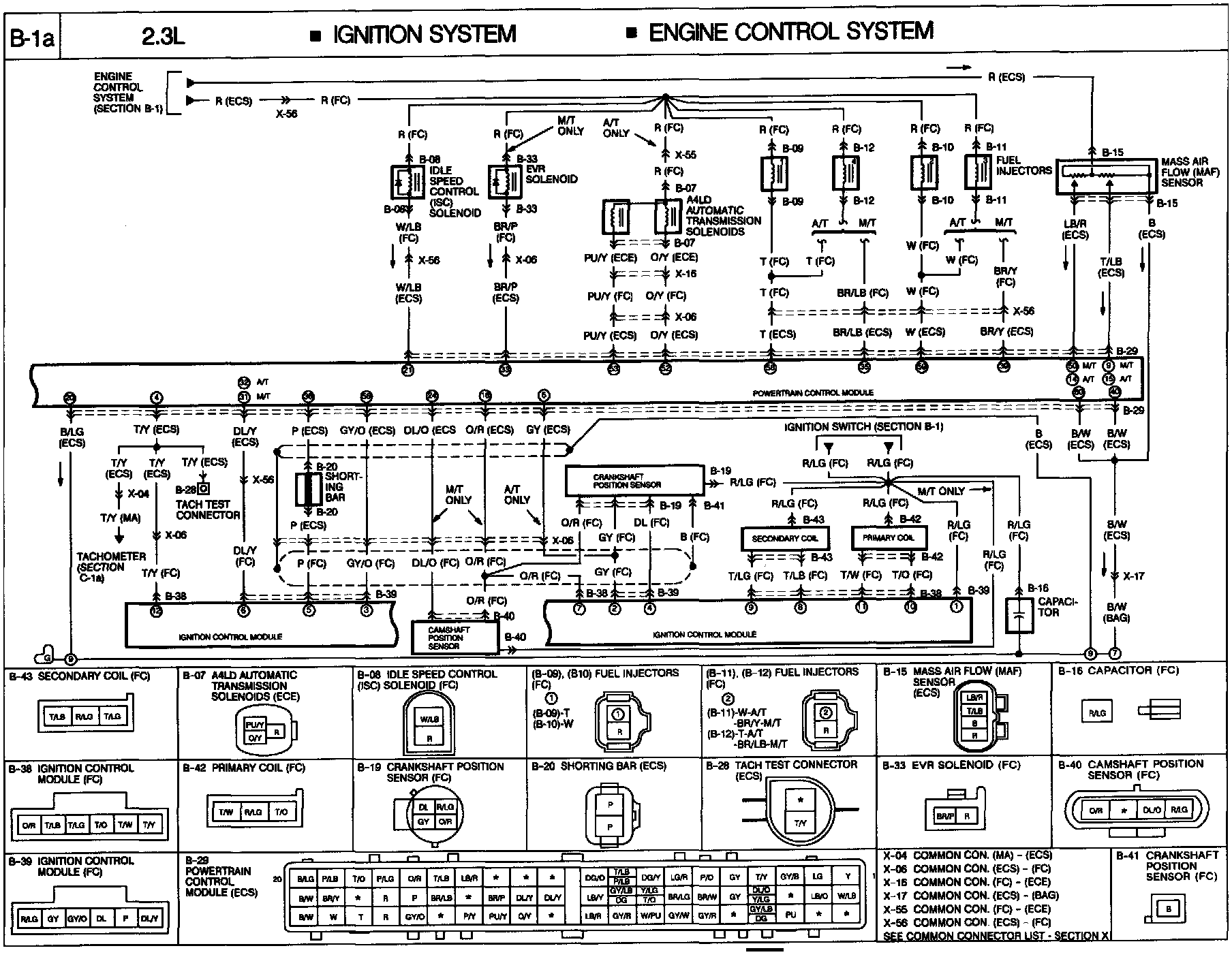

Ignition Wiring Schematic:

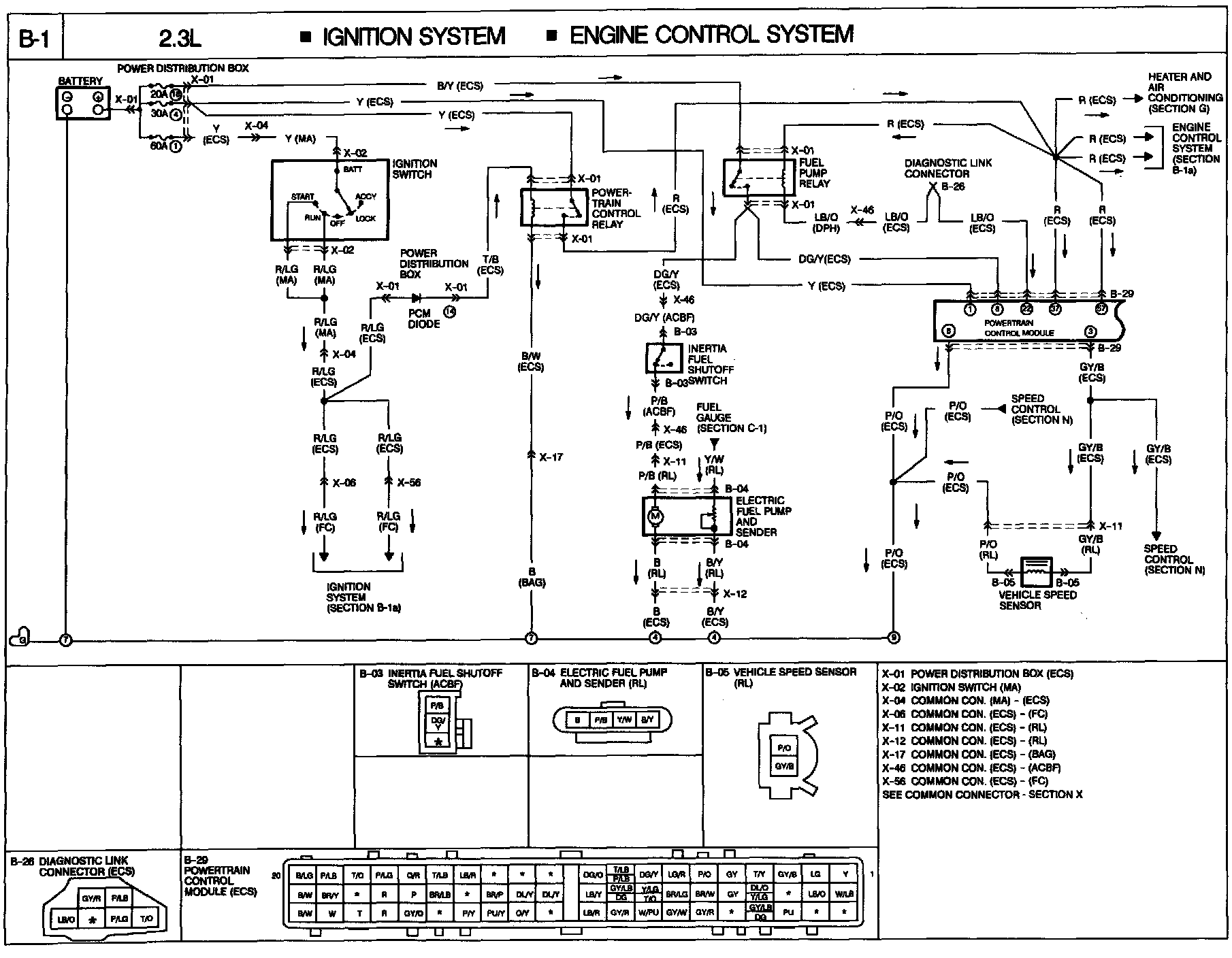

Ignition Wiring Schematic:
