Mazda Truck
>>
1992
>>
MPV 2WD V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Timer/Control Unit, Accessory Control
Timer/Control Unit, Accessory Control

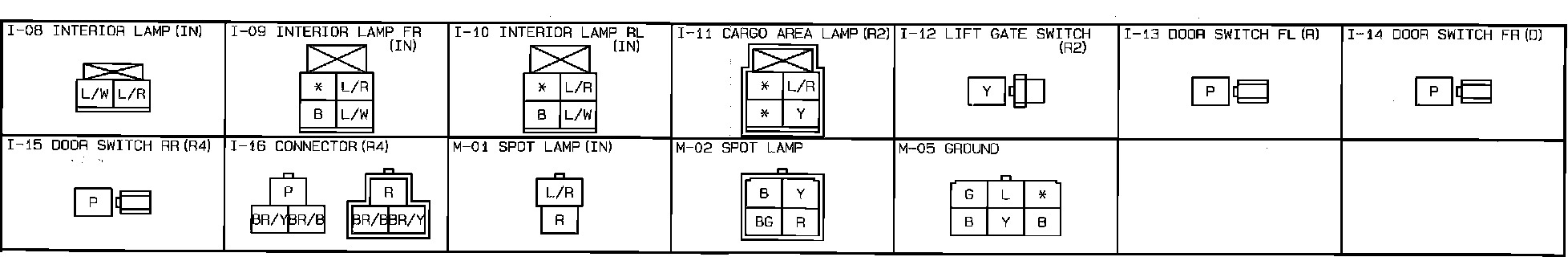

Interior And Spot Lamps. Central Processing Unit (CPU). Connector Identification:
Central Processing Unit (CPU). Connector Identification:
