Mazda Truck
>>
1989
>>
MPV L4-2606cc 2.6L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Automatic Transmission/Transaxle
>>
Control Module, A/T
Control Module, A/T

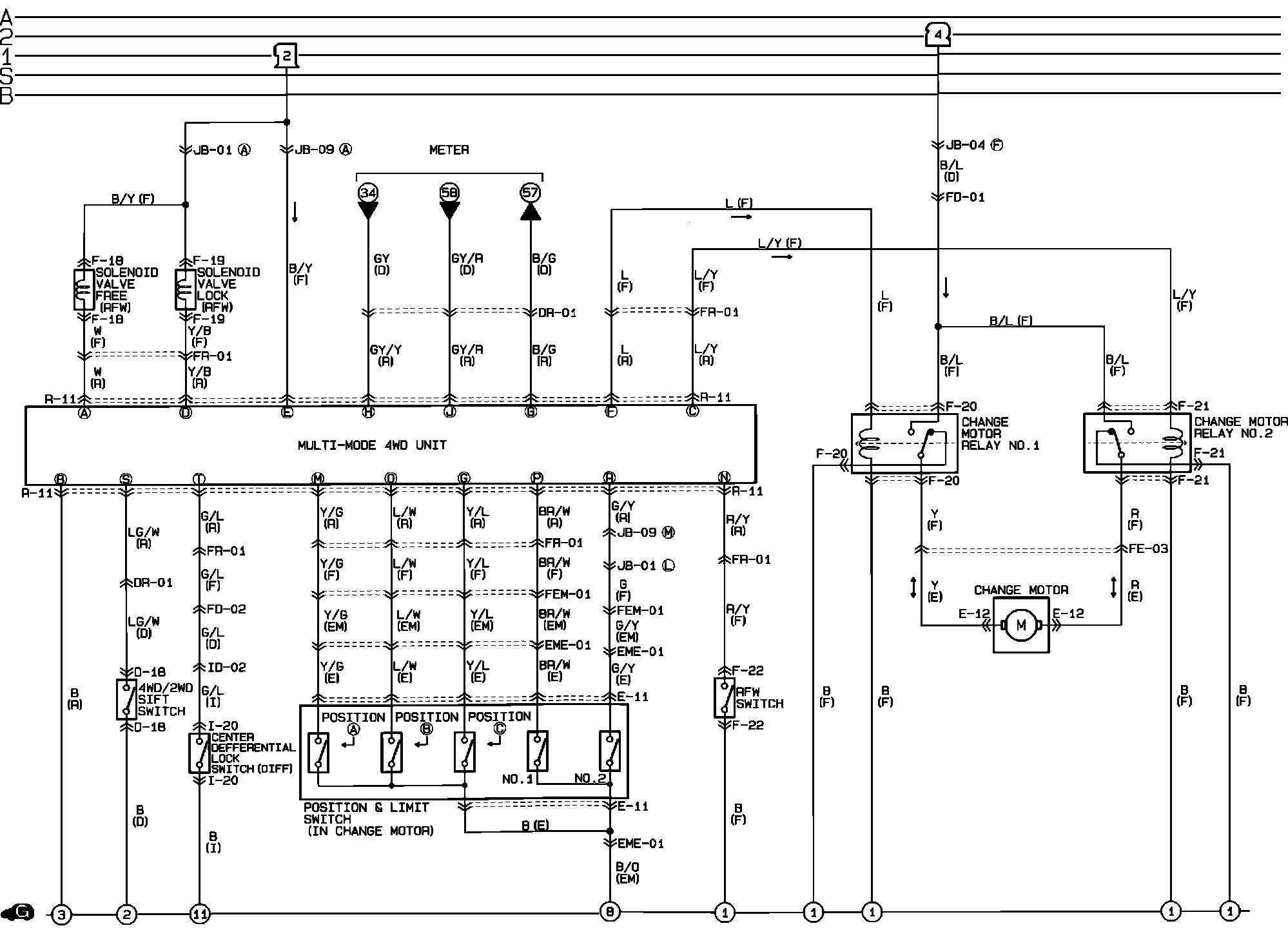

Multi-Mode Selection. 4WD:
