Lincoln
>>
2003
>>
Town Car V8-4.6L SOHC VIN W
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Transmission Position Sensor/Switch
>>
Diagrams
>>
Diagnostic Connector View
Diagnostic Connector View

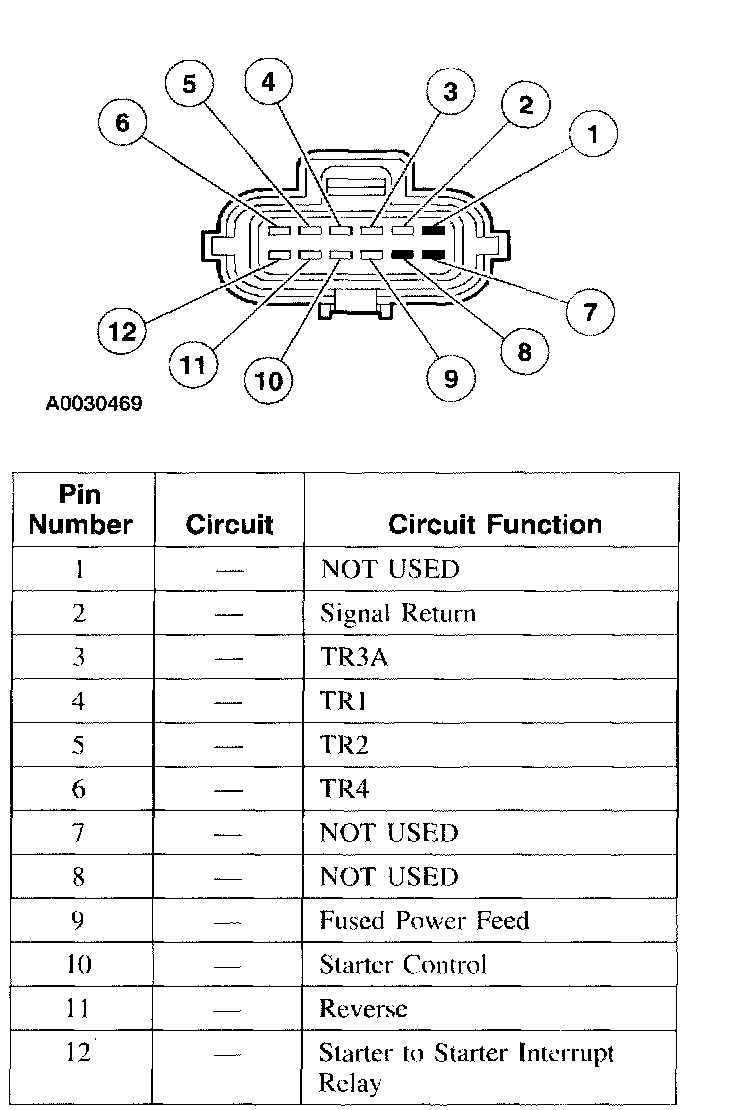

Digital Transmission Range (TR) Sensor Connector
