Test A: No Communication With the Module - Unable to Perform On-Demand Self-on Driver Door Module

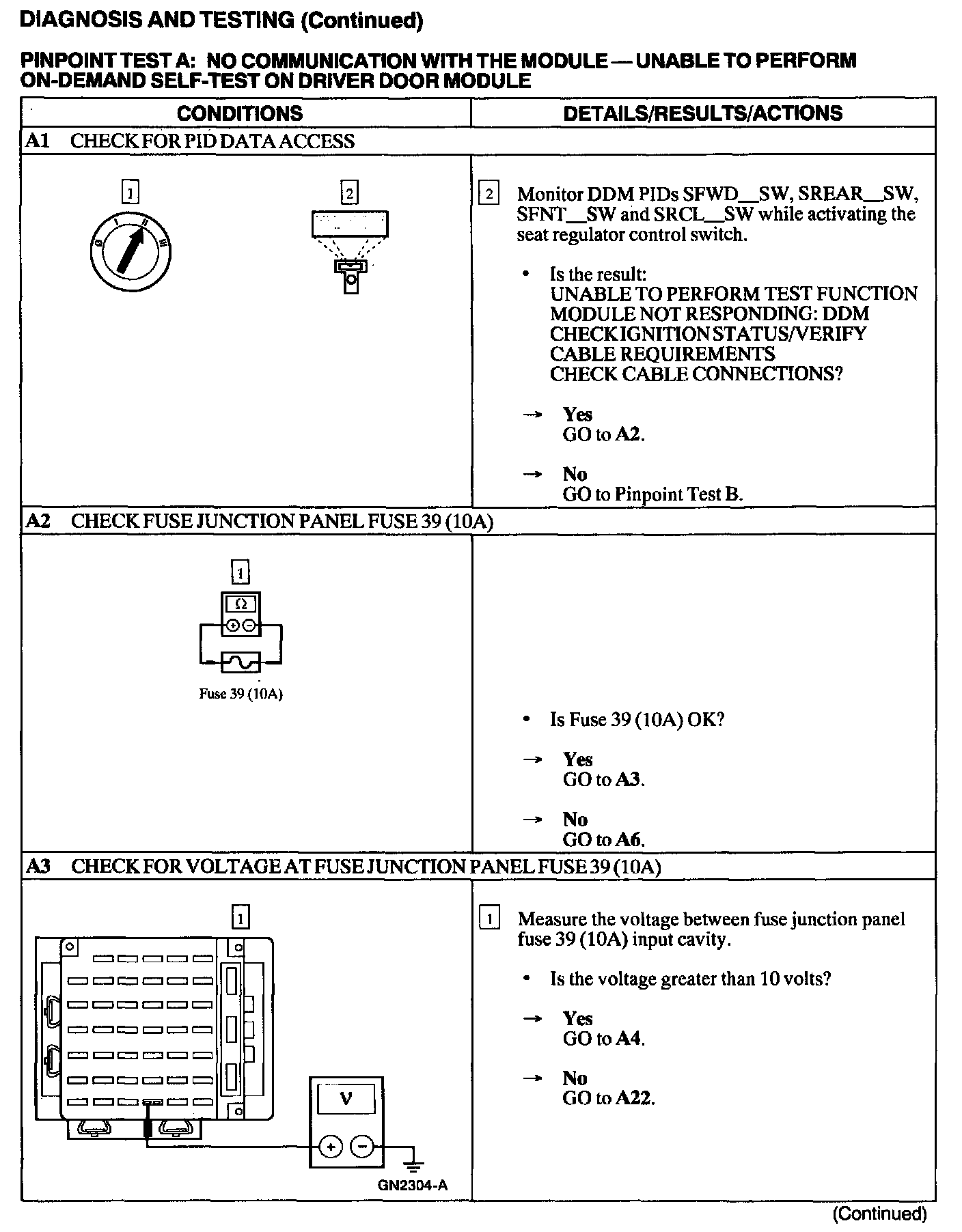

A1 - A3:

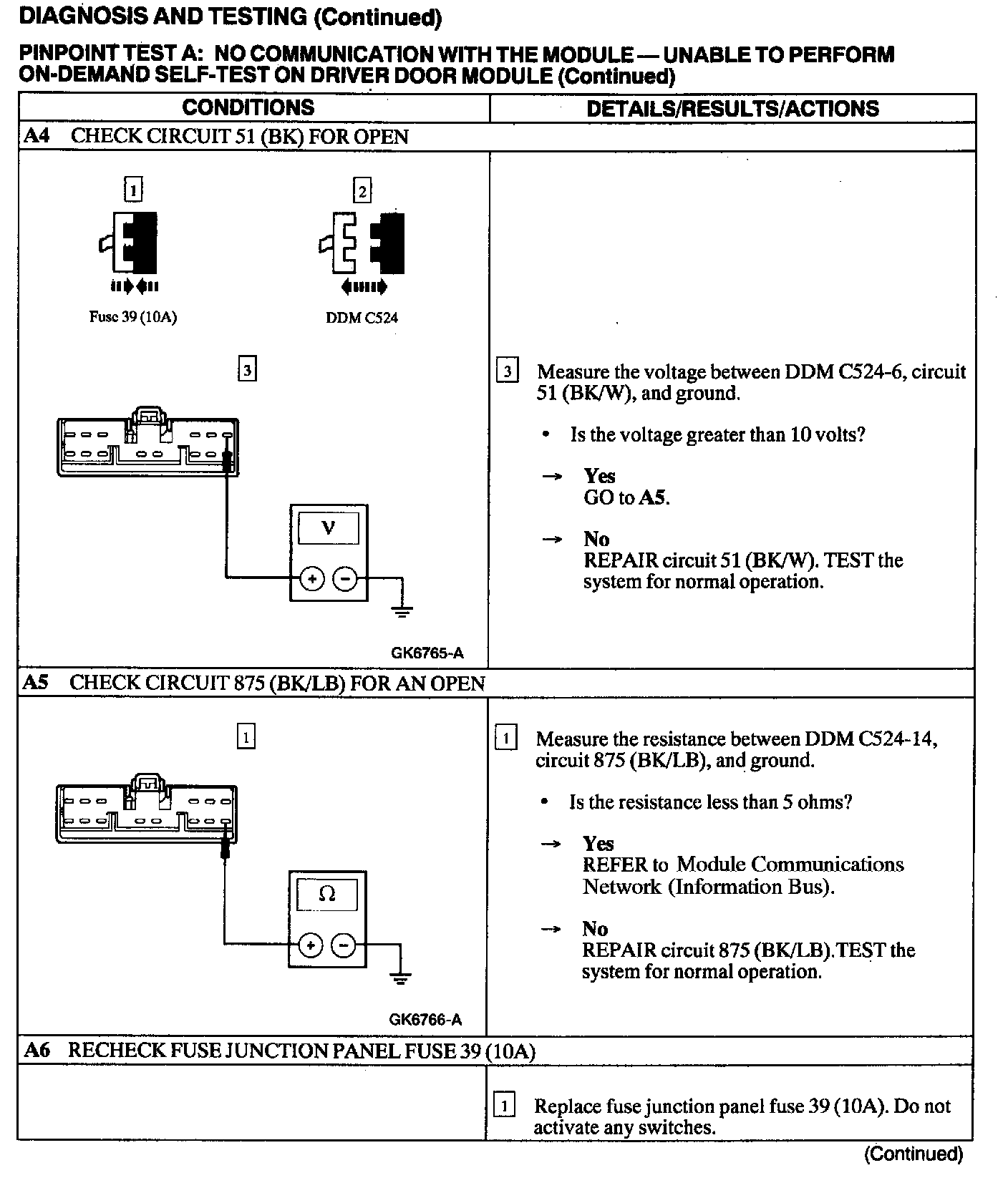

A4 - A6:

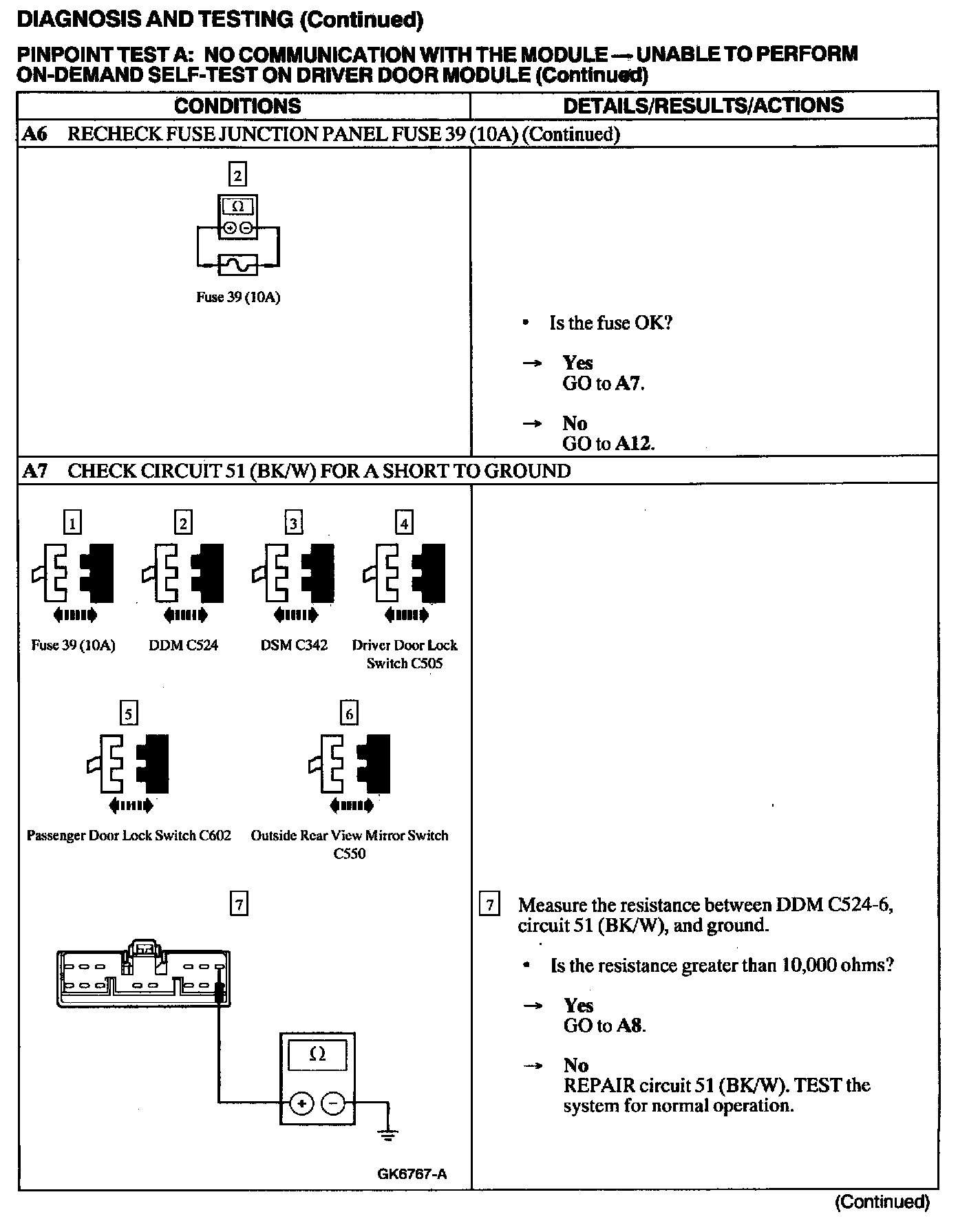

A6 - A7:

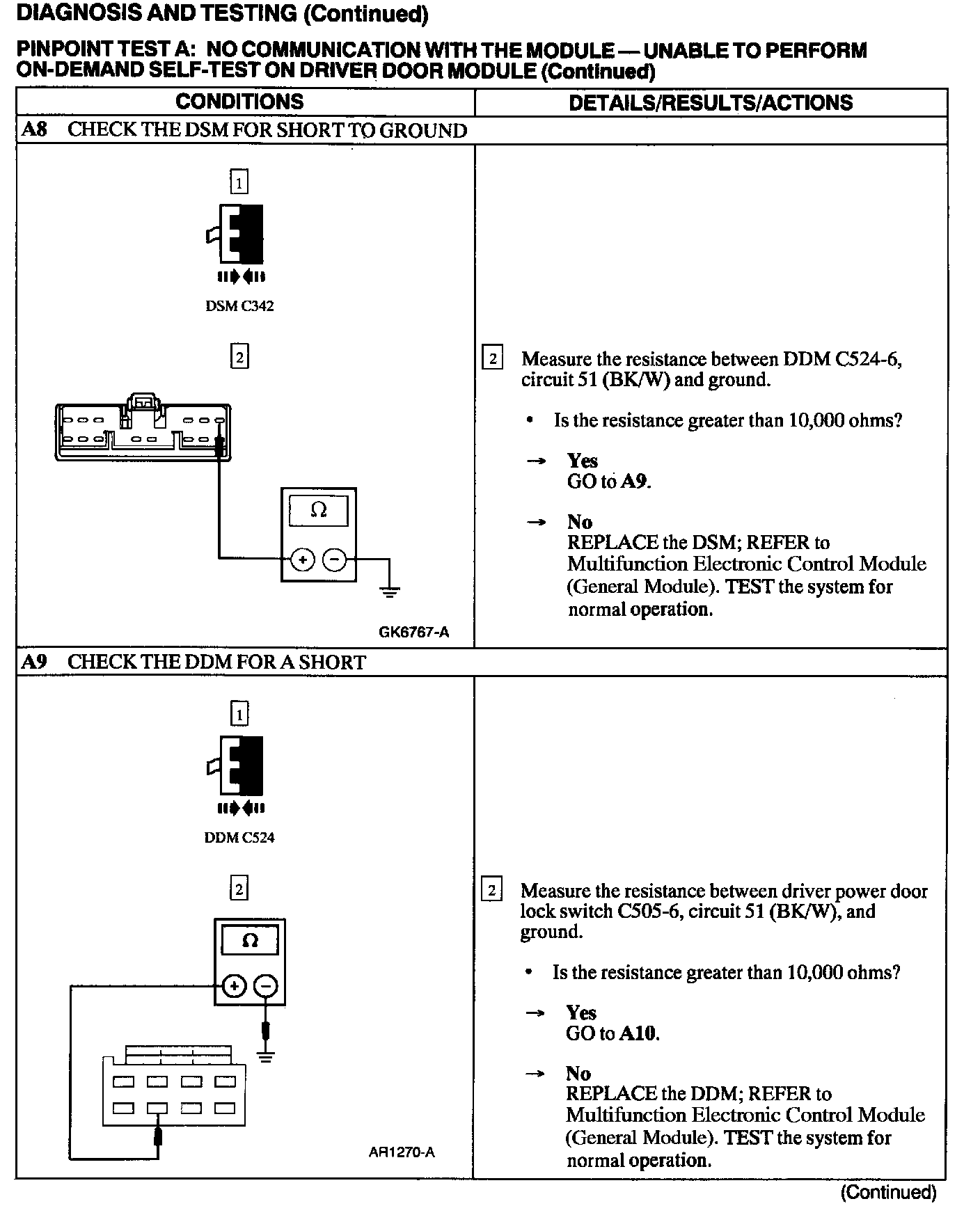

A8 - A9:

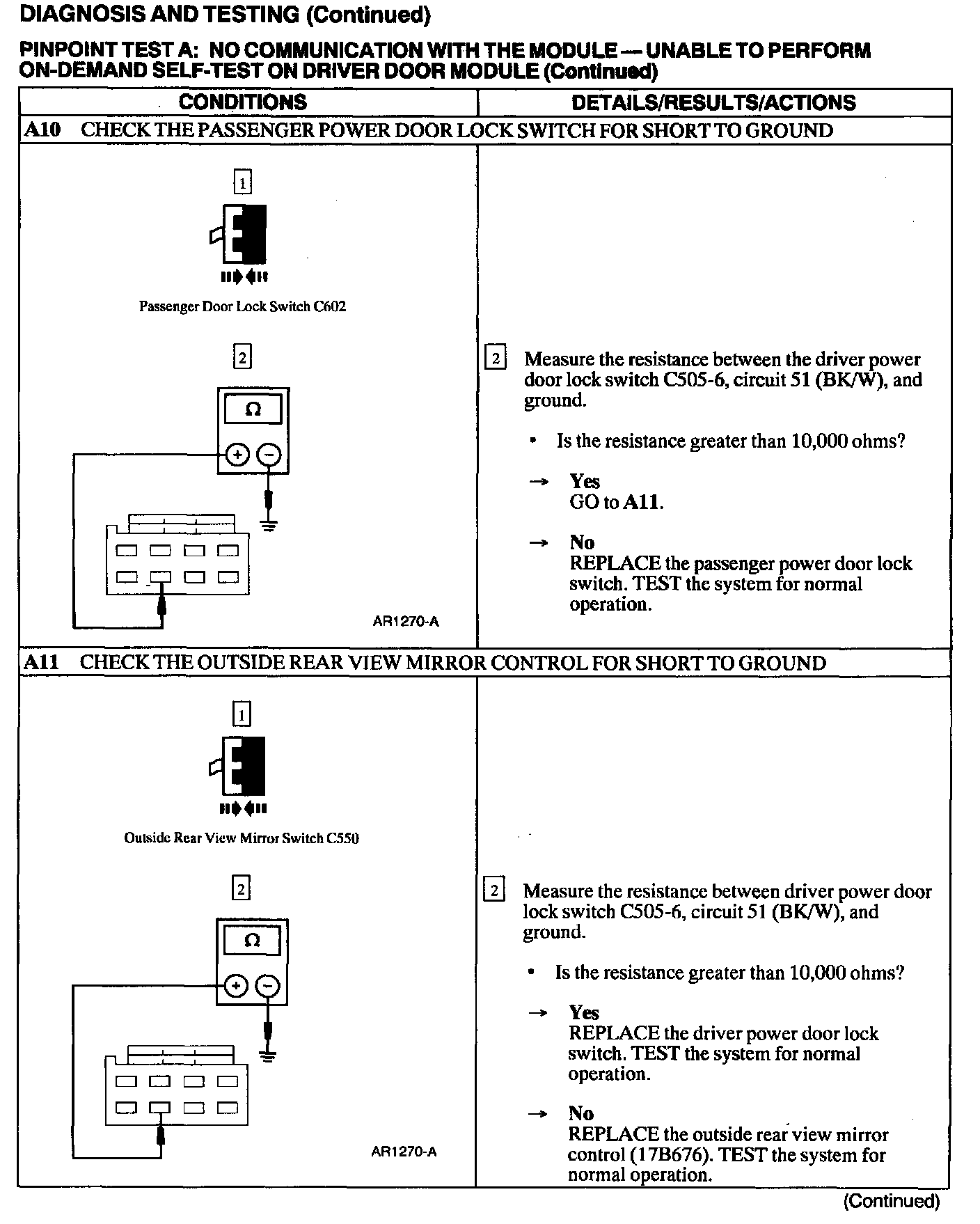

A10 - A11:

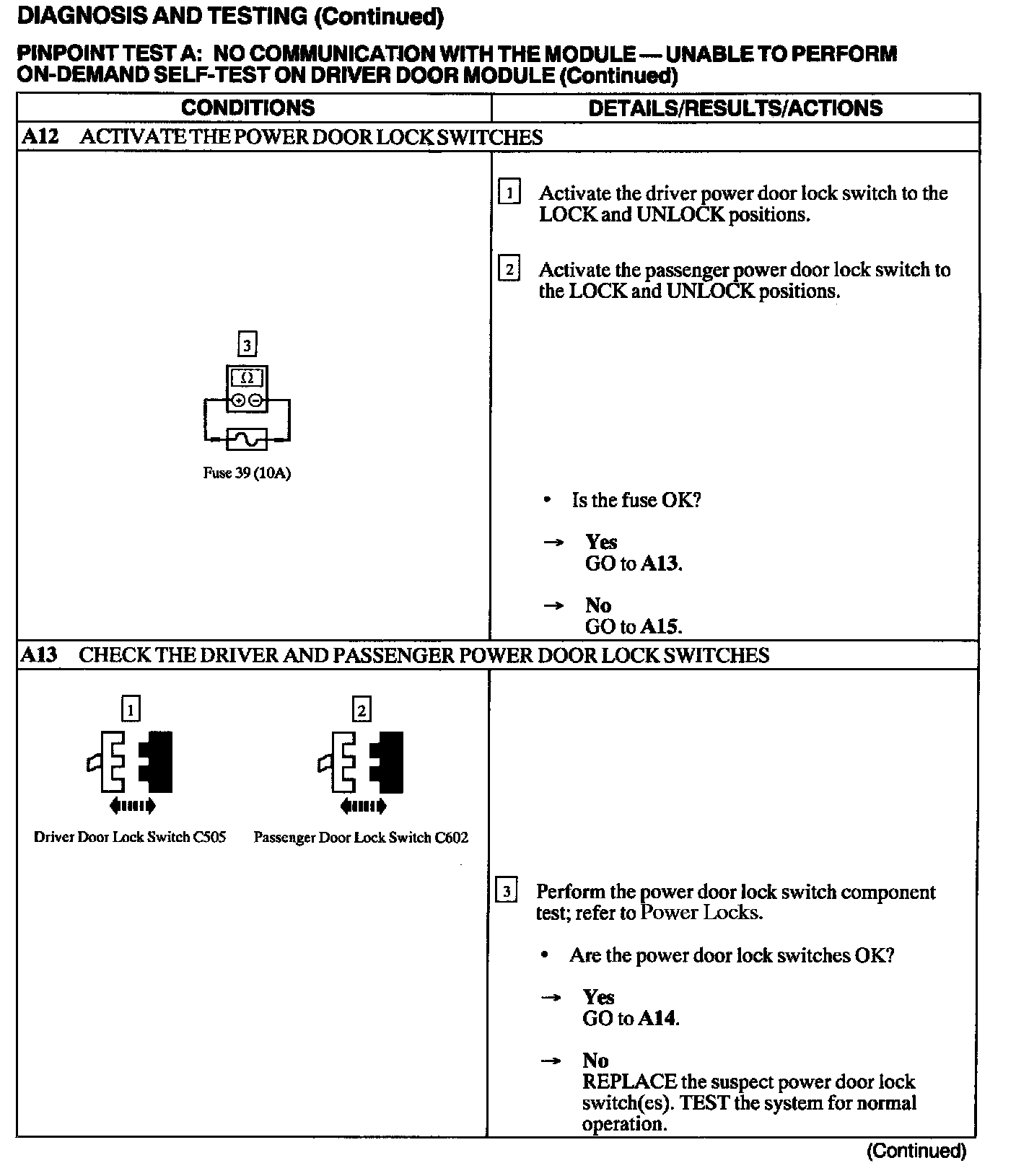

A12 - A13:

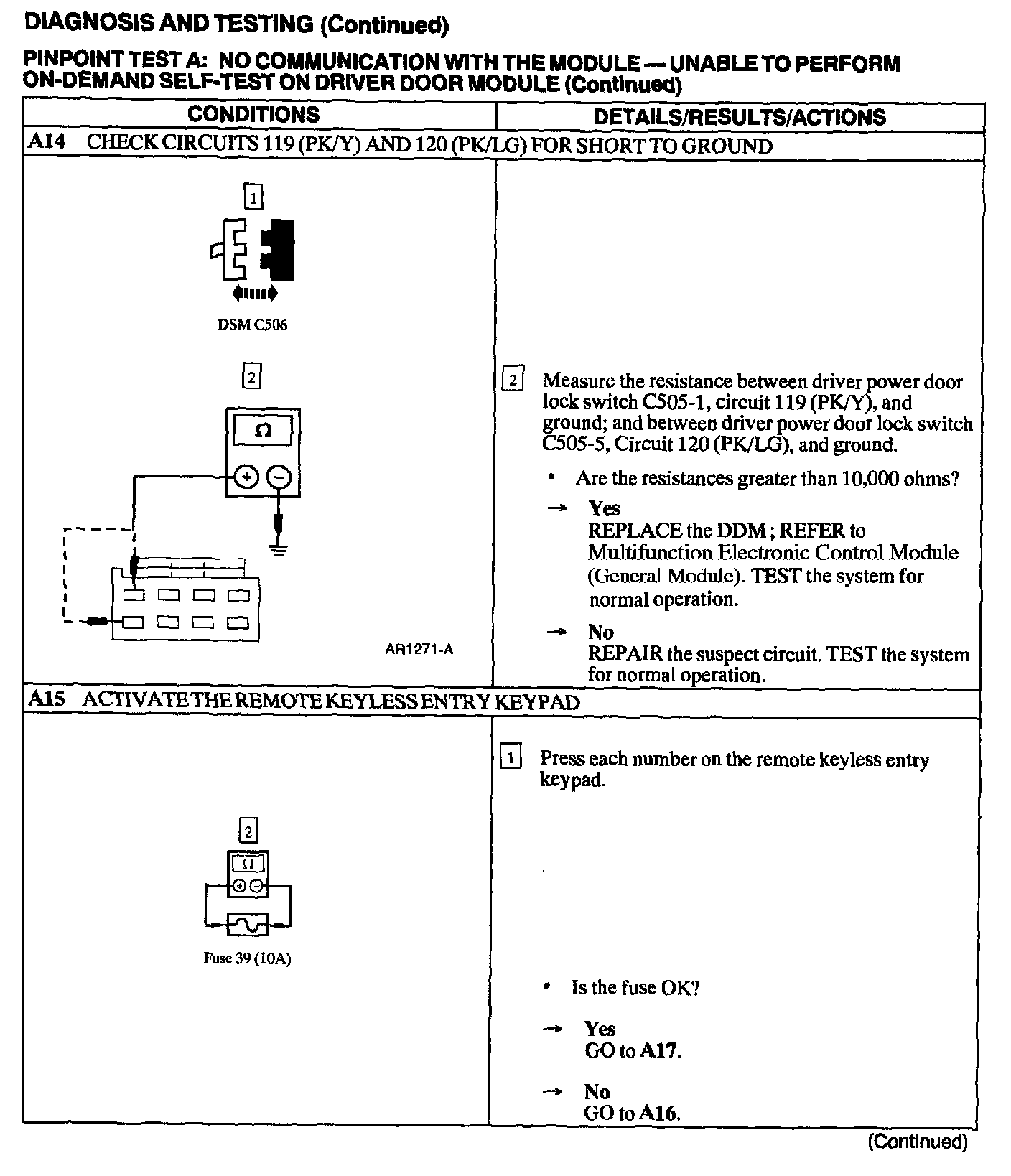

A14 - A15:

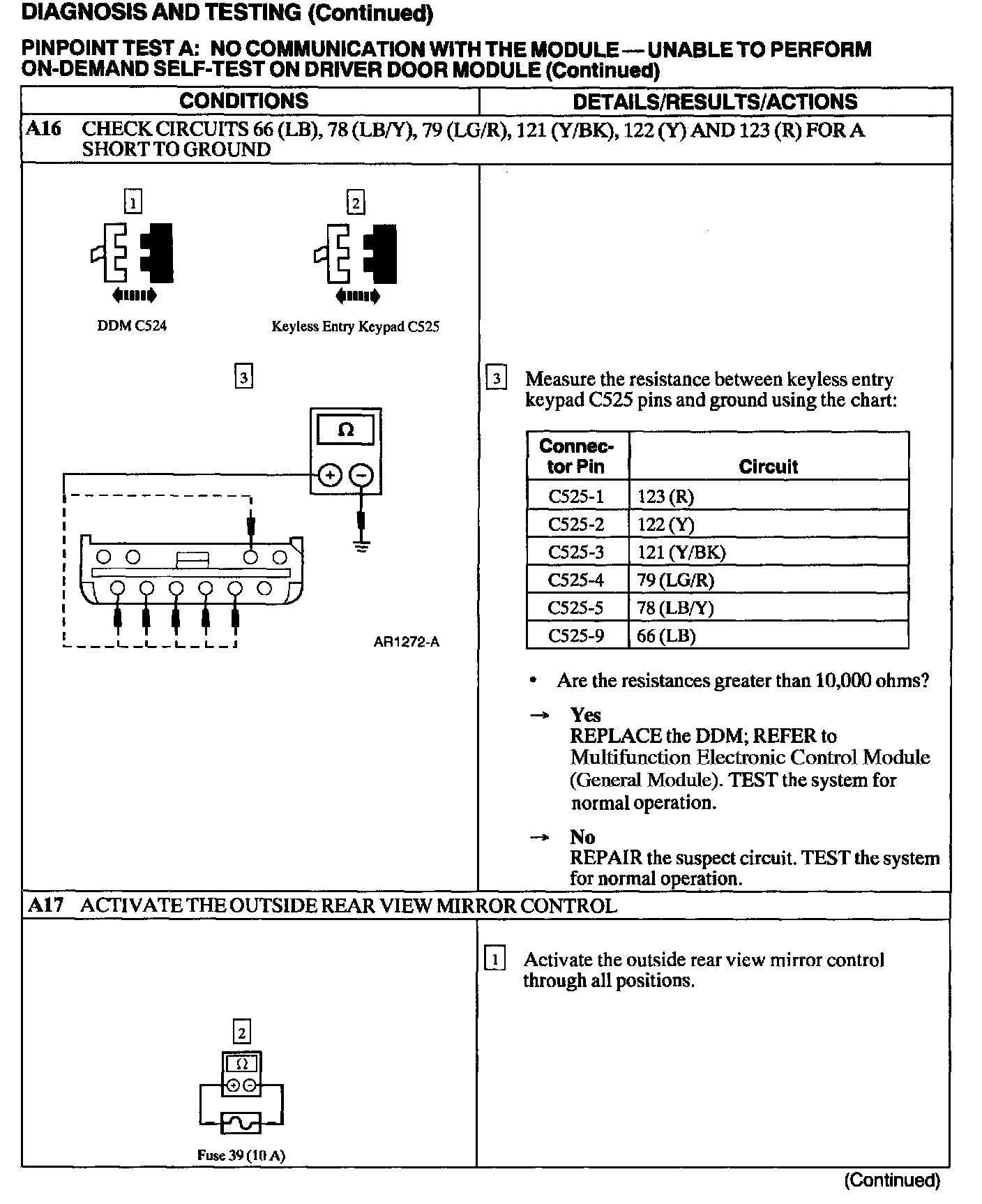

A16 - A17:

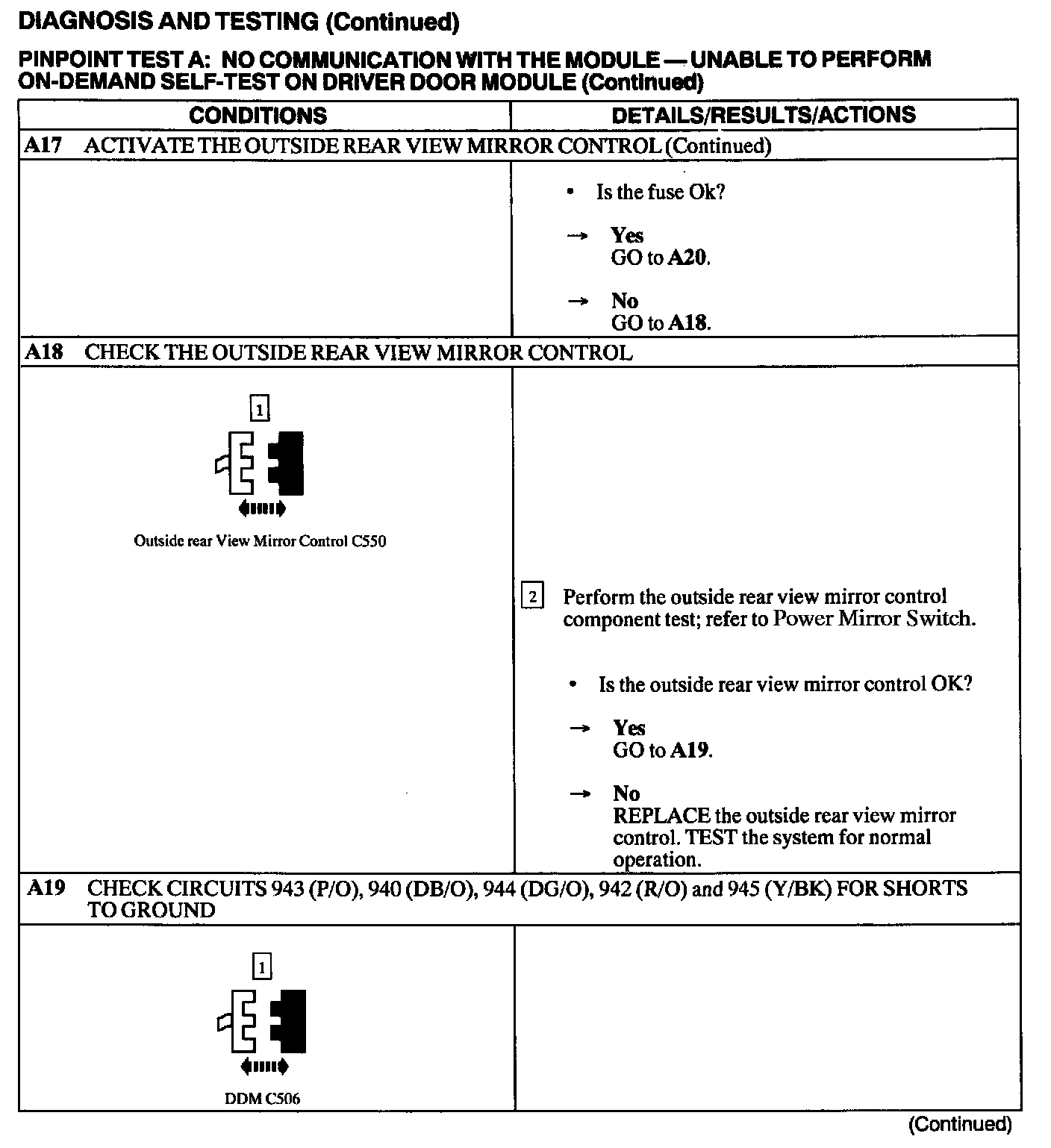

A17 - A19:

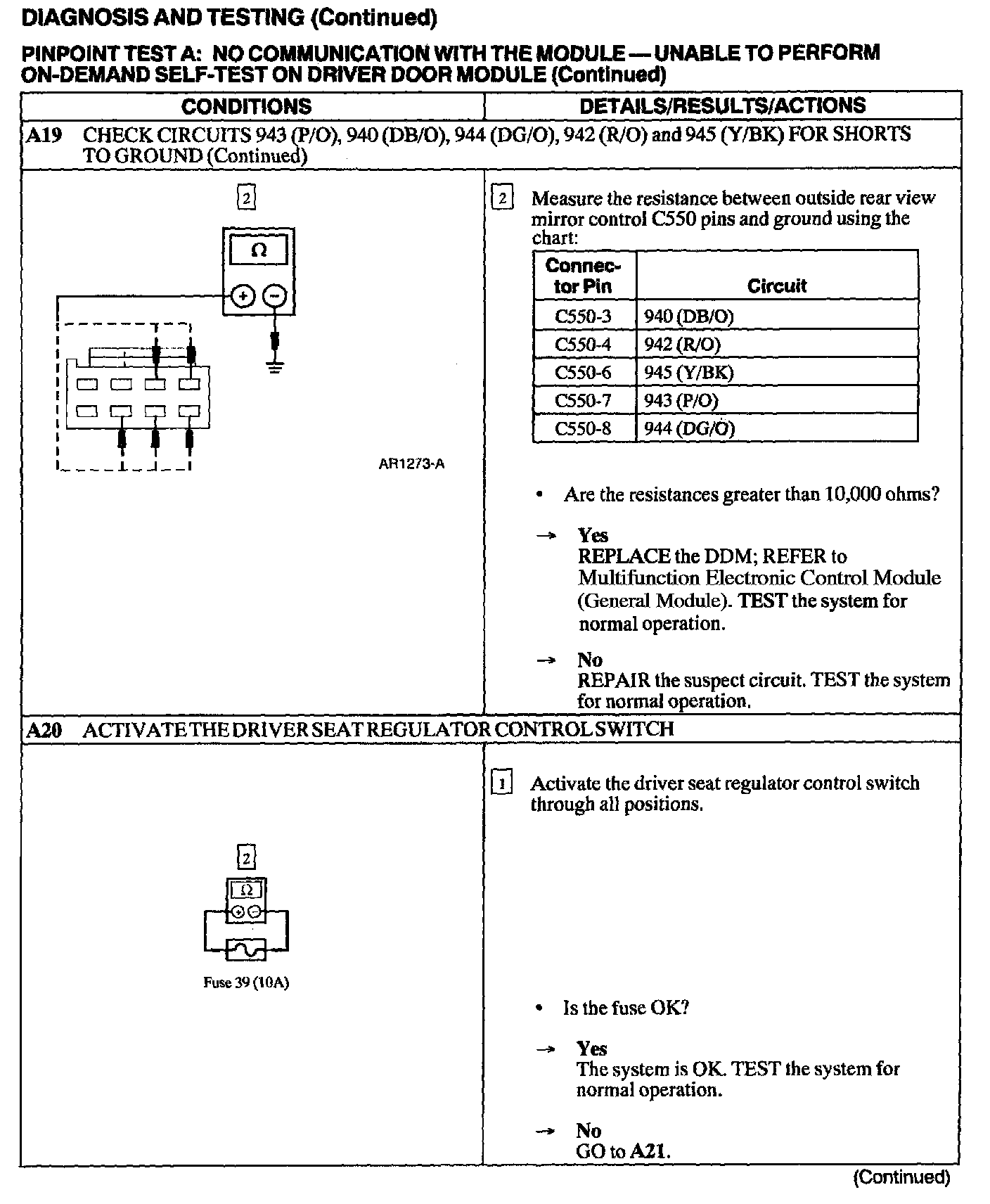

A19 - A20:






A21:

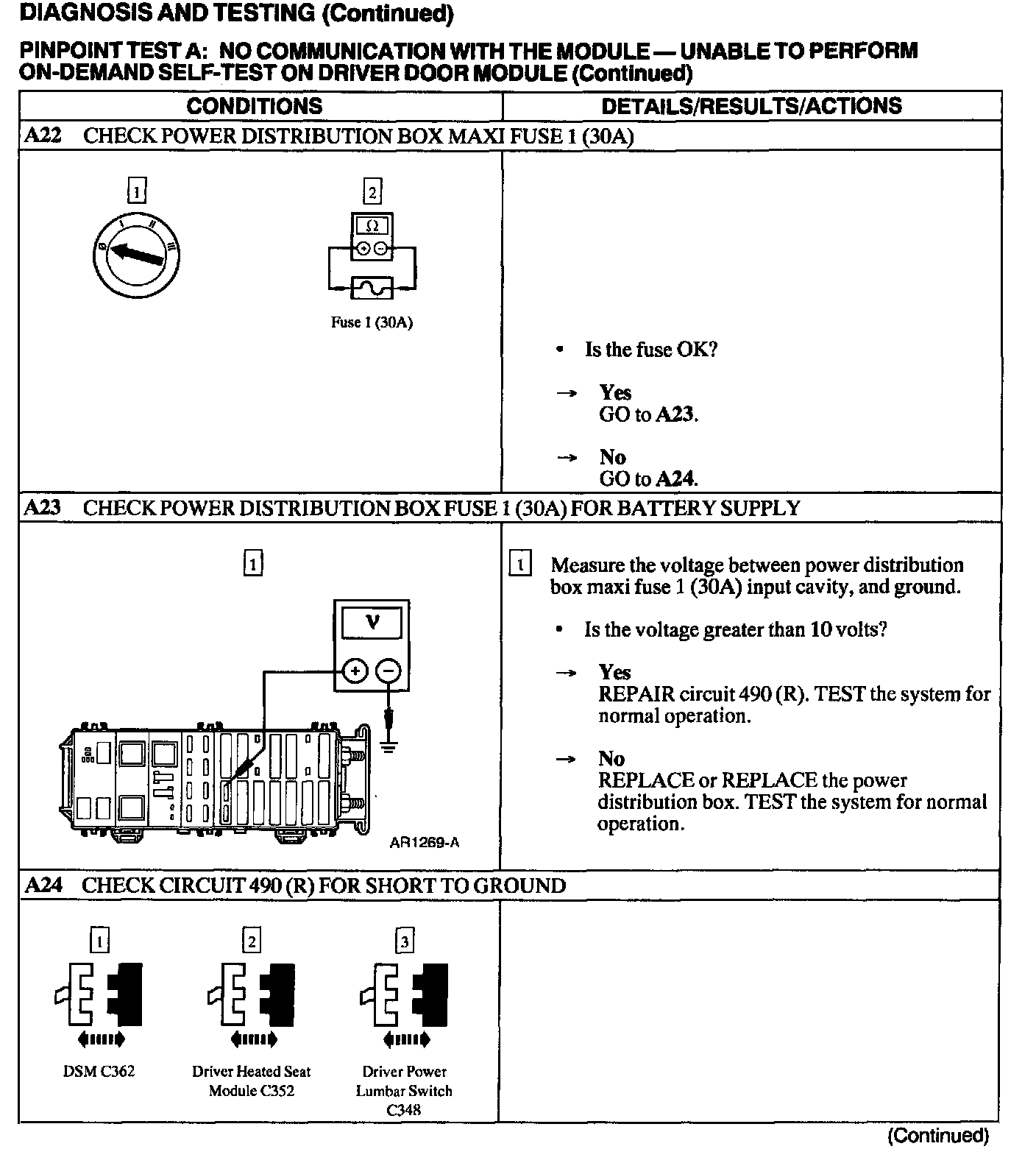

A22 - A24:

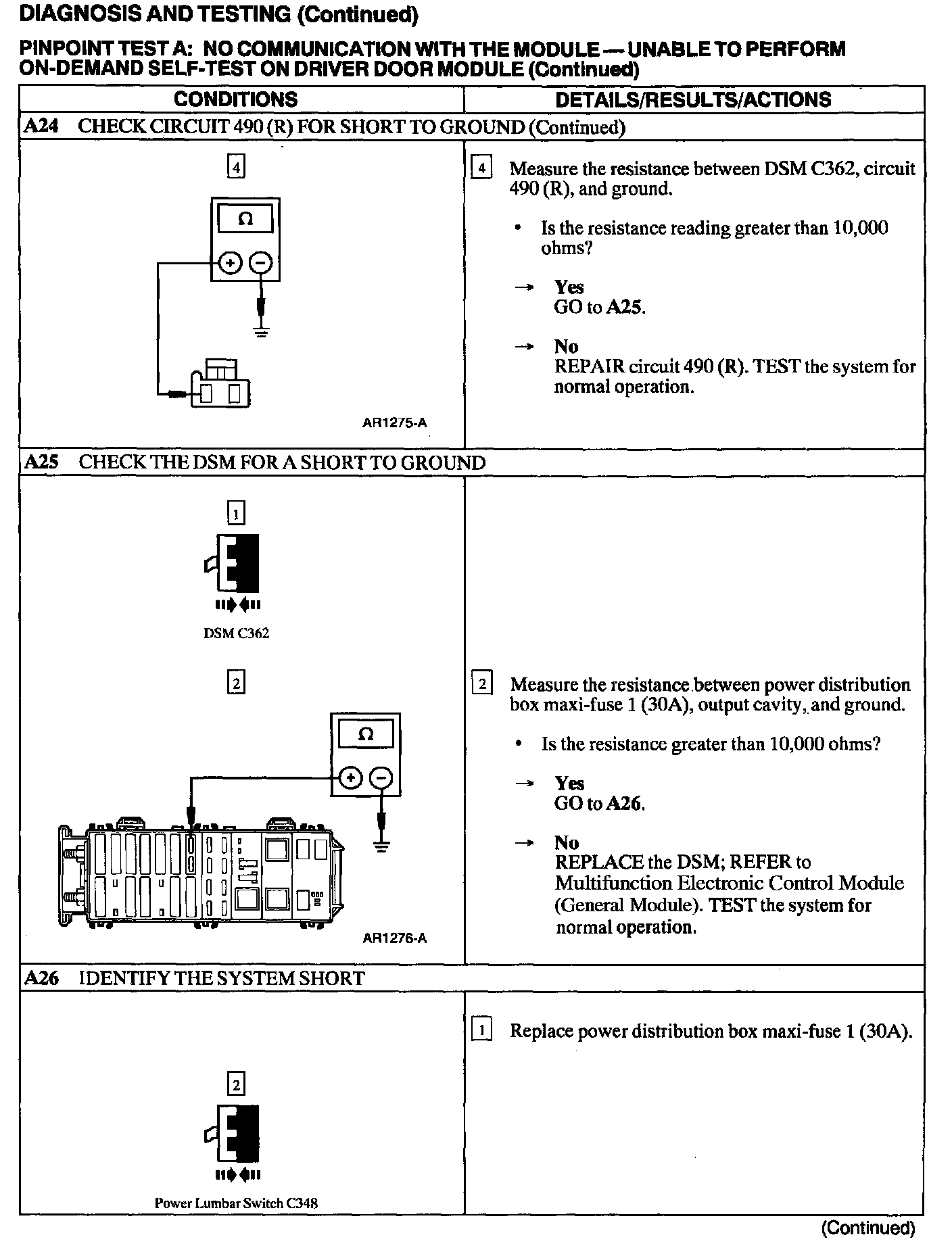

A24 - A26:

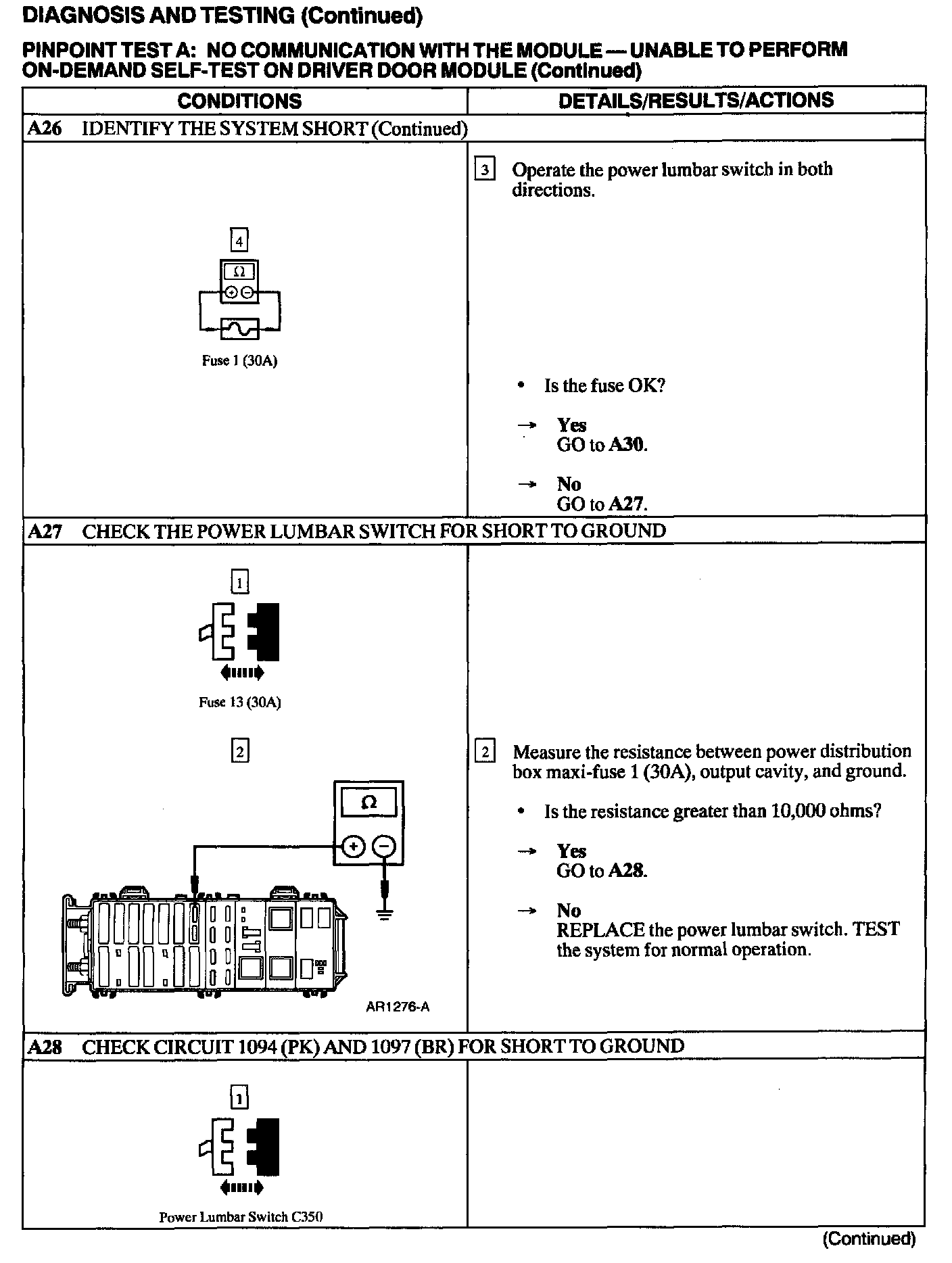

A26 - A28:

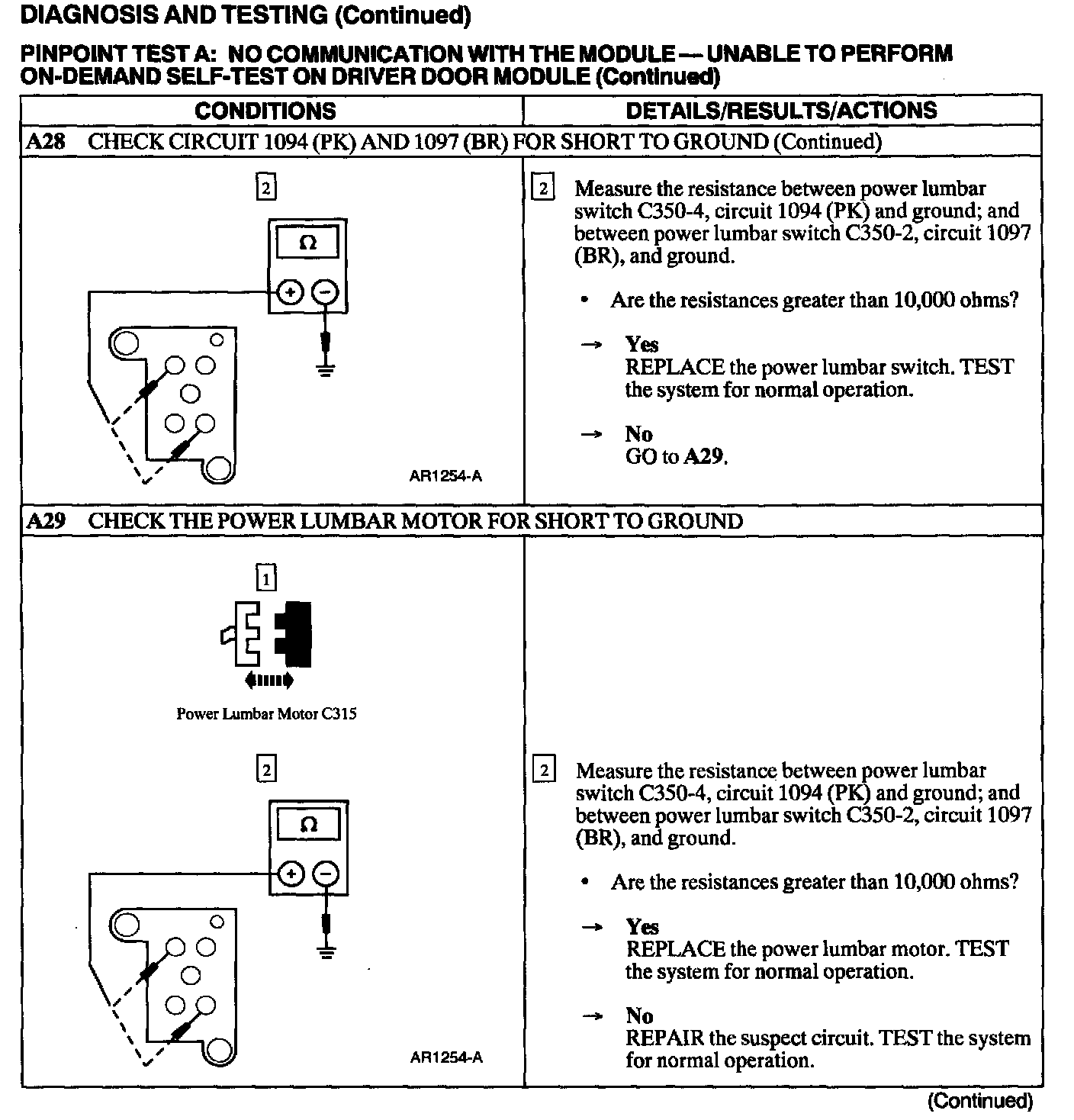

A28 - A29:

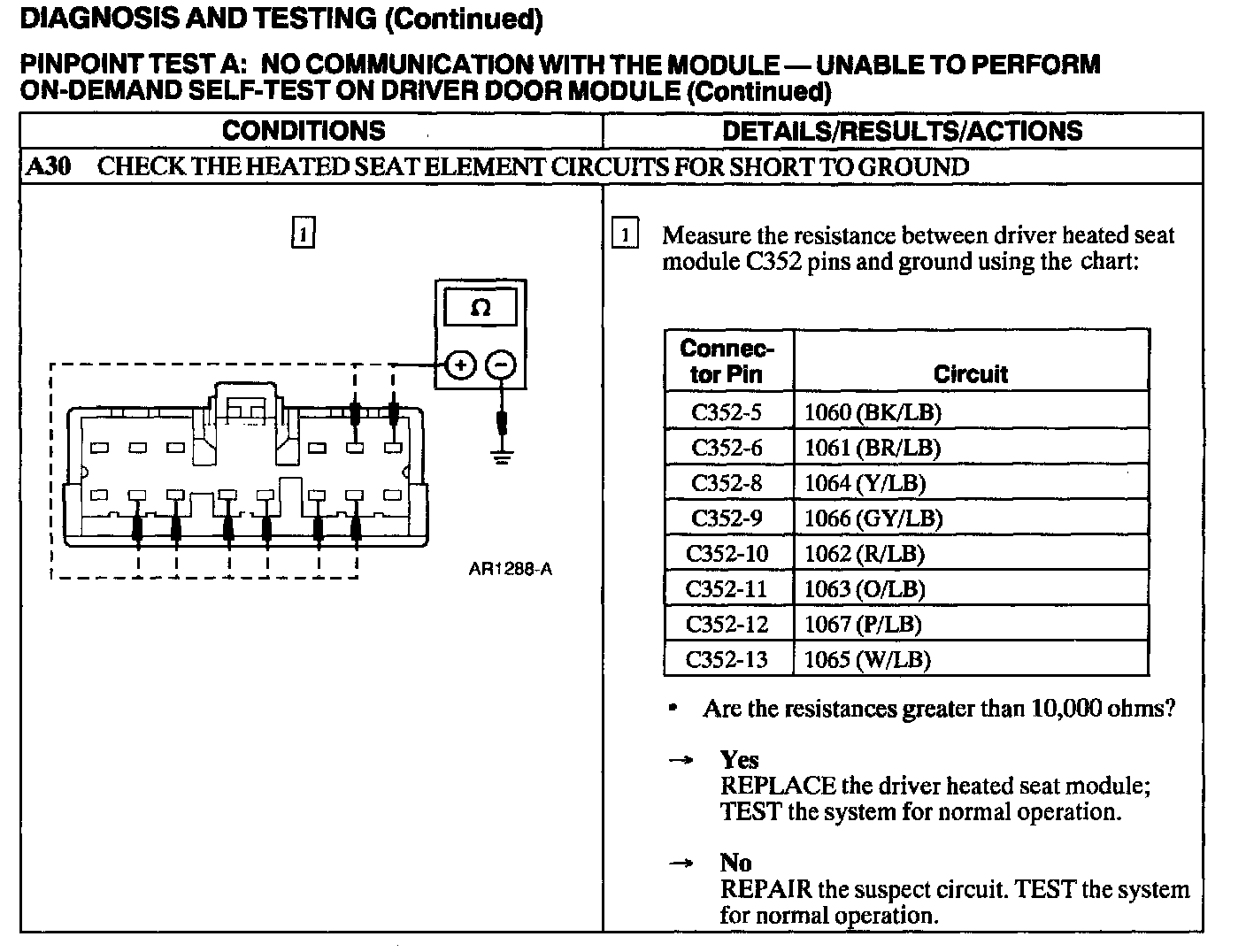

A30:
