Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Lincoln
>>
1999
>>
Continental V8-4.6L DOHC VIN V
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>
Module Communication Network
>>
Pinpoint Tests
>>
D: No Response to NGS Tester - Driver Seat Module
D: No Response to NGS Tester - Driver Seat Module

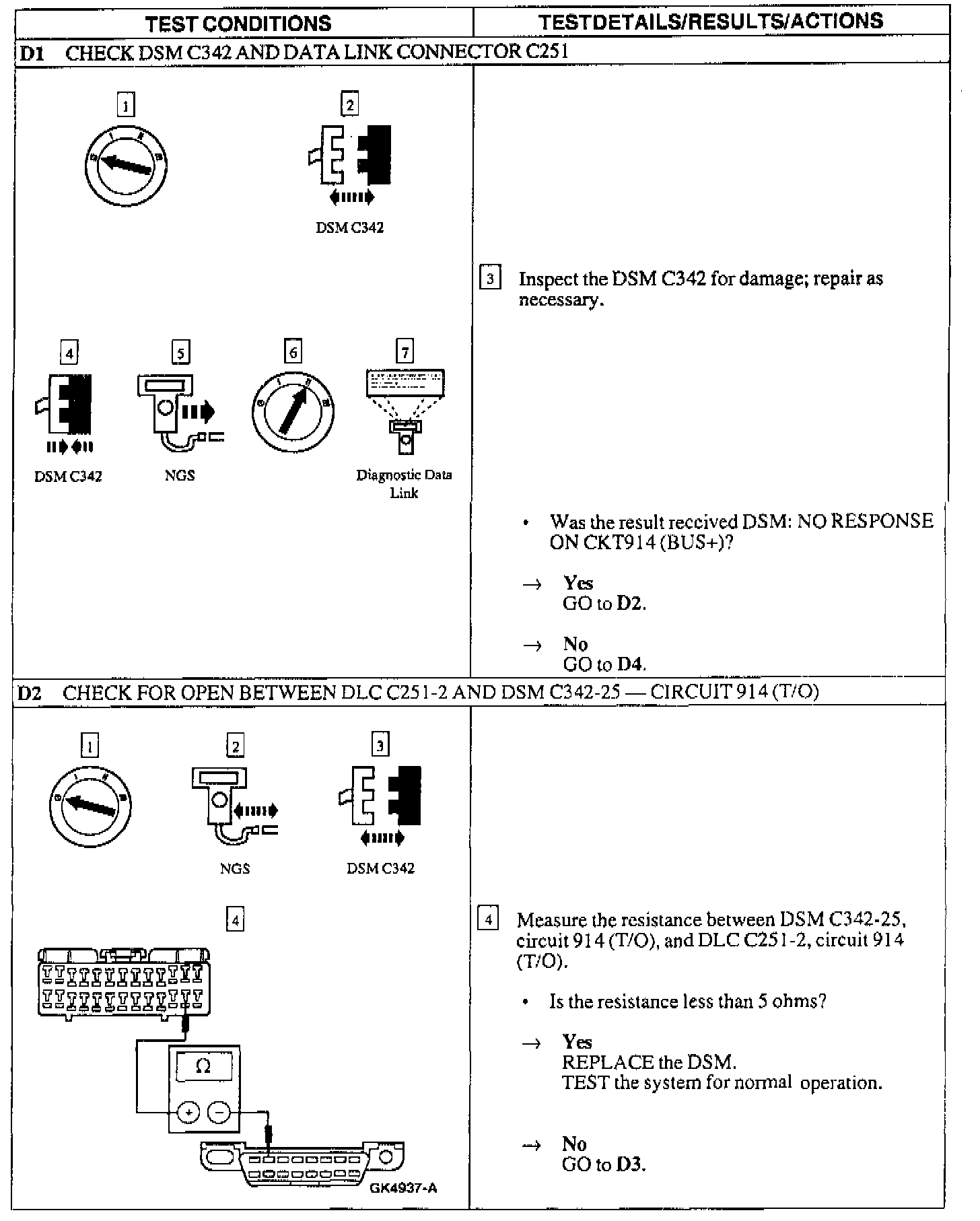

D1 - D2:

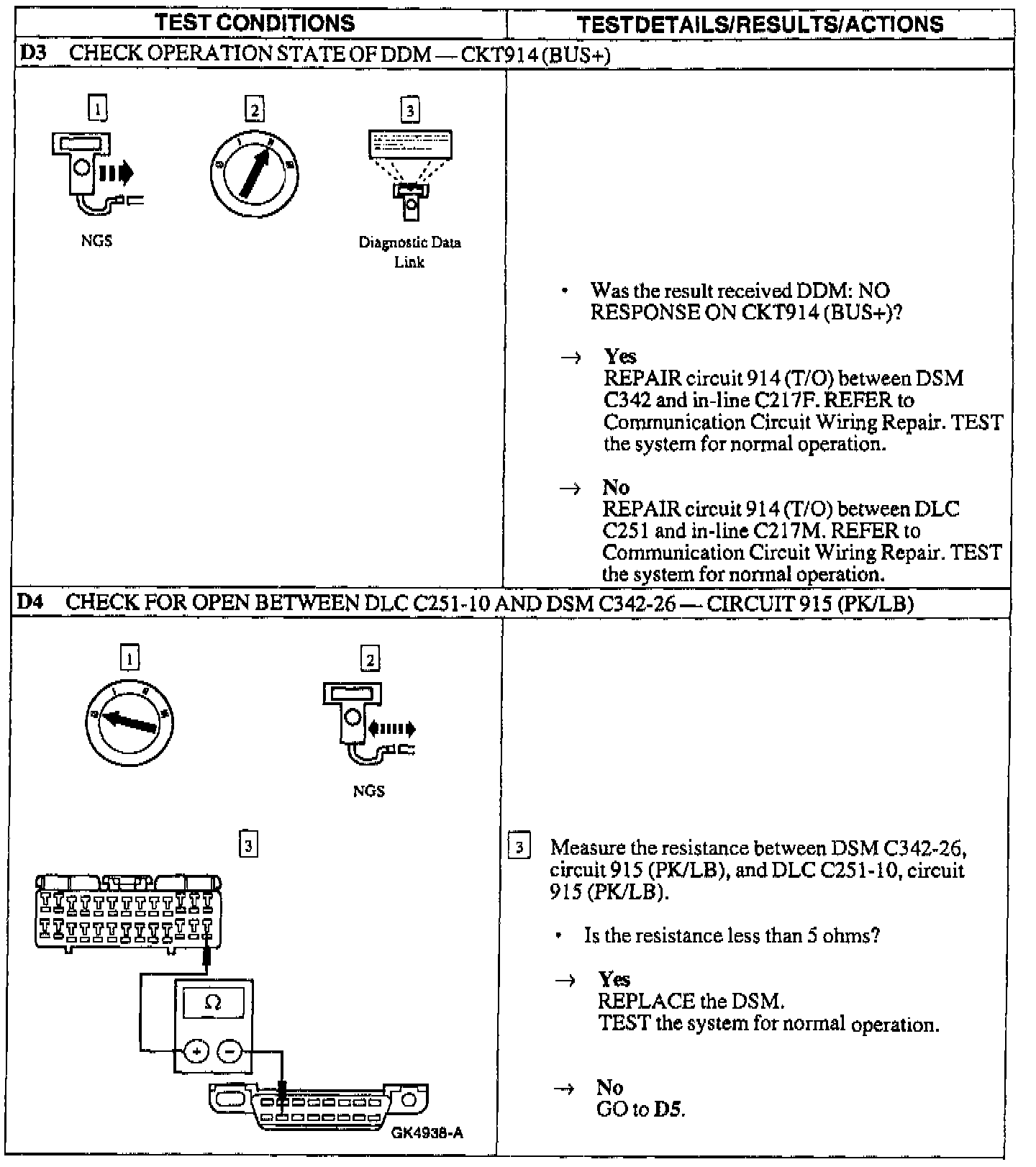

D3 - D4:

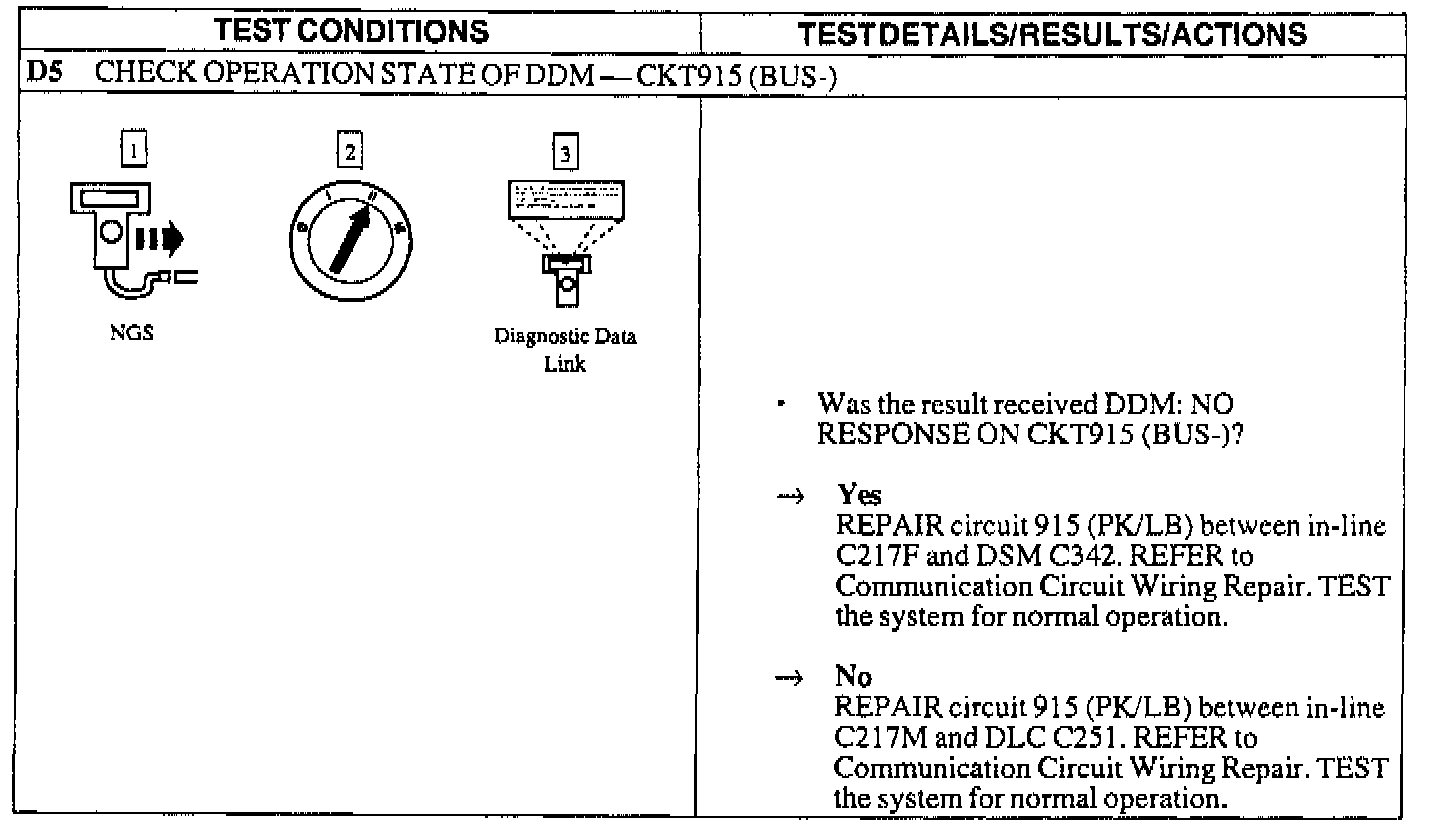

D5:
