Antitheft and Alarm Systems
>>
System Diagram
>>

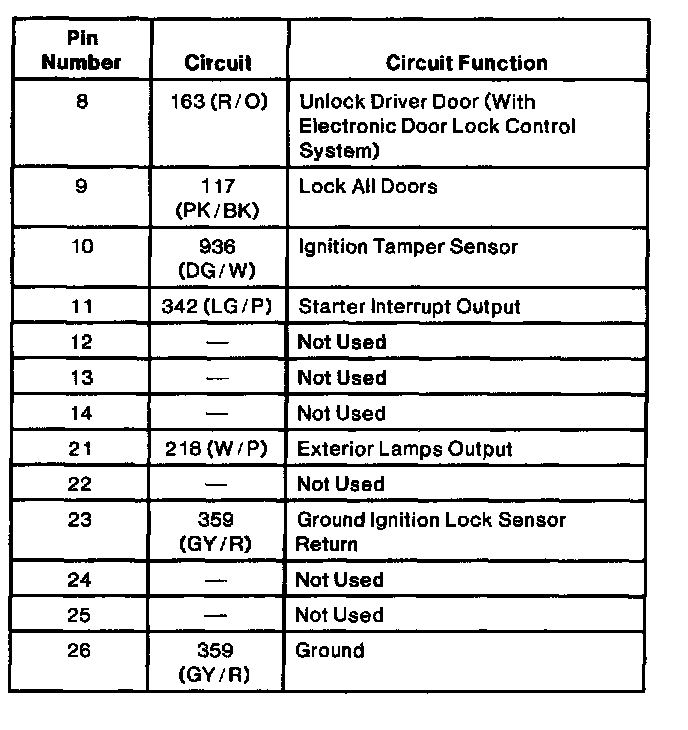

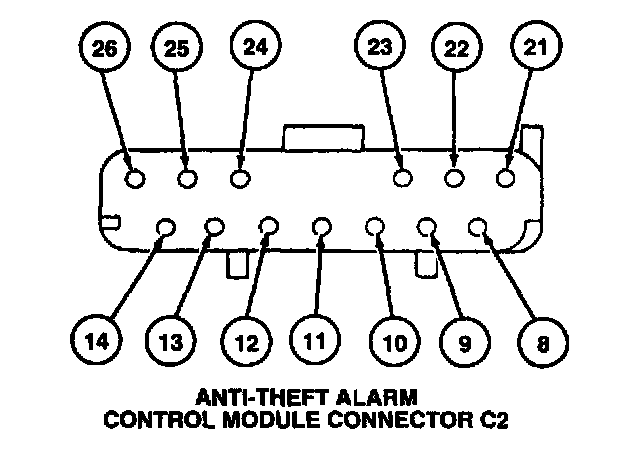

Antitheft Alarm Control Module Connector C2
Antitheft Alarm Control Module Connector C2
