Home >> Lincoln >> 1996 >> Continental V8-4.6L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seats >> Seat Temperature Control Module >> LF Seat Heater Module

LF Seat Heater Module

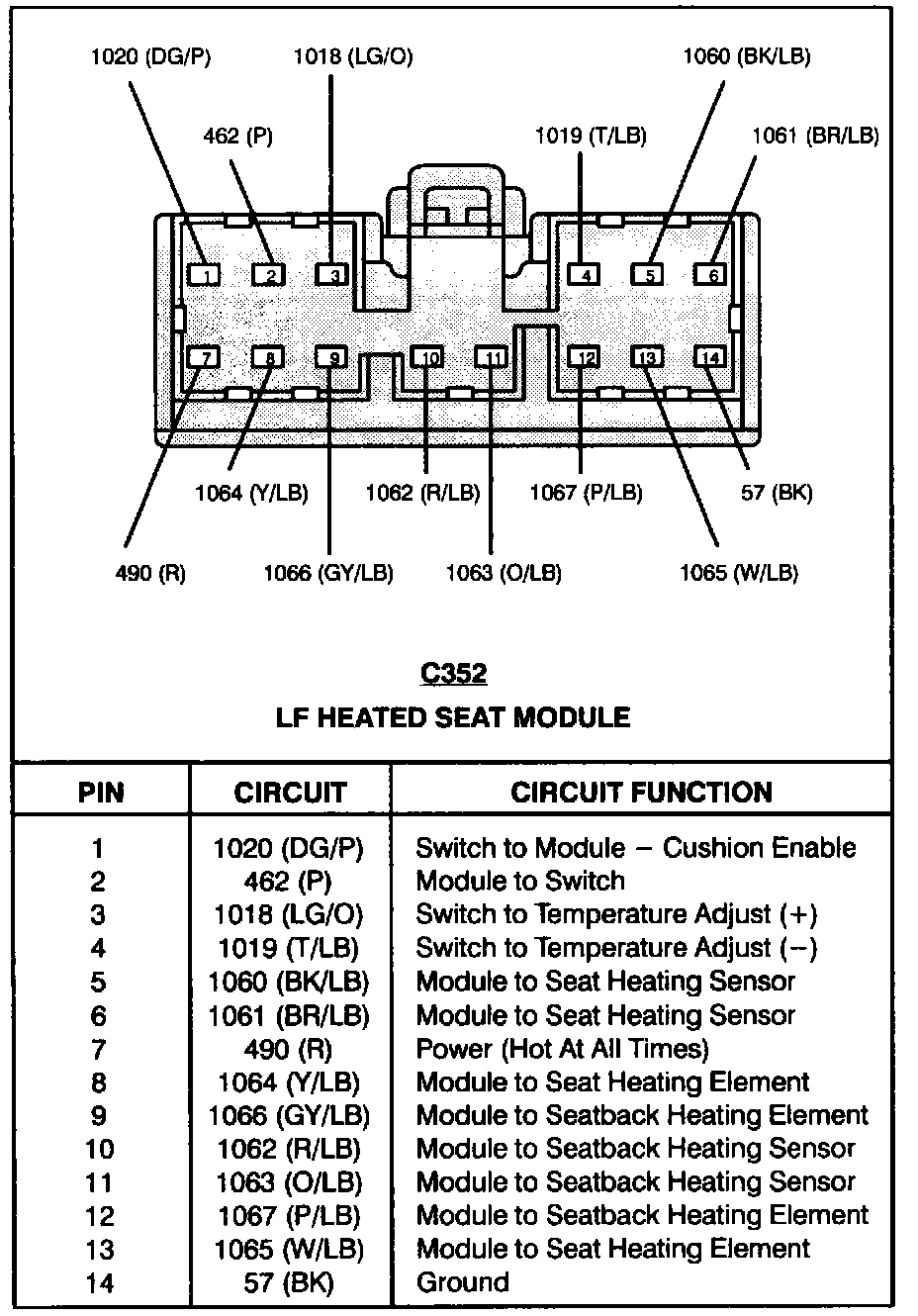

LF Heated Seat Module:
