Home
>>
Lincoln
>>
1996
>>
Continental V8-4.6L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Lighting and Horns
>>
System Diagram
>>
Multi-Function Switch
Multi-Function Switch

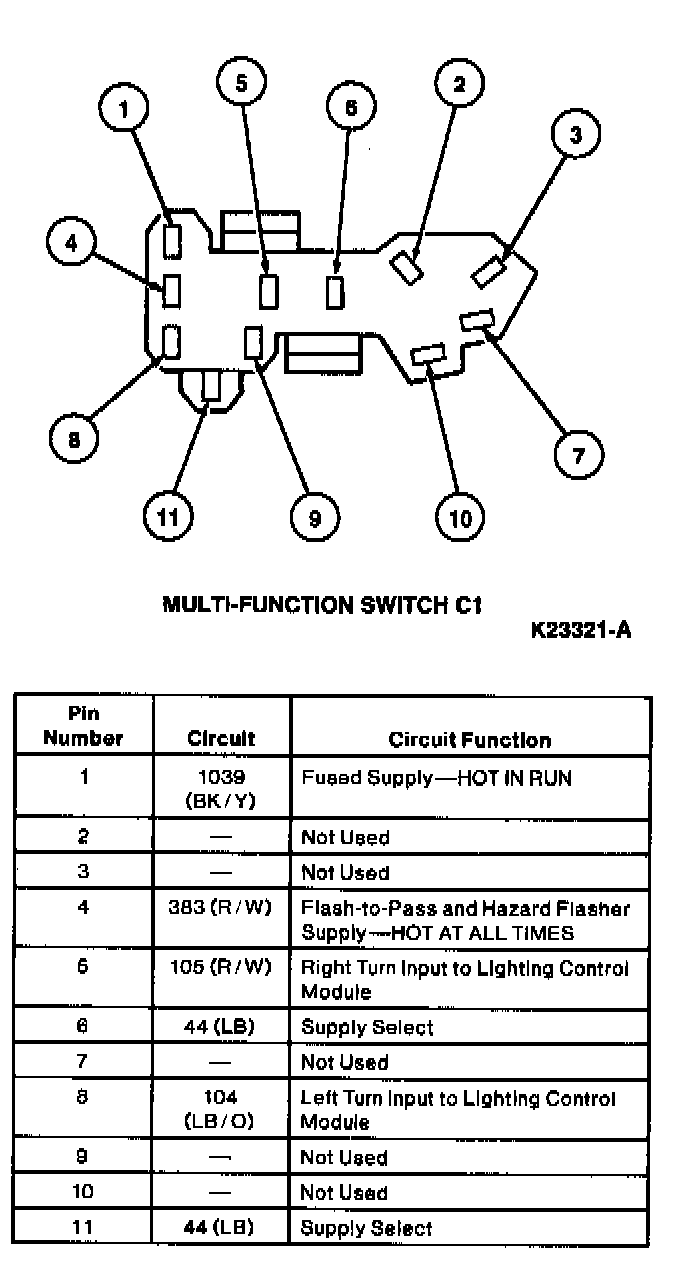

Connector C1

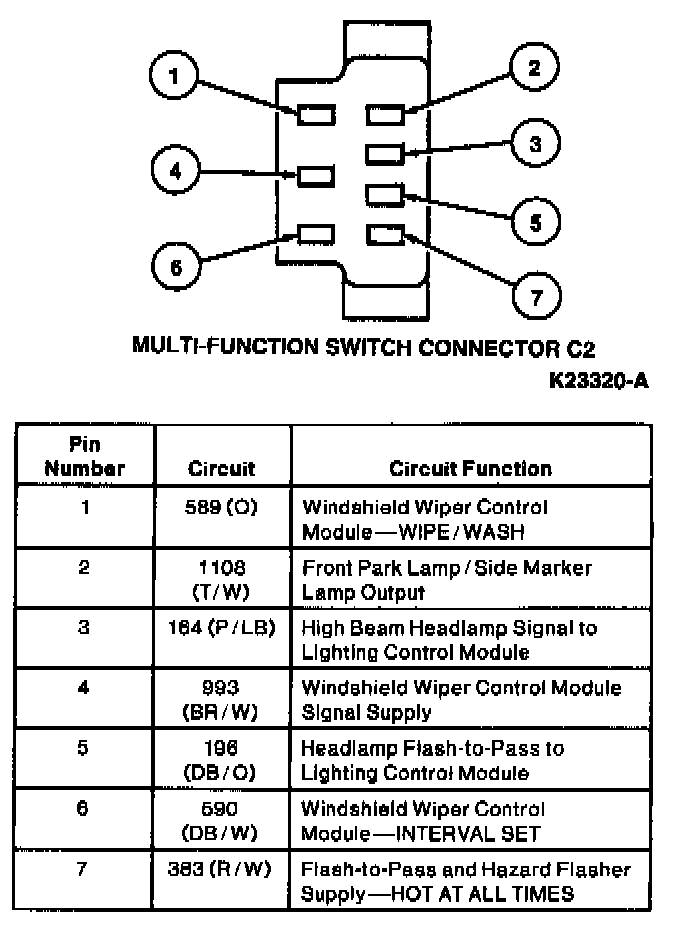

Connector C2
