Home >> Lincoln >> 1996 >> Continental V8-4.6L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Heating and Air Conditioning >> Control Module HVAC >> Electronic Climate Control Module

Electronic Climate Control Module

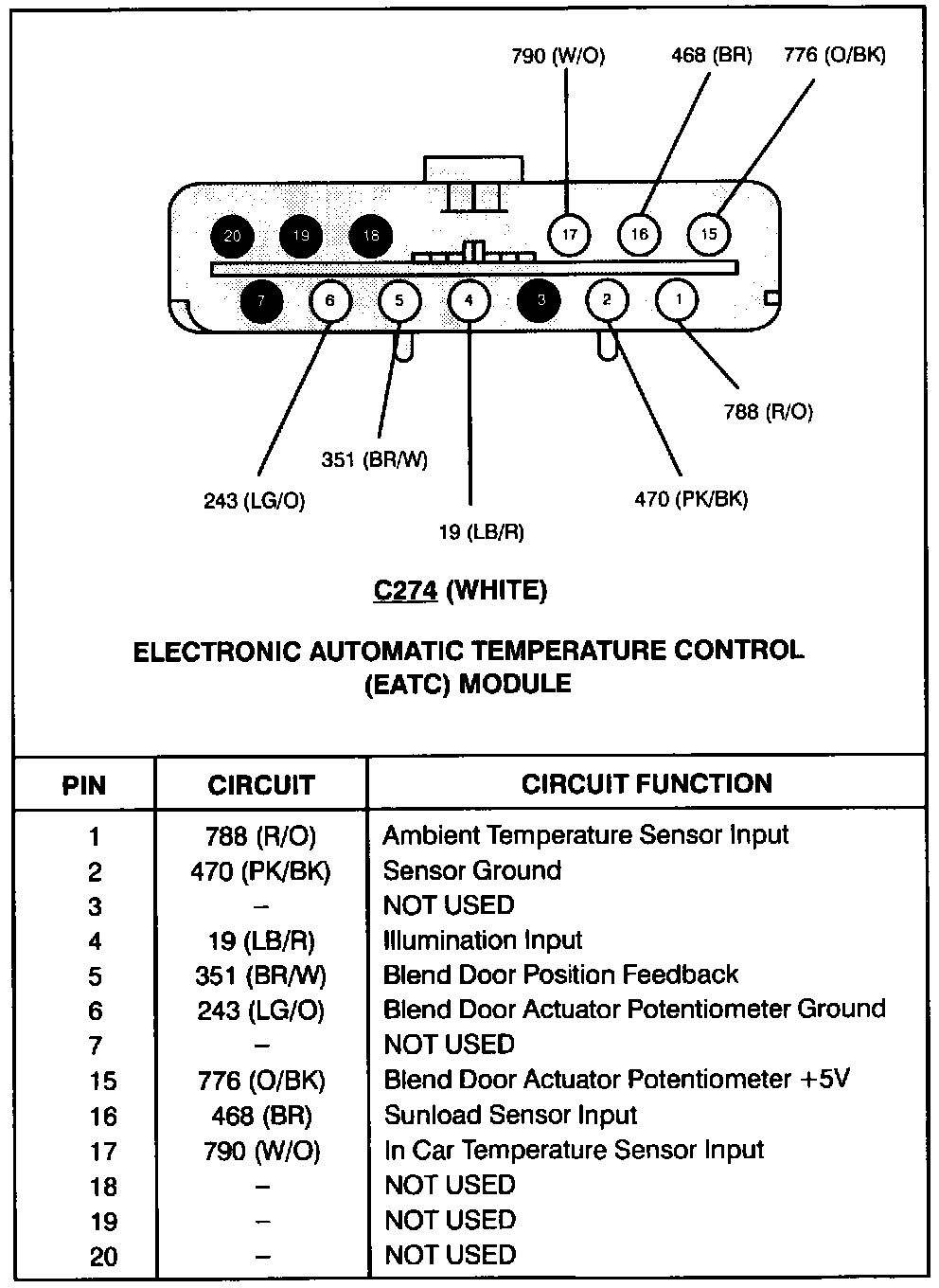

Electronic Automatic Temperature Control:

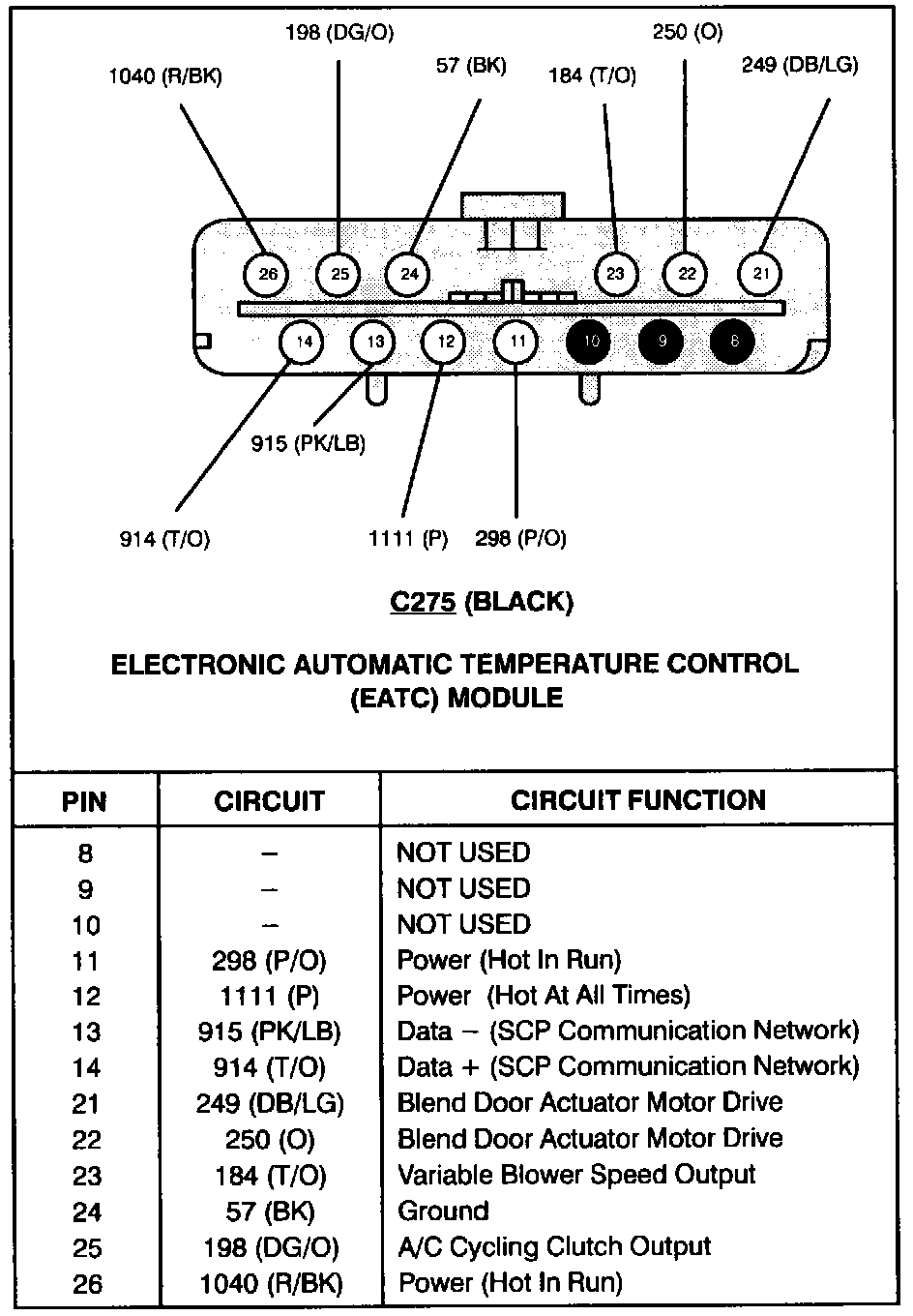

Electronic Automatic Temperature Control:
