Home >> Lincoln >> 1995 >> Mark VIII V8-4.6L DOHC >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Instrument Panel >> Audible Warning Device Control Module >> Diagrams

Audible Warning Device Control Module: Diagrams

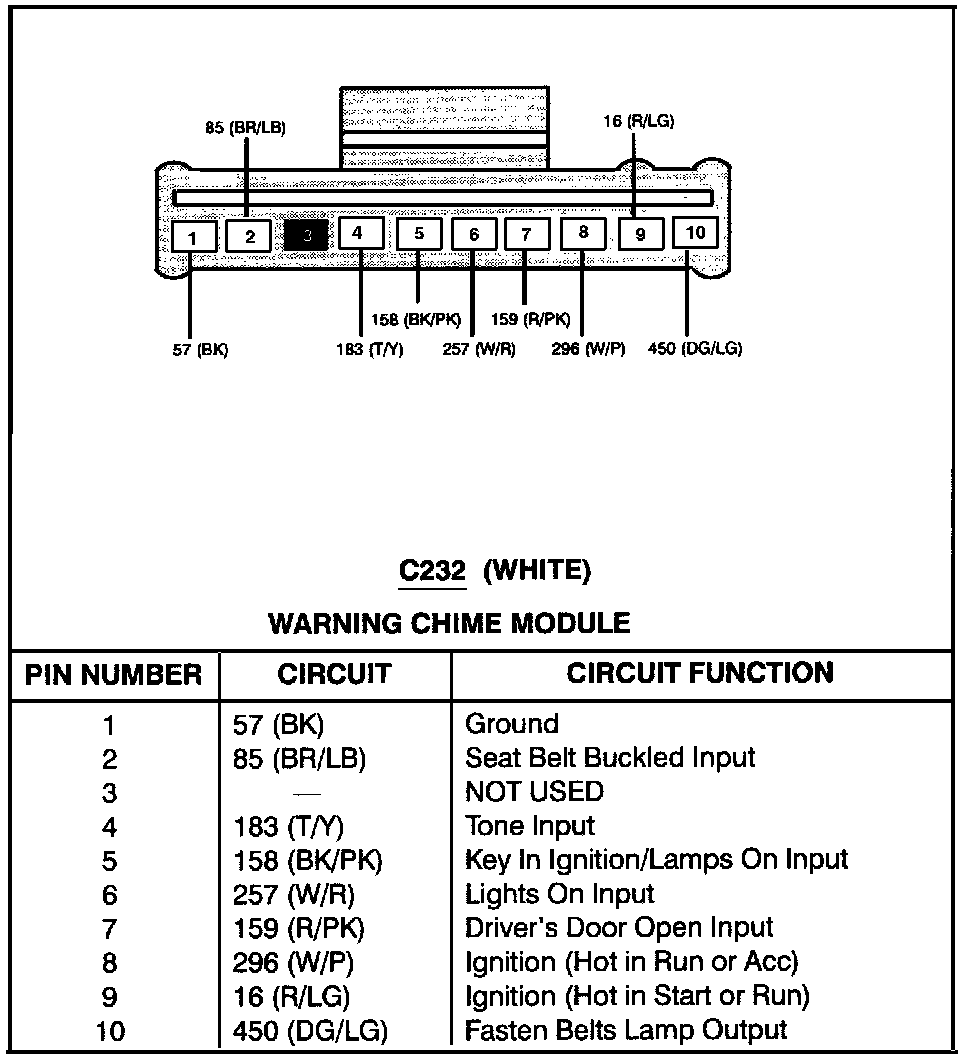

Warning Chime Module (C232):
