Home >> Lincoln >> 1995 >> Mark VIII V8-4.6L DOHC >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Application and ID >> Engine Compartment Fuse Box.

Engine Compartment Fuse Box.

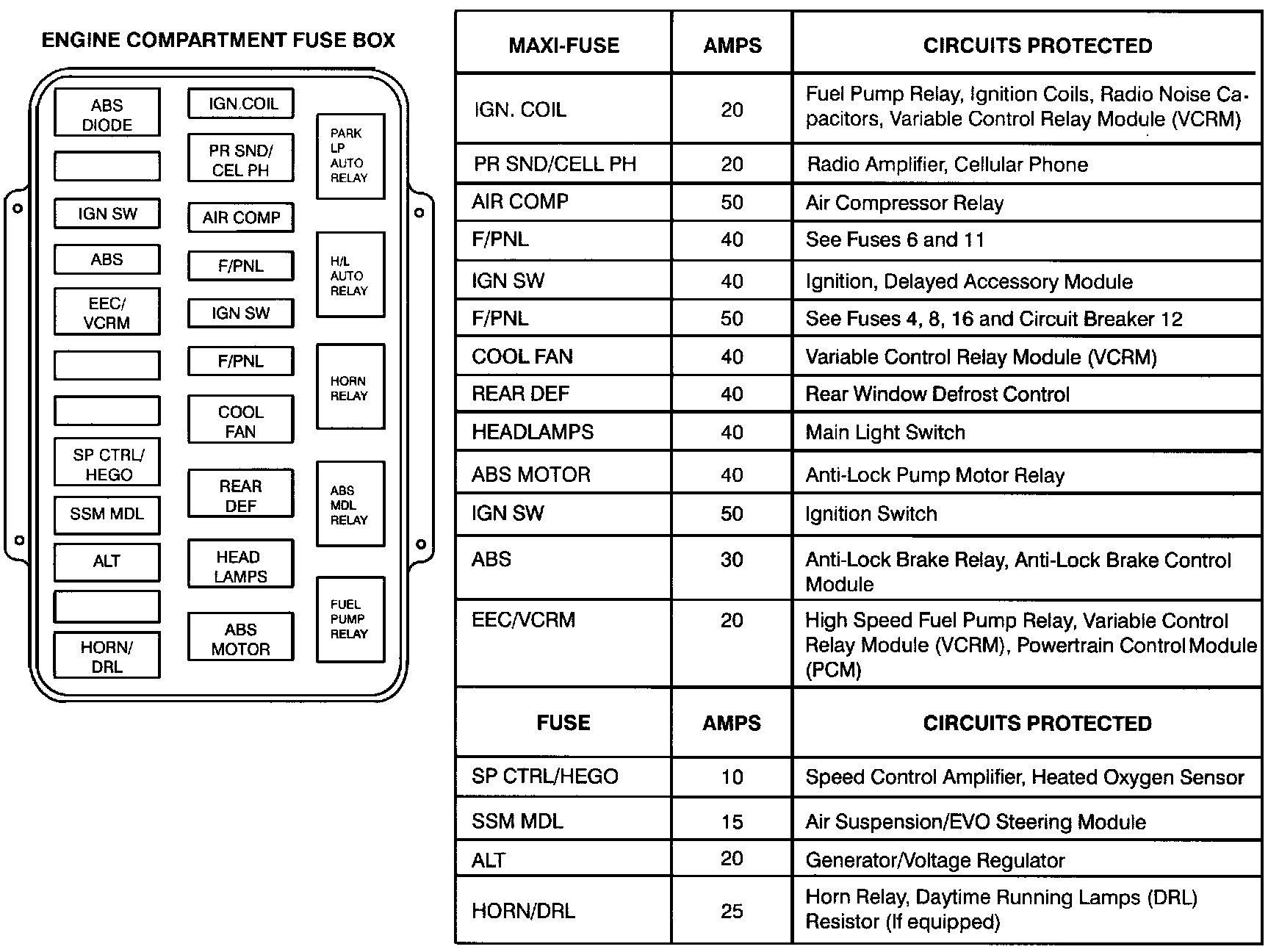

Circuit Protection/Fuse Panel (Engine Compartment Fuse Box):
