Home >> Lincoln >> 1995 >> Continental V8-4.6L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seats >> Seat Temperature Control Module >> RF Seat Heater Module

RF Seat Heater Module

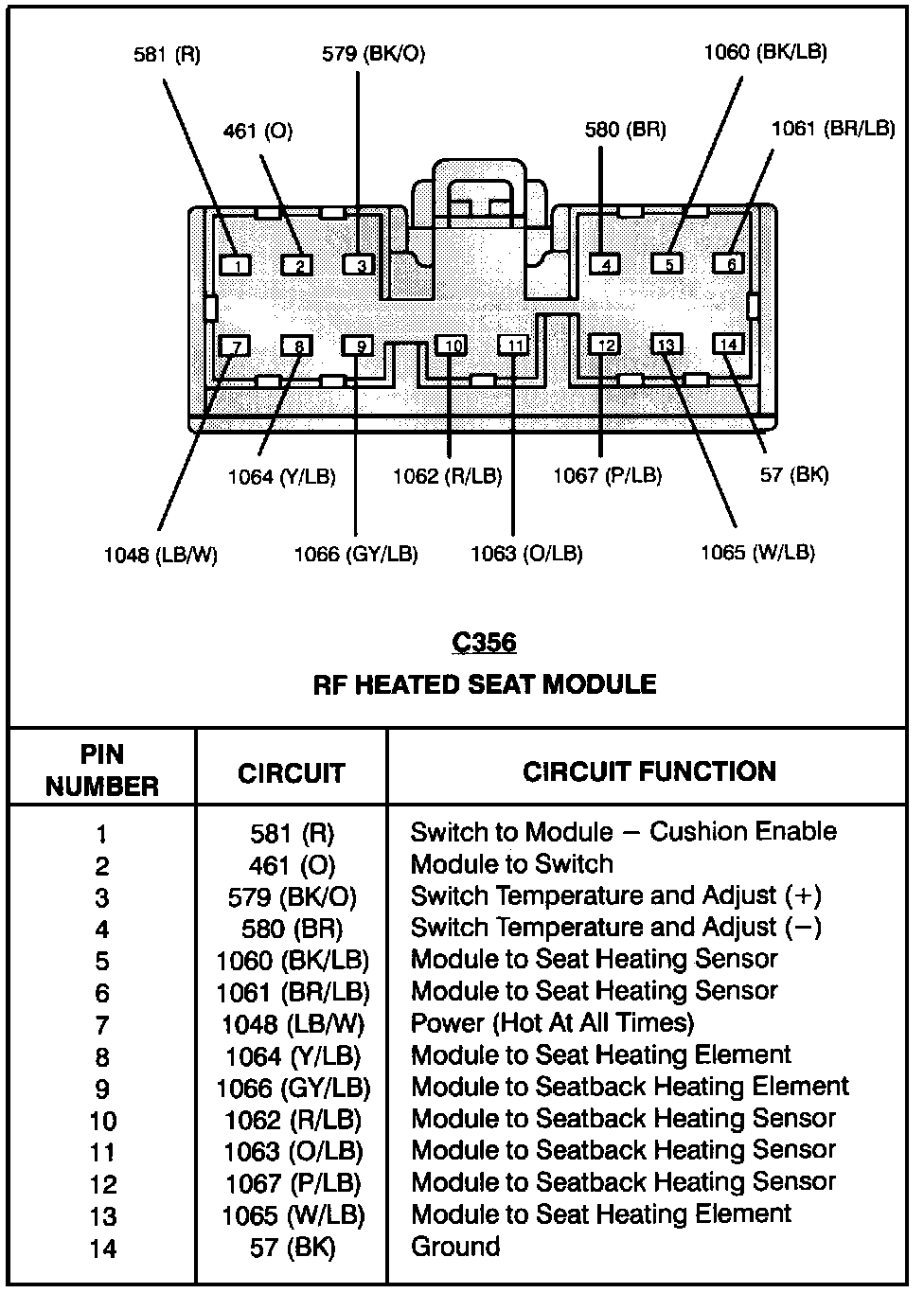

RF Heated Seat Module (C356):
