Home >> Lincoln >> 1992 >> Mark VII V8-302 5.0L HO >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Module HVAC >> Locations

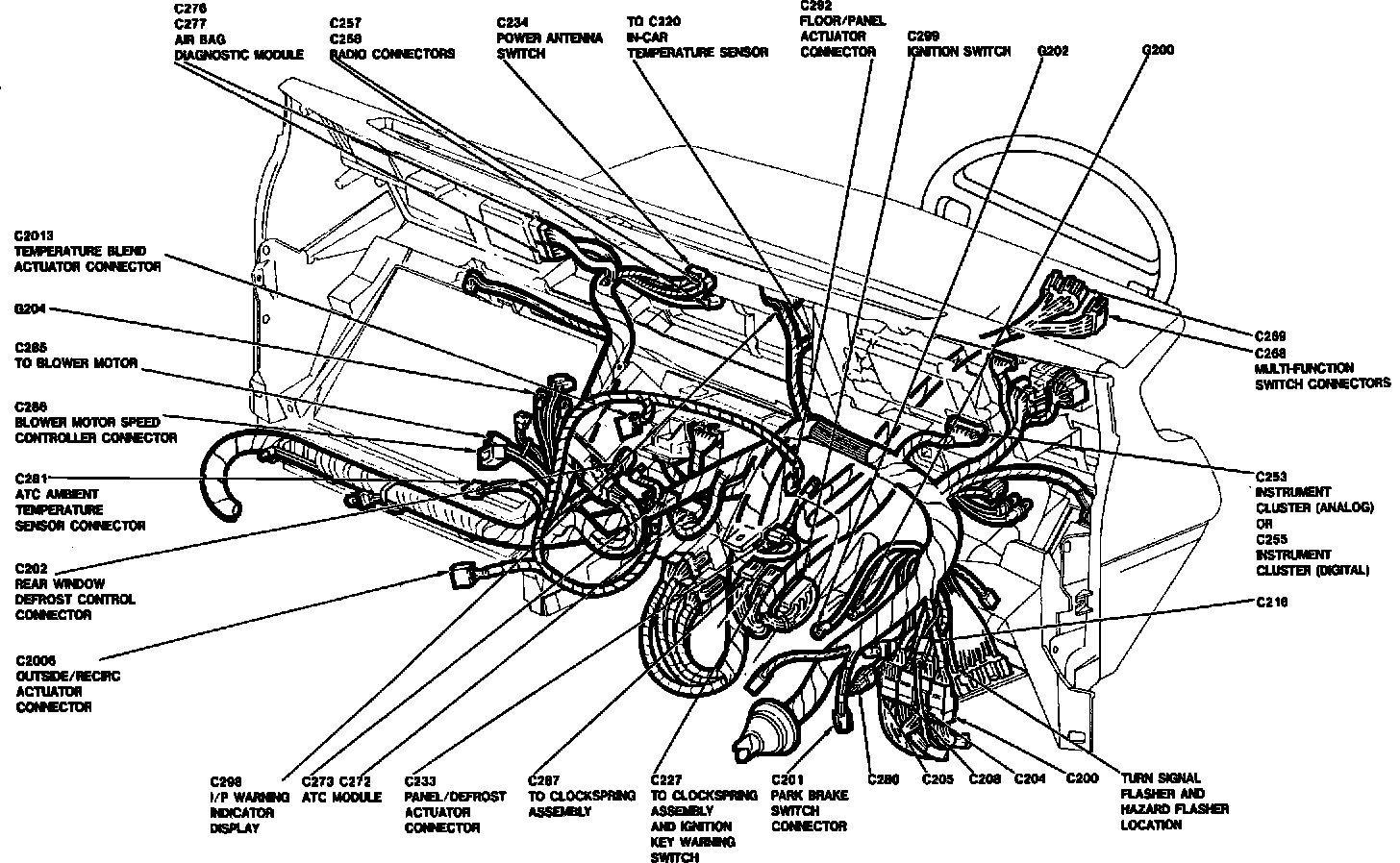

Control Module HVAC: Locations

I/P Components:




Behind Center Of I/P
