Refrigerator

Refrigerator









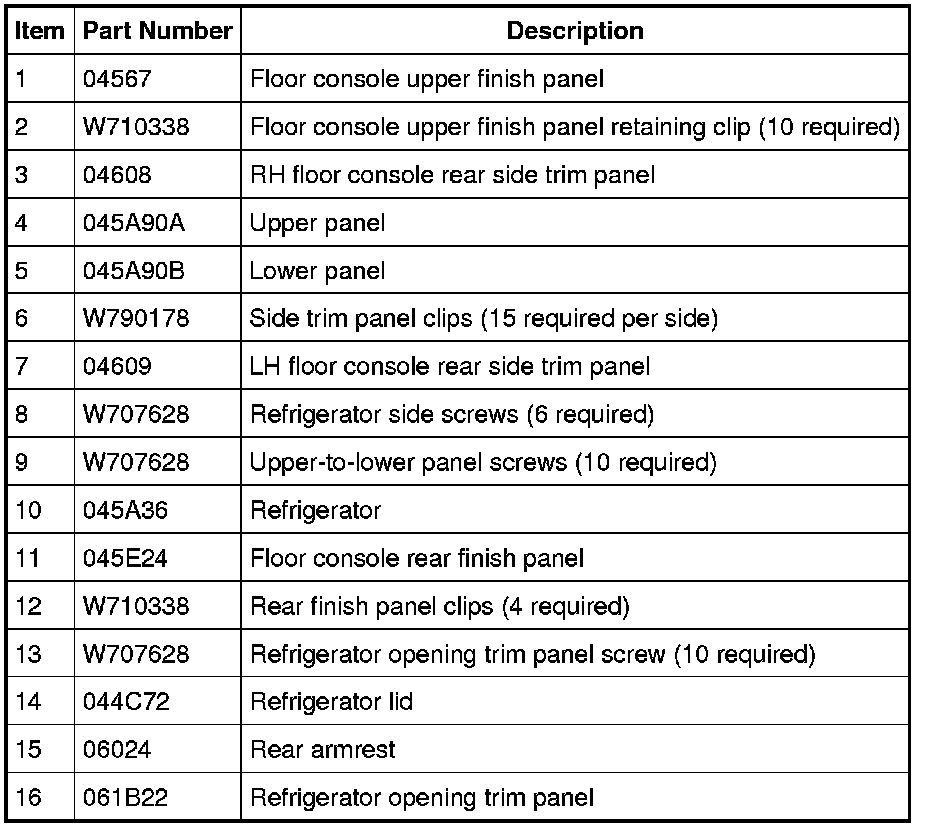

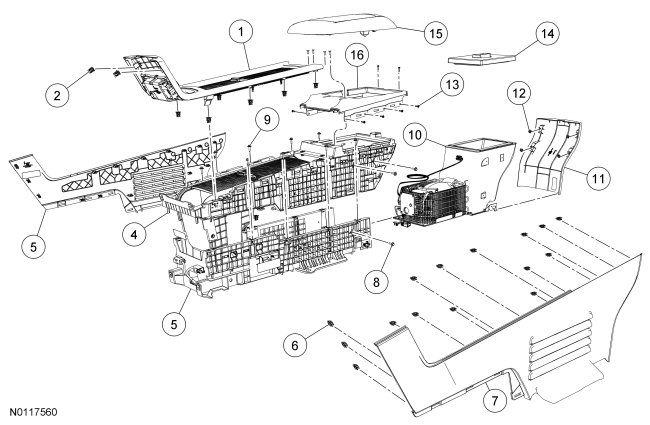

Removal and Installation

1. Remove the rear floor console. For additional information, refer to Console - Long, Floor Console - Long, Floor.

2. Remove the refrigerator module lid.

3. Remove the 10 refrigerator opening trim panel screws and remove the refrigerator opening trim panel.

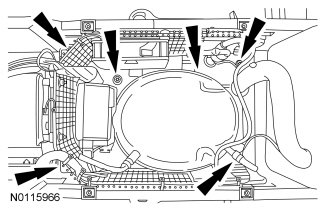

4. Disconnect the power point connector.

5. Disconnect the temperature switch connector.

6. Disconnect the 16 pin electrical connector.

7. Release the electrical harness push pins.

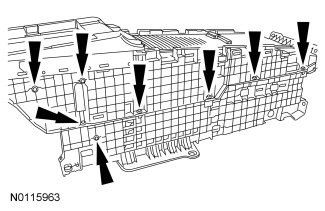

8. Separate the upper and lower console inner structure panels by removing the 8 screws on each side.

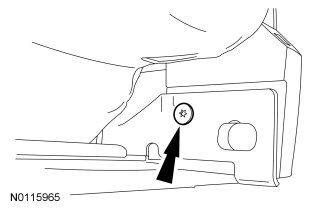

9. Remove the two torx screws from the lower rear of the refrigerator.





10. Remove the six torx screws from the refrigerator.





11. Remove the refrigerator.

12. To install, reverse the removal procedure.
- Transfer parts as needed.

- Make sure to align the trim panel retaining clips to the retaining clip holes in the rear floor console.
