Lincoln Truck
>>
2011
>>
MKT AWD V6-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Temperature Control Module
>>

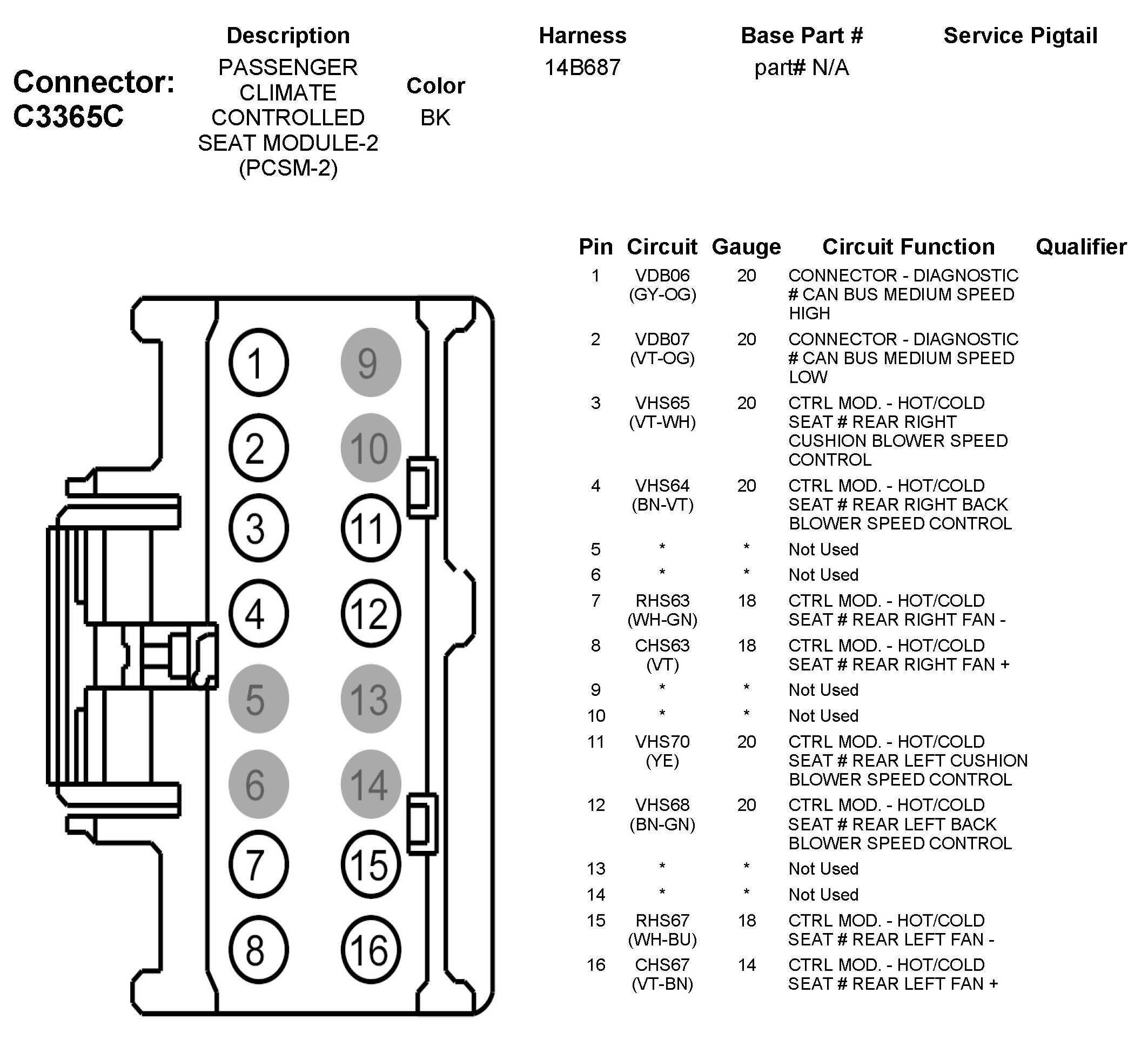

C3365C Passenger Climate Controlled Seat Module-2 (PCSM-2)
C3365C Passenger Climate Controlled Seat Module-2 (PCSM-2)
