Seat - Exploded View, Third Row




Seat - Exploded View, Third Row

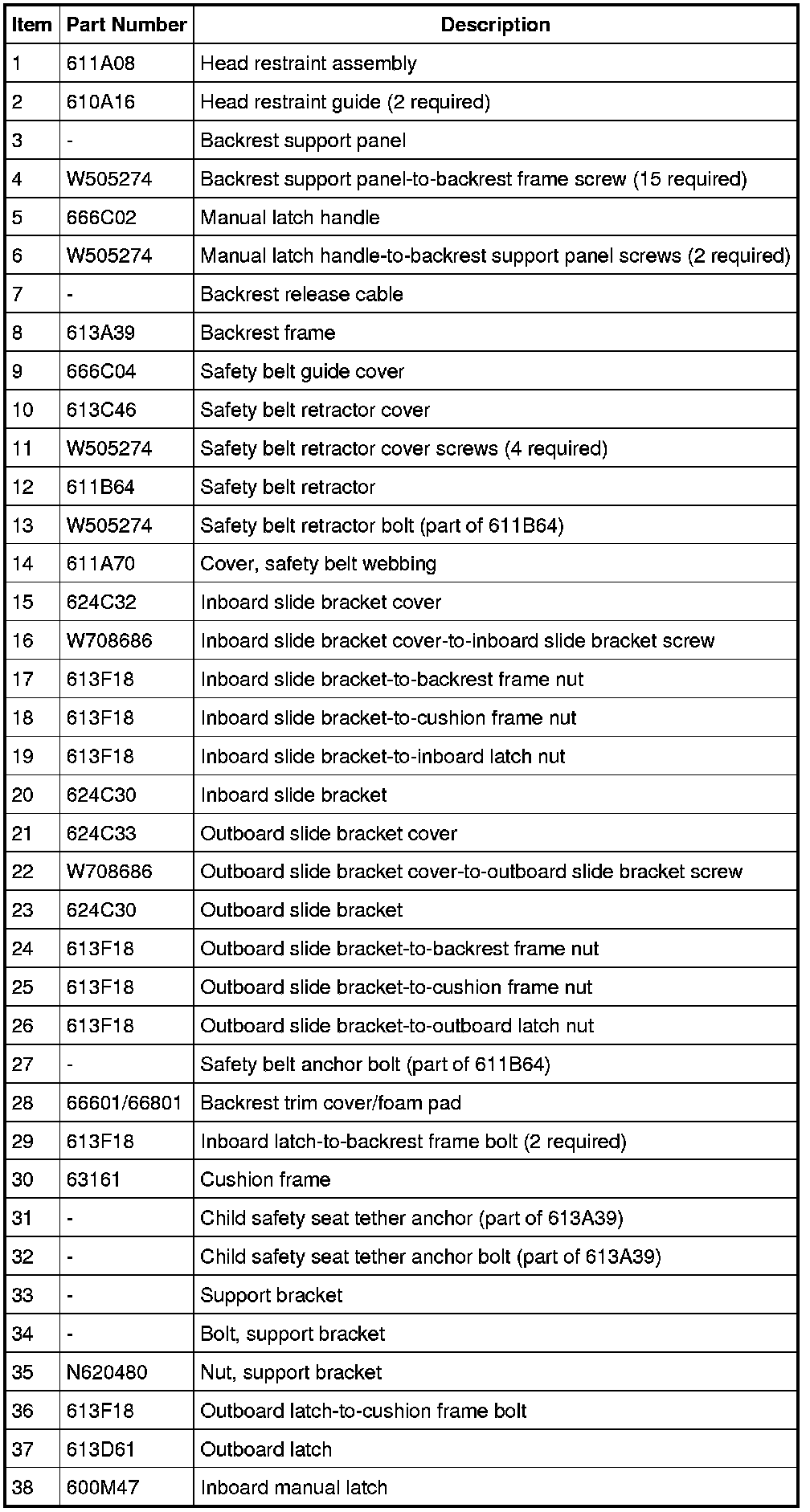

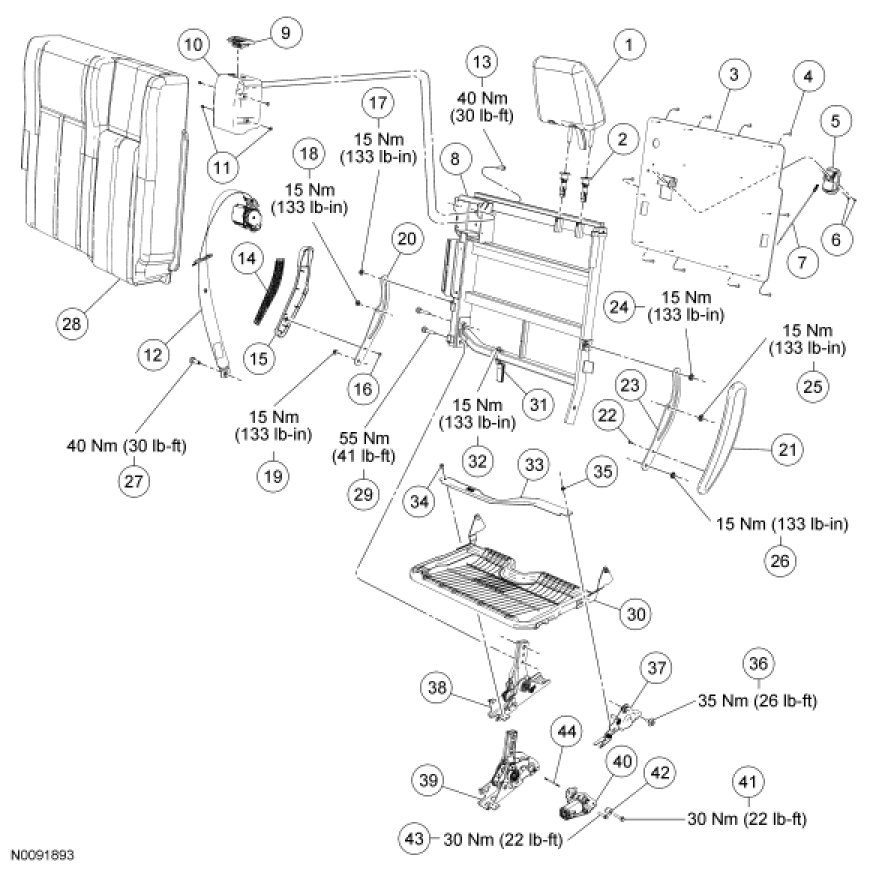

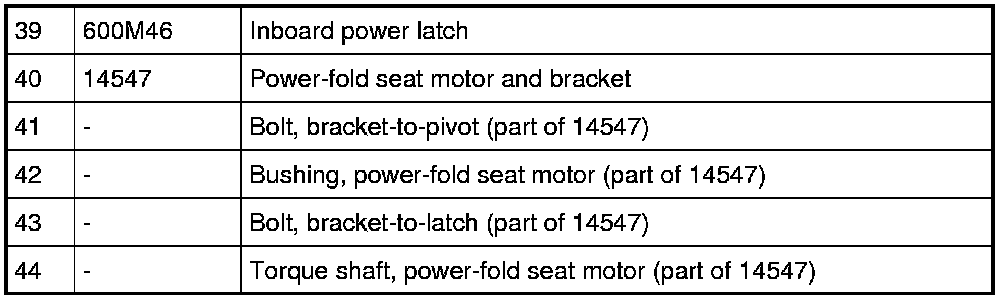

Seat Backrest - 40 percent

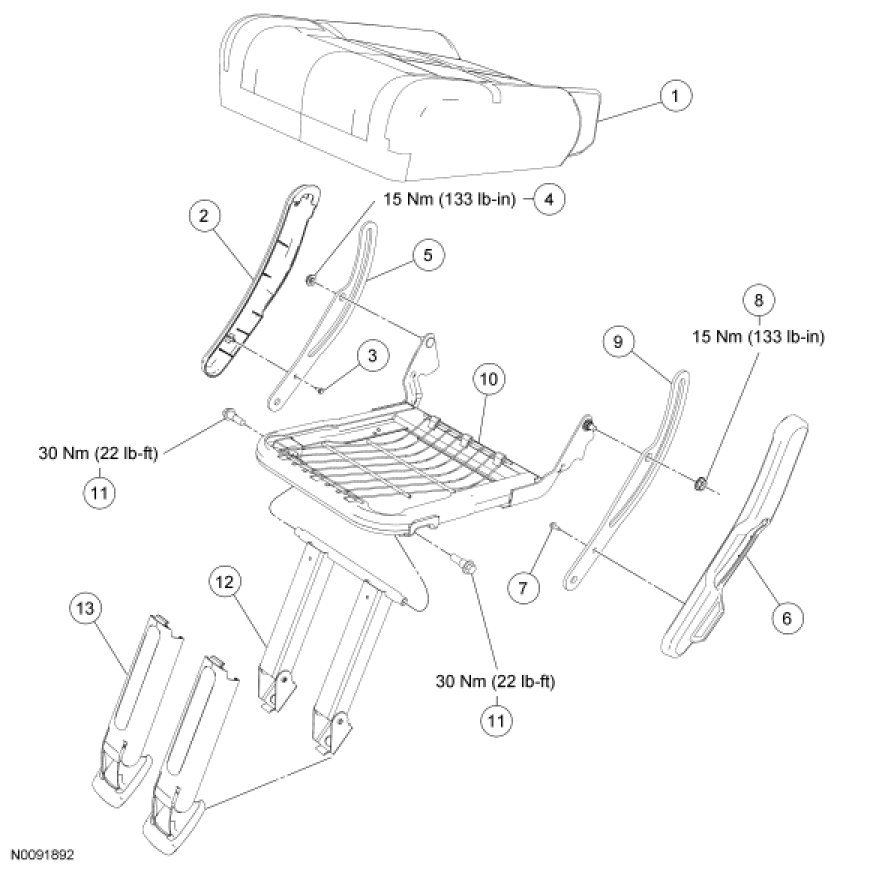

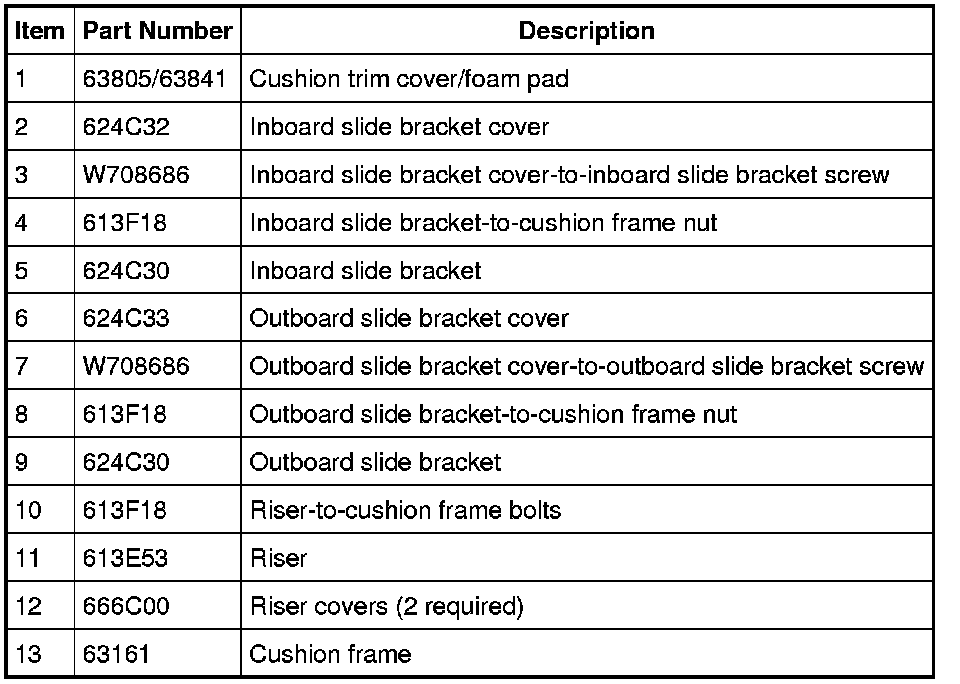

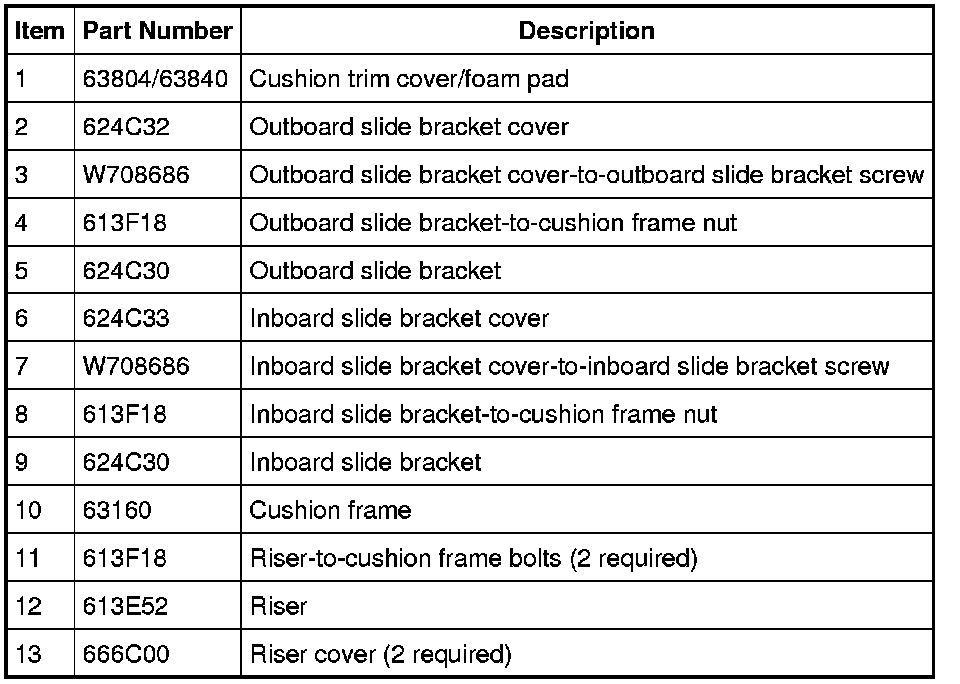

Seat Cushion - 40 Percent

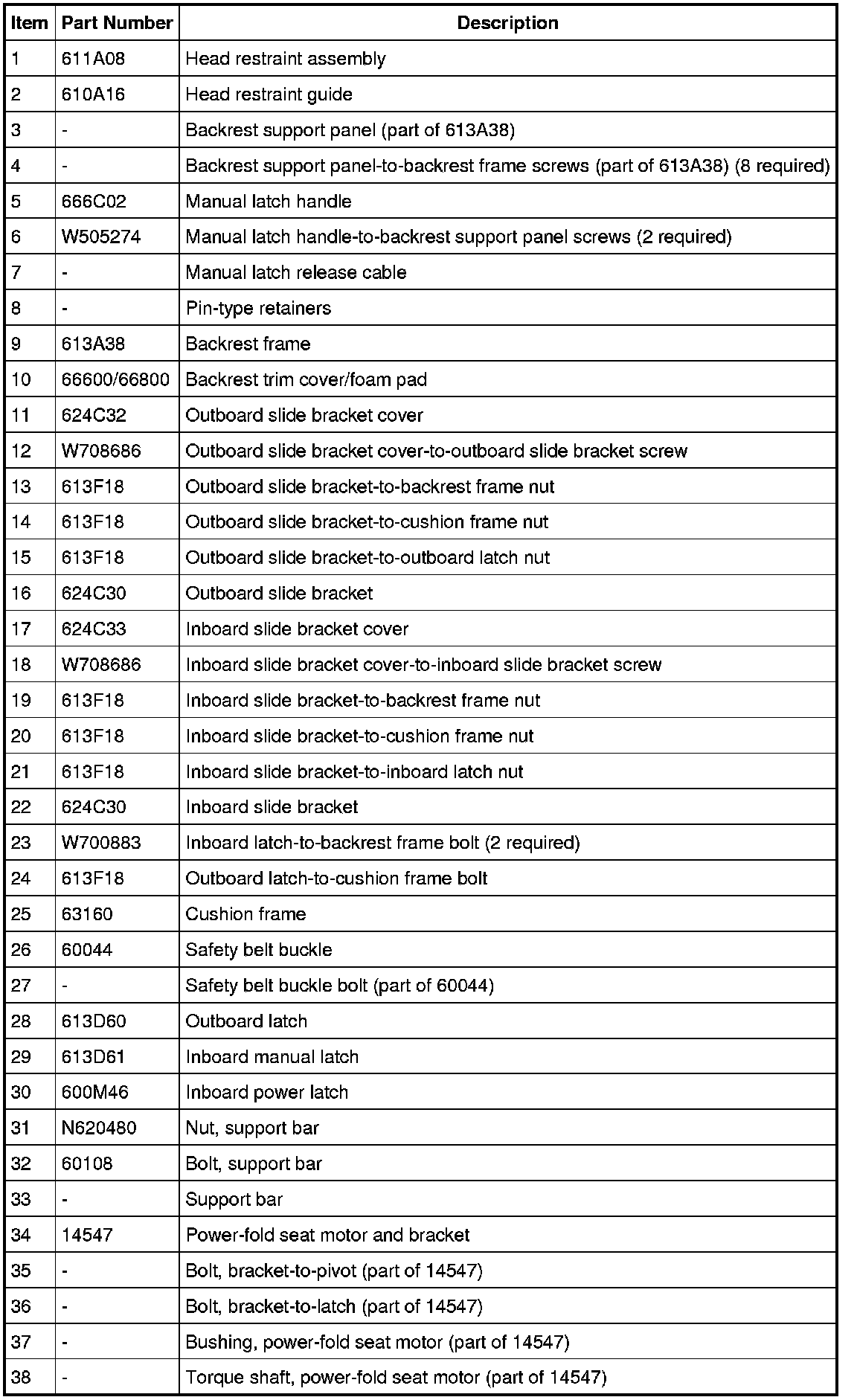

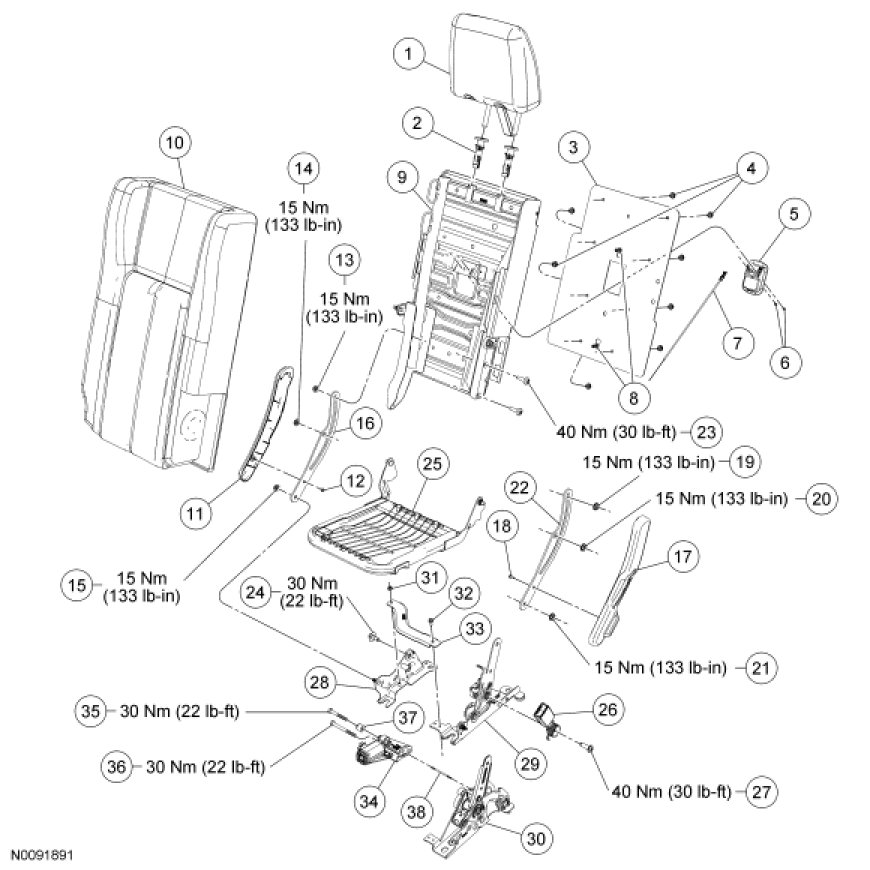

Seat Backrest - 60 Percent

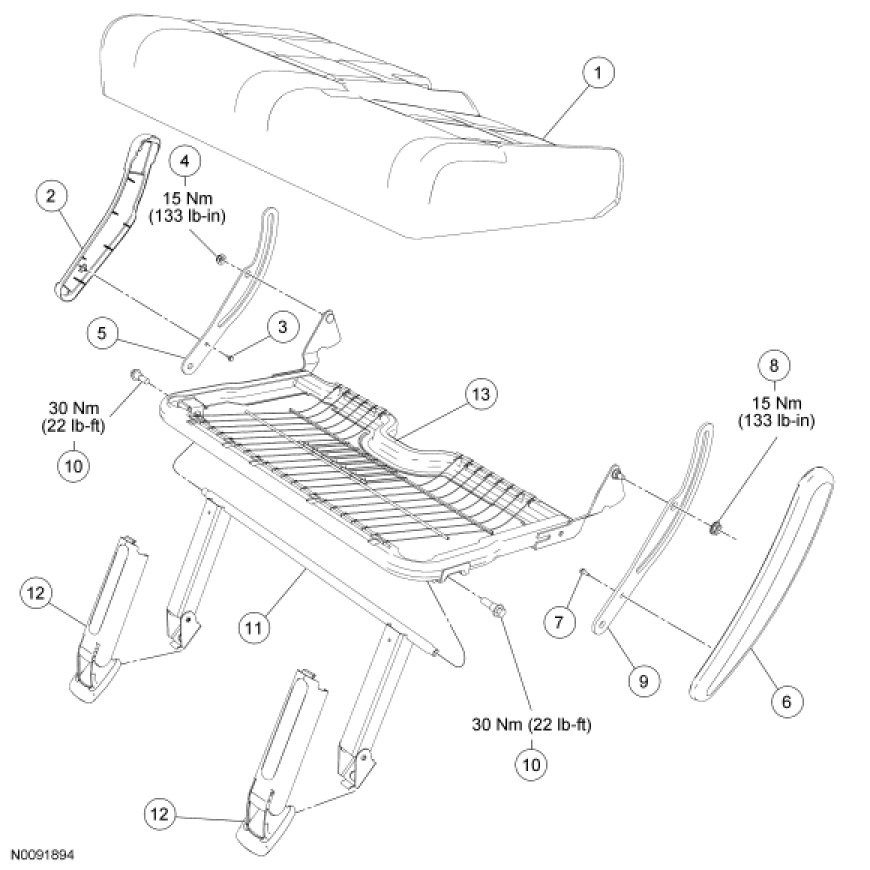

Seat Cushion - 60 Percent
