Exploded View Images

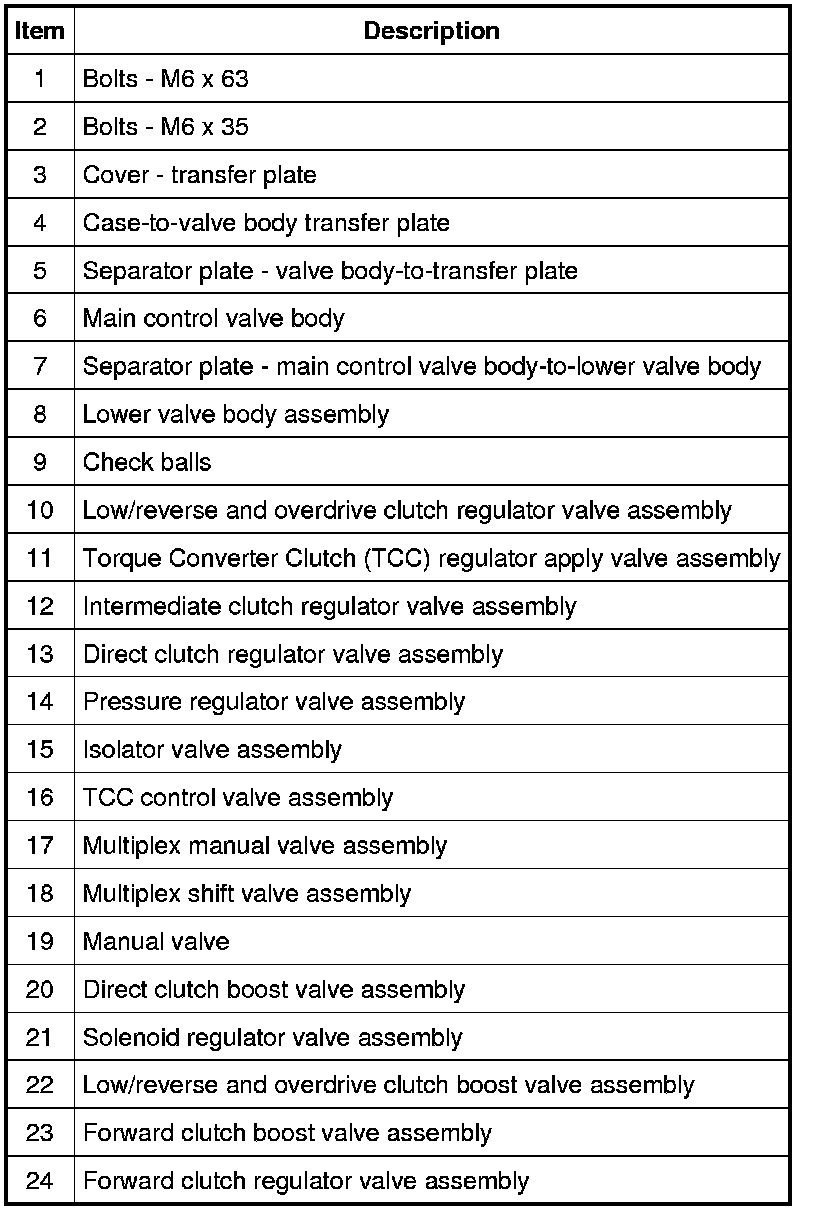

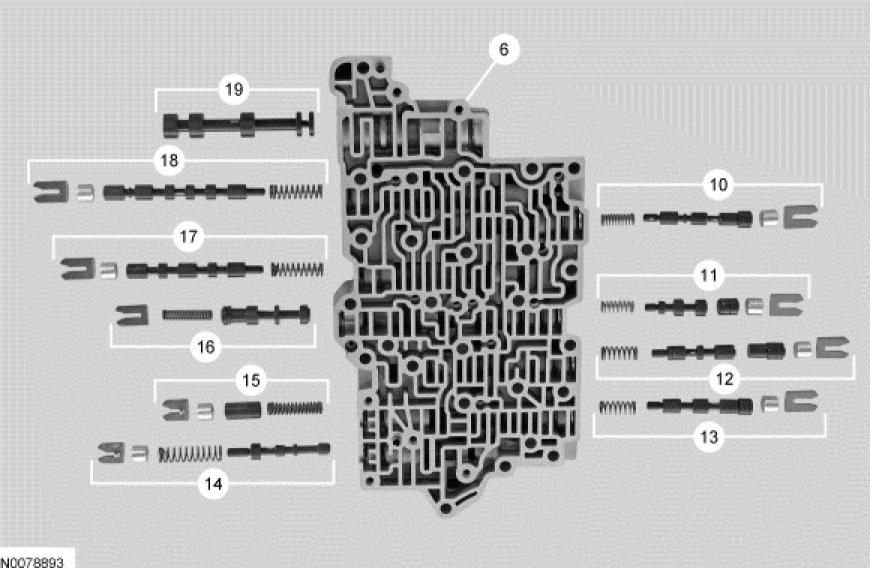

Main Control Valve Body

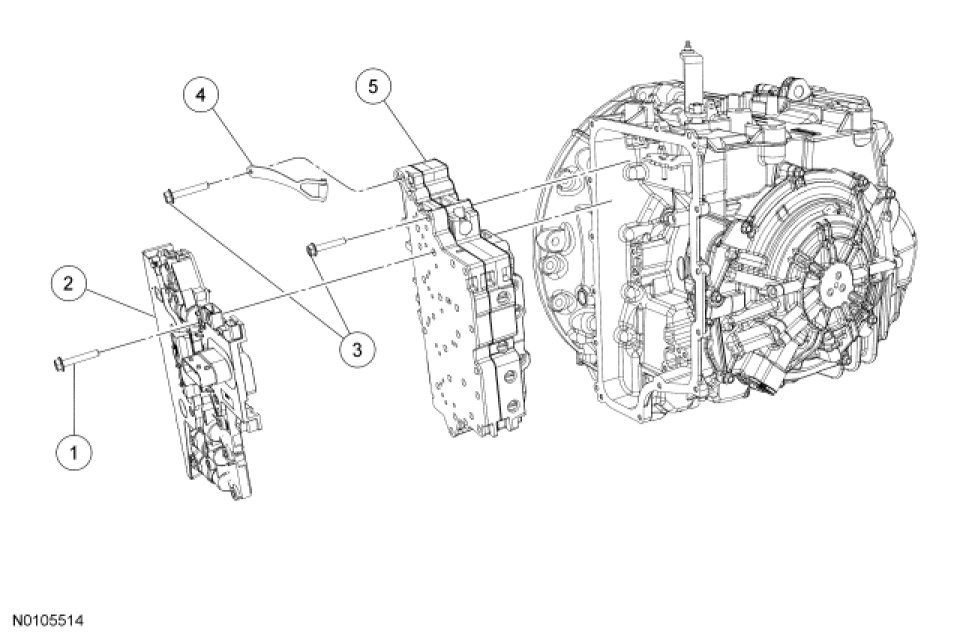

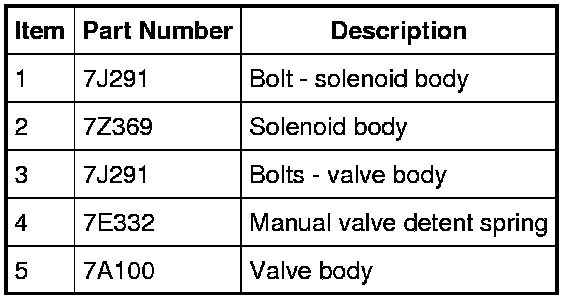

Valve Body

Valve Body:

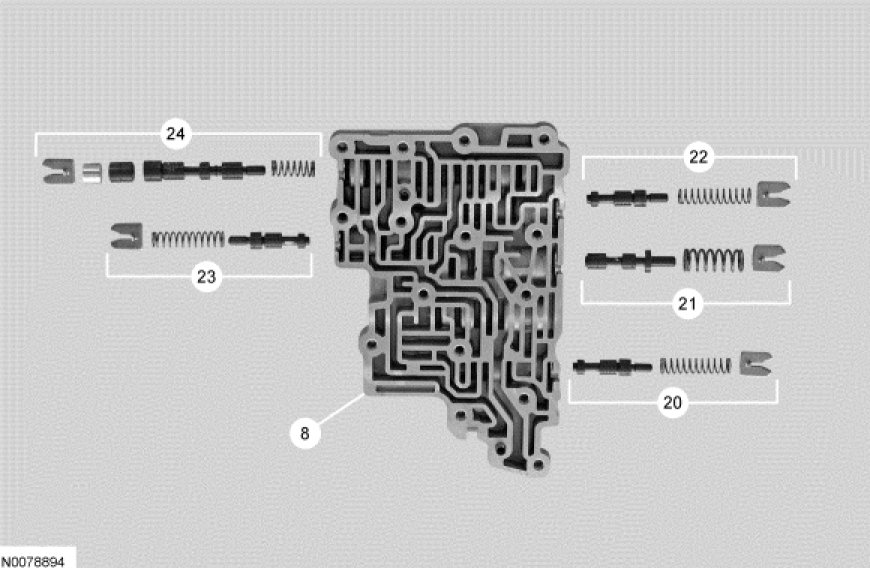

Lower Valve Body

Lower Valve Body:
