Ignition Lock Cylinder - Functional

Ignition Lock Cylinder - Functional









Removal and Installation

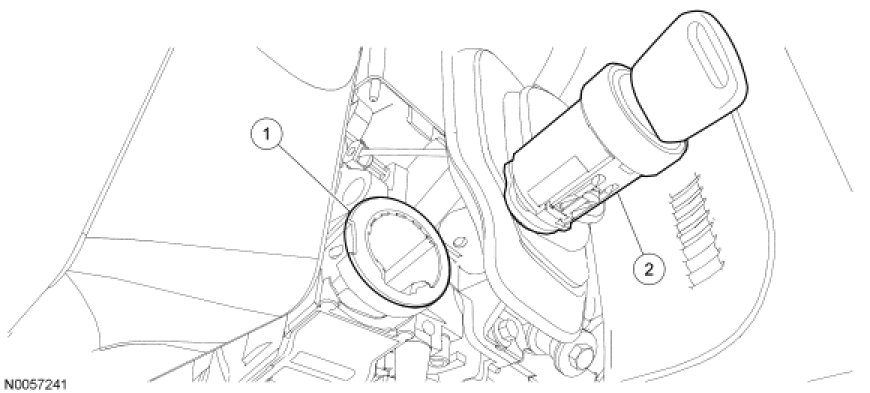

1. Remove the Passive Anti-Theft System (PATS) transceiver.

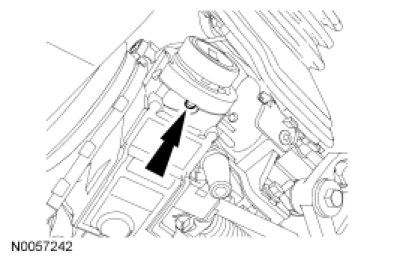

2. NOTE: The ignition lock cylinder must be in the RUN position.

Using a suitable tool, press the release pin and remove the ignition lock cylinder.





3. If a new lock cylinder with keys is replaced, the new PATS keys must be programmed.

4. To install, reverse the removal procedure.
- Verify the ignition lock cylinder operation.
