Lincoln Truck
>>
2009
>>
Navigator 2WD V8-5.4L
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
>>
Overhaul Specs
Overhaul Specs

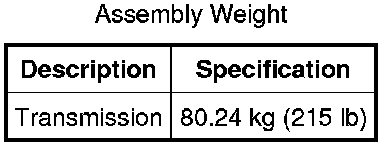

Assembly Weight:

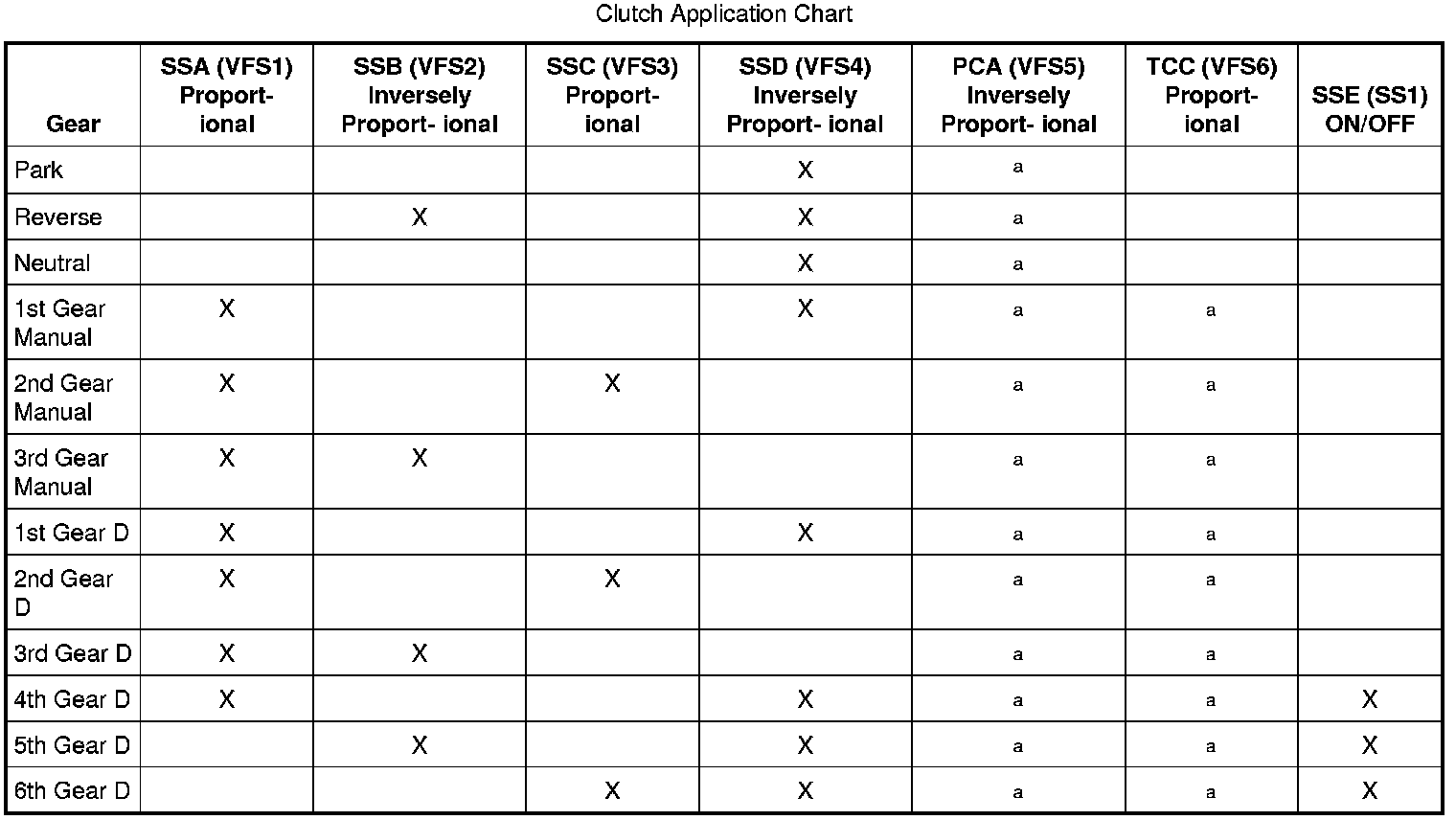

Clutch Application Chart:

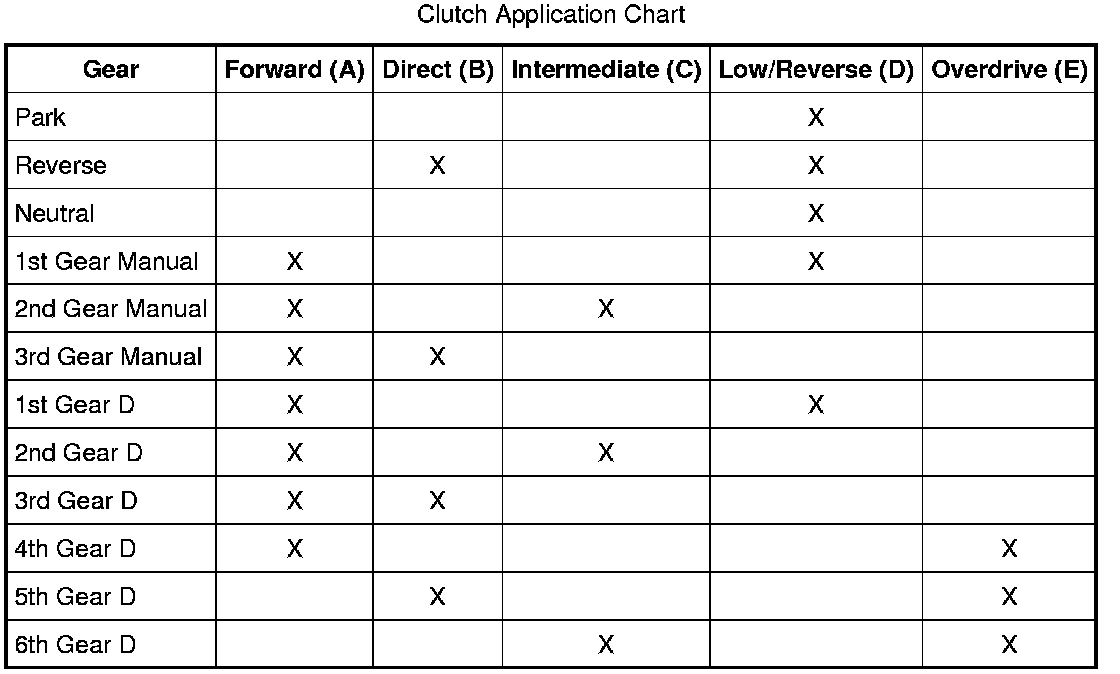

Clutch Application Chart:
a Transmission control module (TCM) controlled

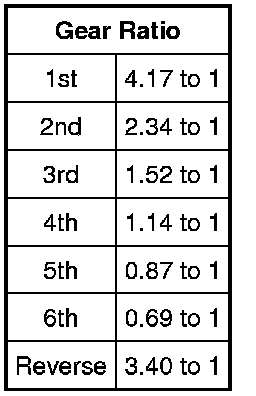

Gear Ratio:
Stall Speed:

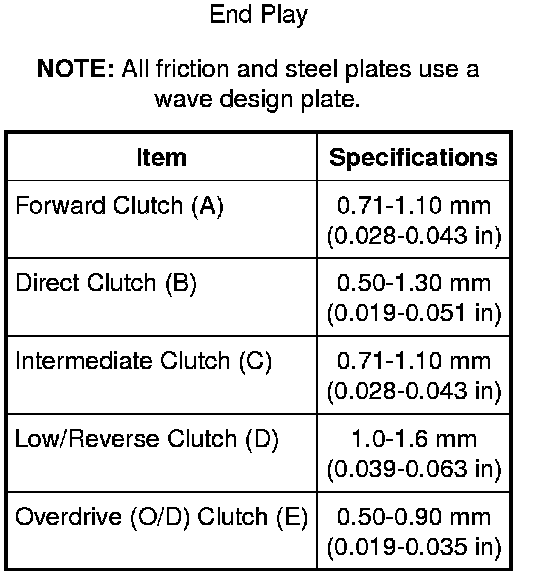

End Play:

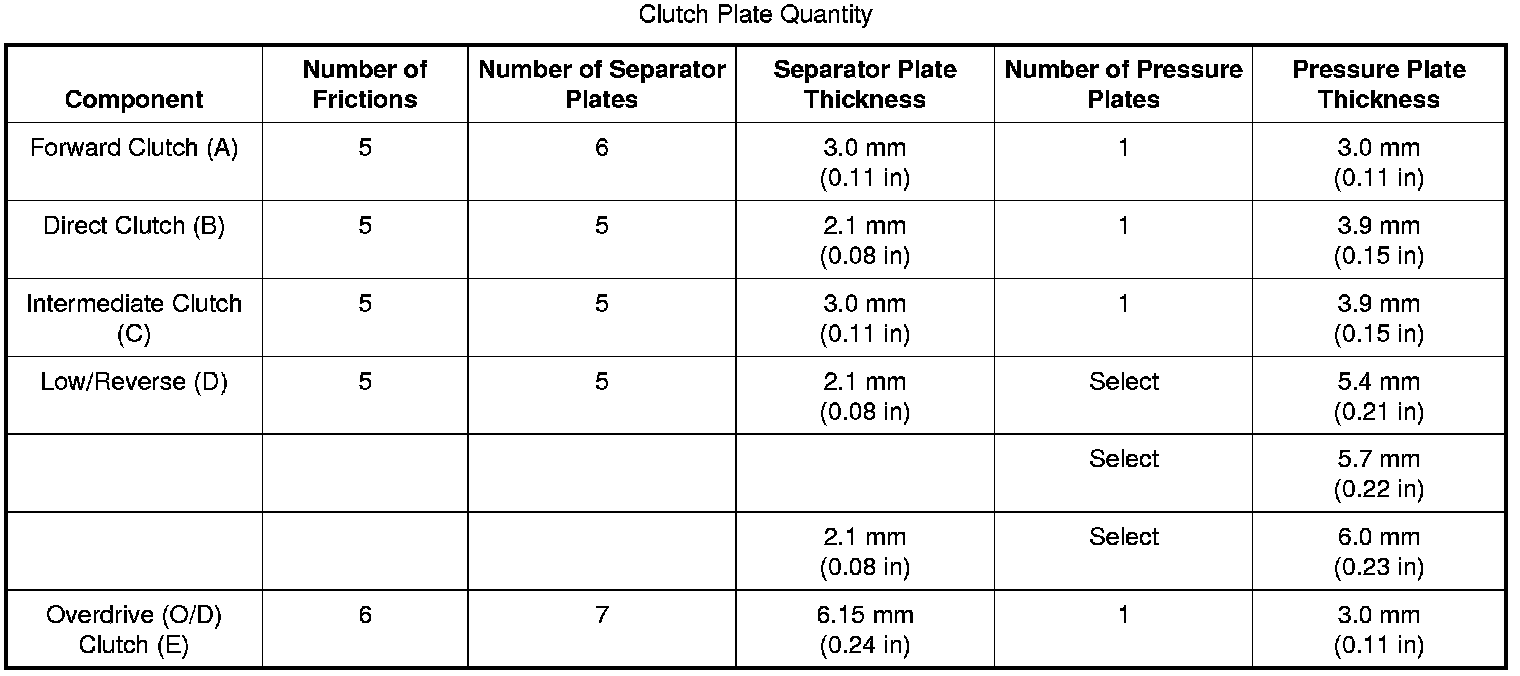

Clutch Plate Quantity:

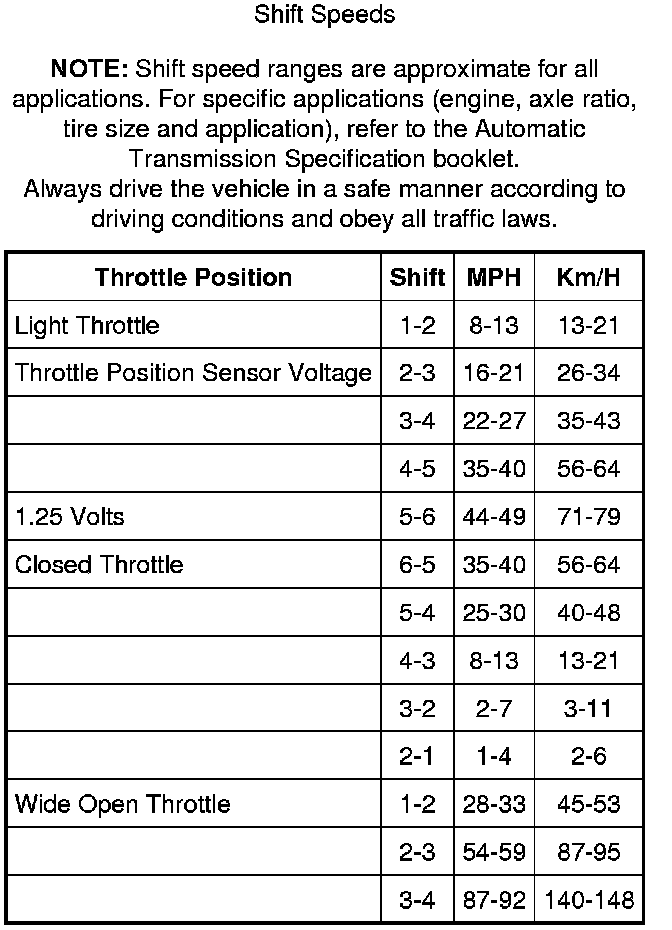

Shift Speeds:
