Home
>>
Lincoln Truck
>>
2009
>>
Navigator 2WD V8-5.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>
Mechatronic Assembly
Mechatronic Assembly
Mechatronic Assembly

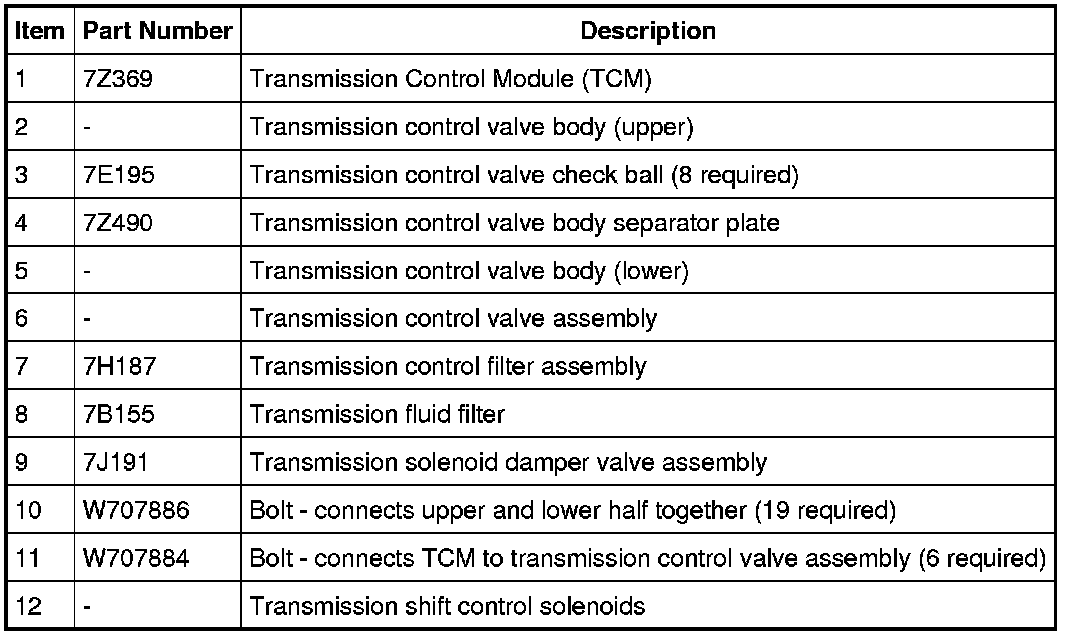

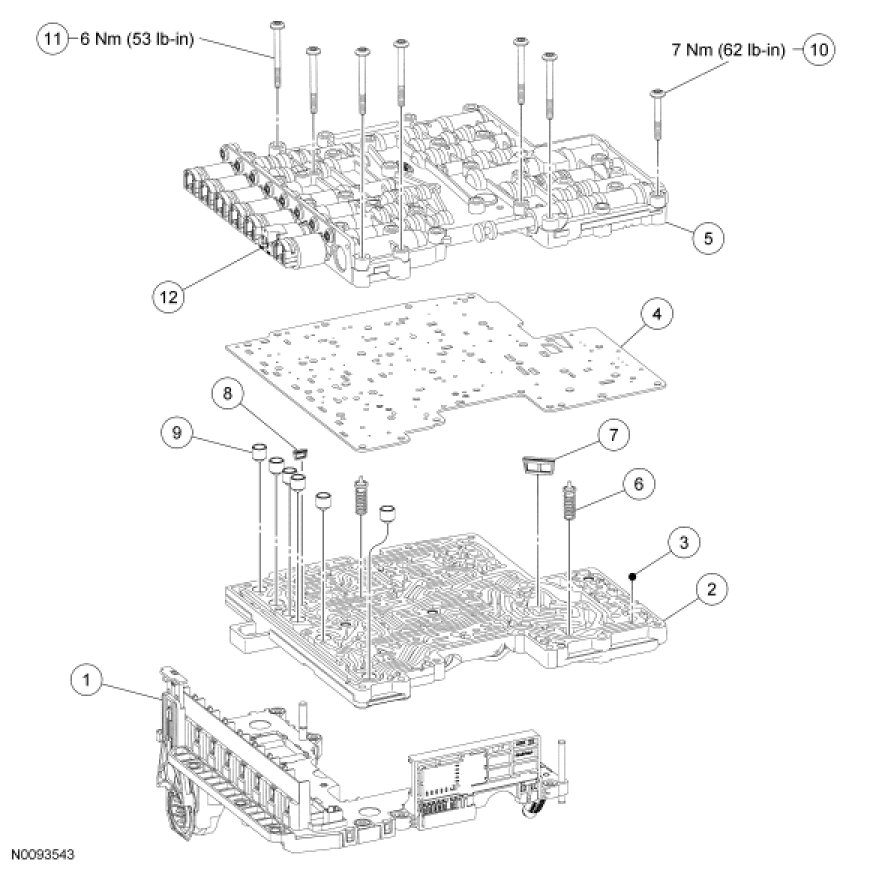

Mechatronic

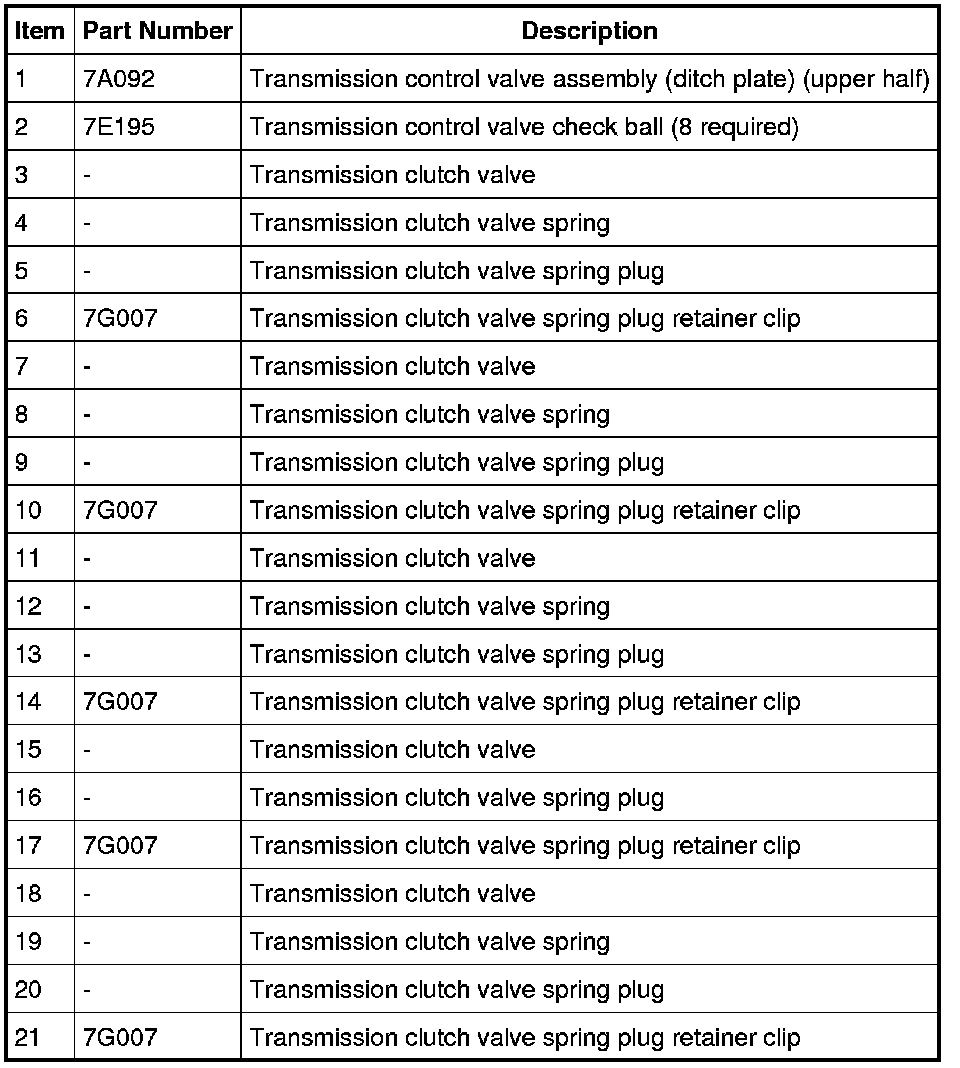

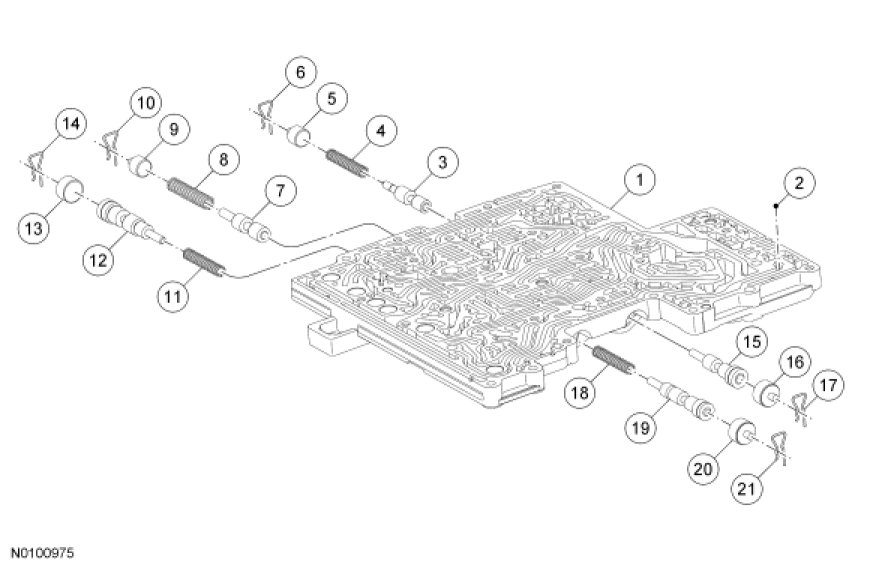

Mechatronic Upper Half

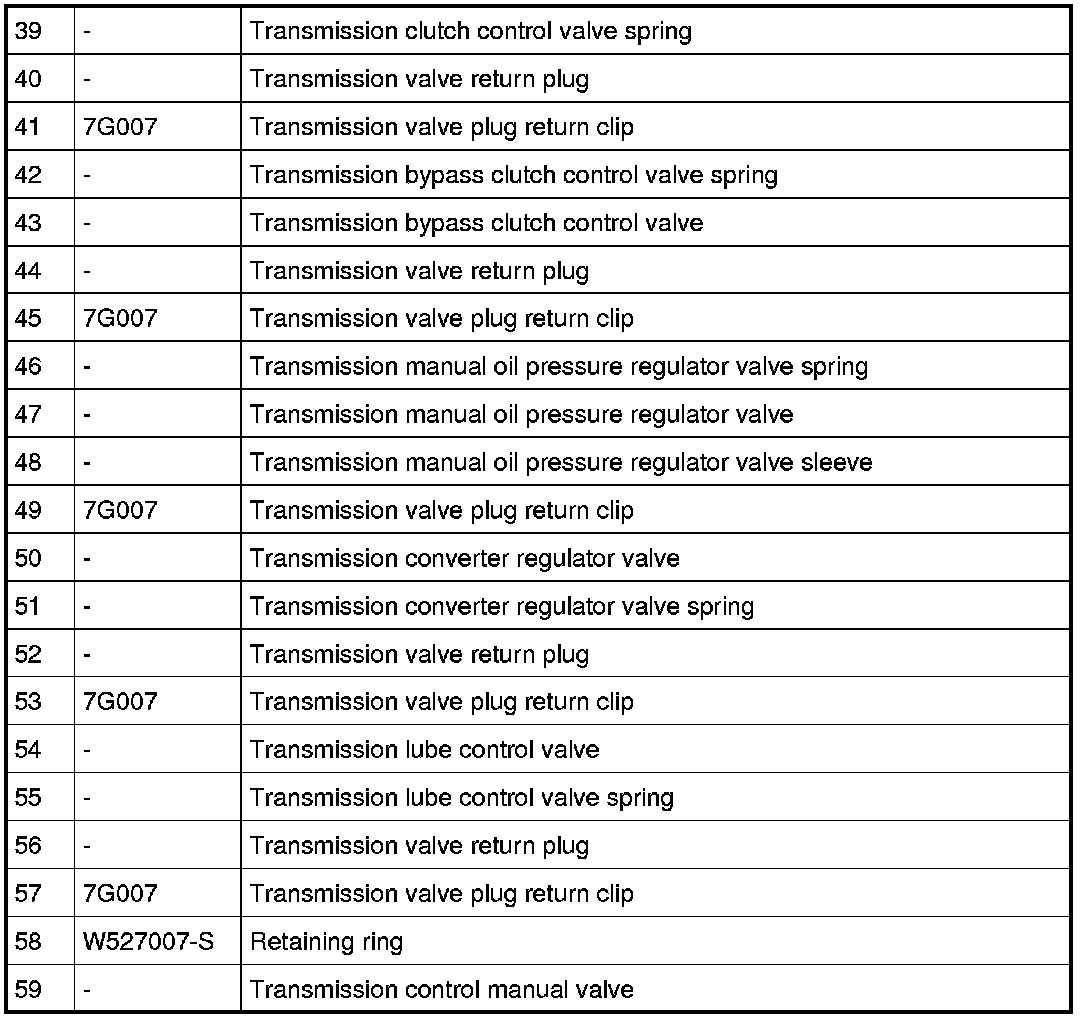

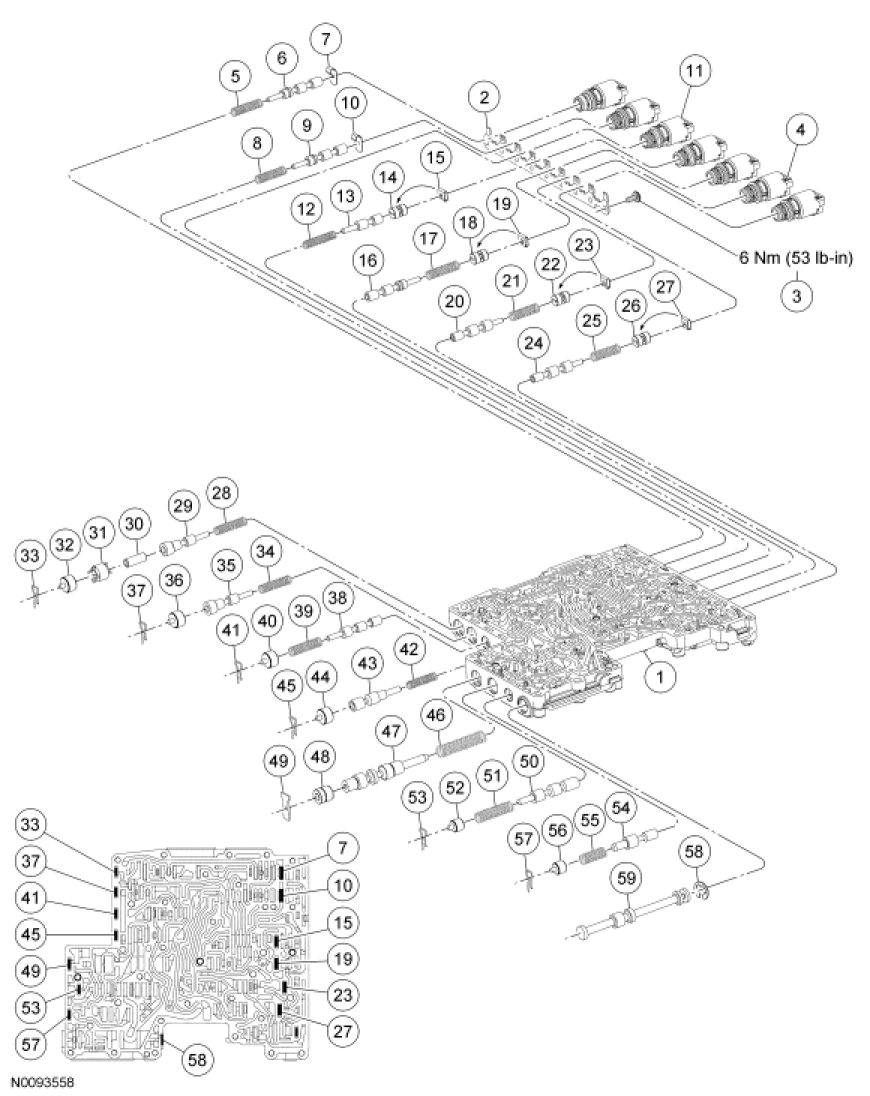

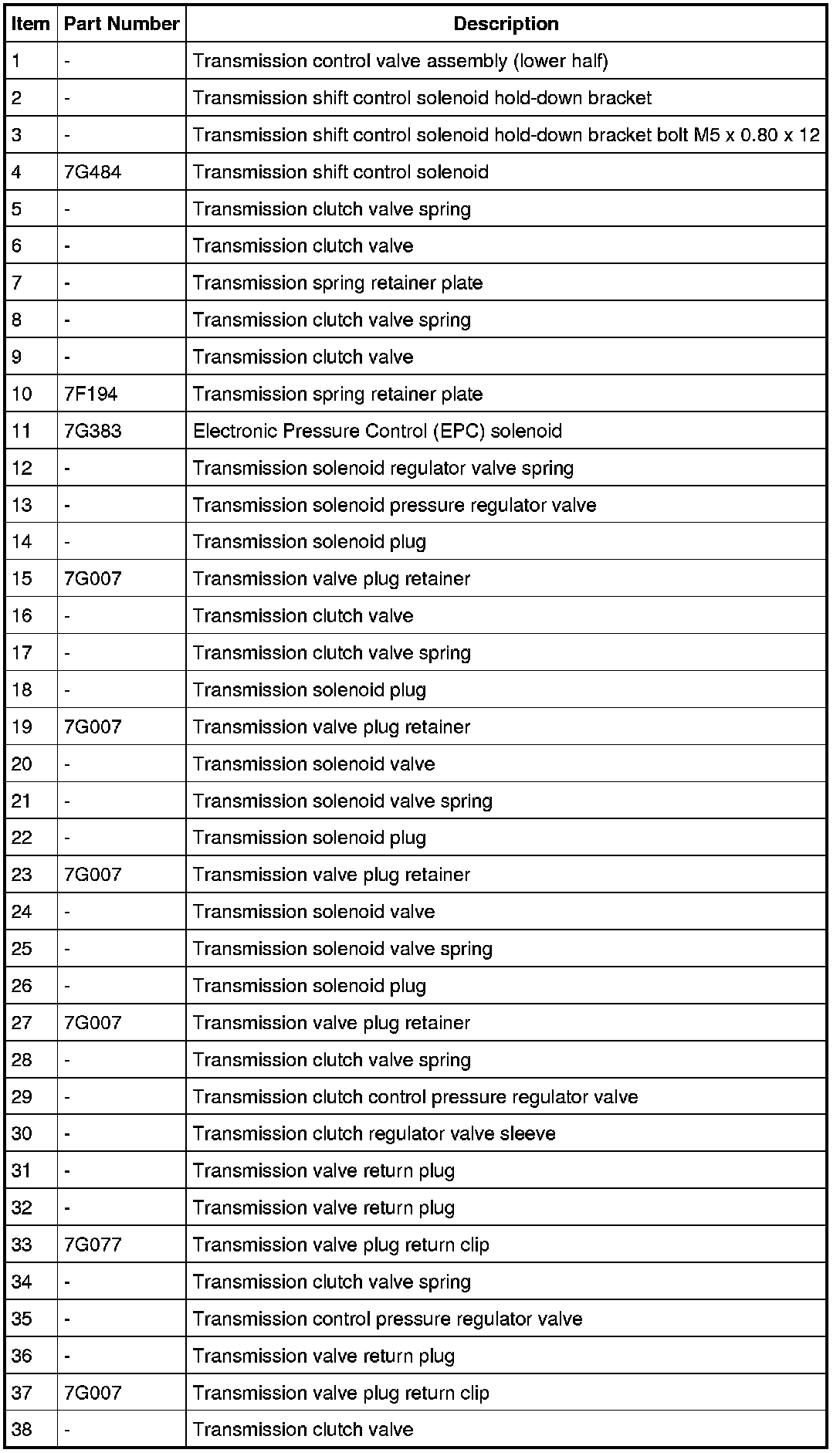

Mechatronic Lower Half

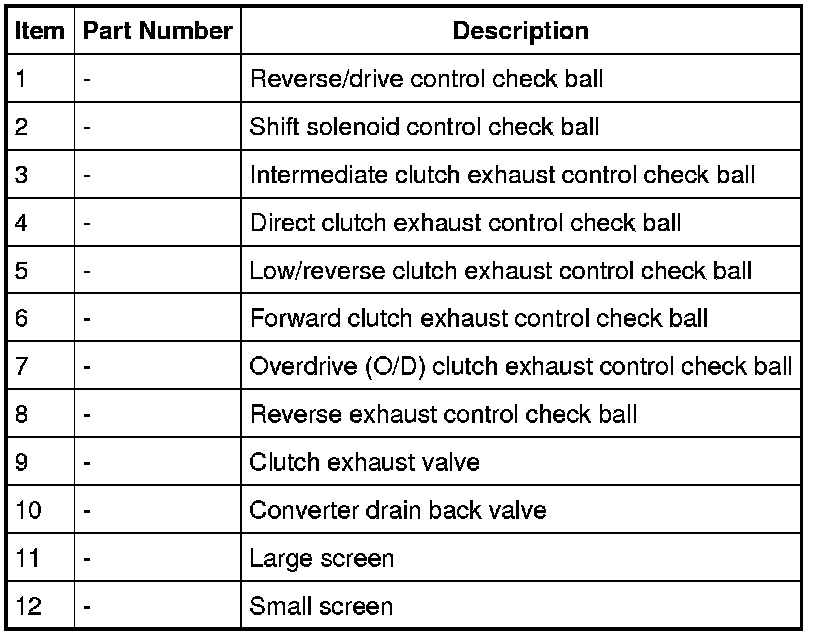

Check Ball Location
