Test H: Navigation System Does Not Operate Correctly - Unable To Insert Or Eject A MAP Disc

PINPOINT TEST H: NAVIGATION SYSTEM DOES NOT OPERATE CORRECTLY - UNABLE TO INSERT OR EJECT A MAP DISC

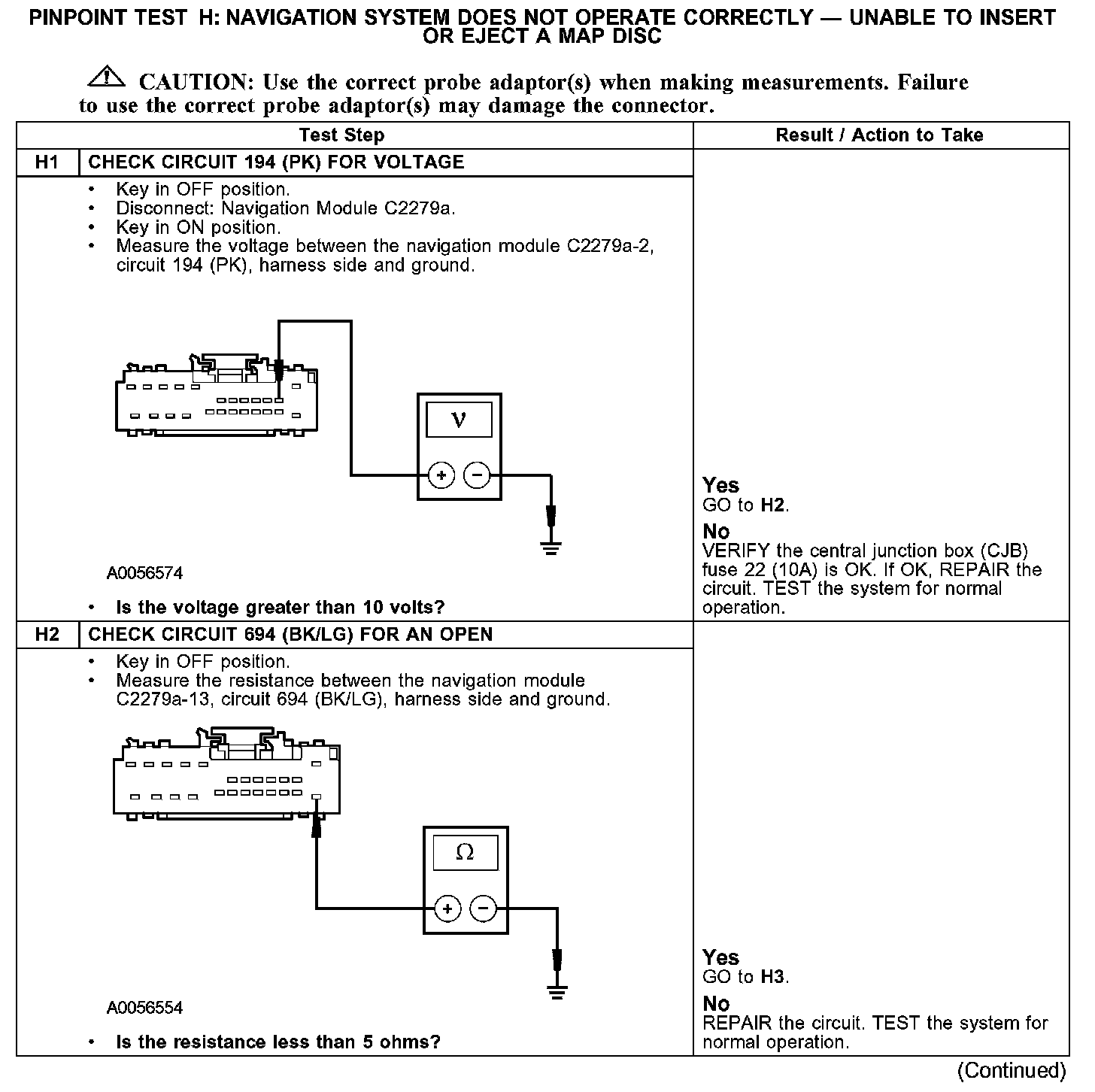

H1-H2:

H3:

Normal Operation
The navigation map disc is contained in the navigation module. The voltage is supplied to the navigation module with the key in the ON or ACC position through circuit 194 (PK). Circuit 694 (BK/LG) supplies the navigation module ground.

Possible Causes
- fuse
- circuit 194 (PK) open
- circuit 694 (BK/LG) open
- navigation module
