Lincoln Truck
>>
2003
>>
Aviator 2WD V8-4.6L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module HVAC
>>

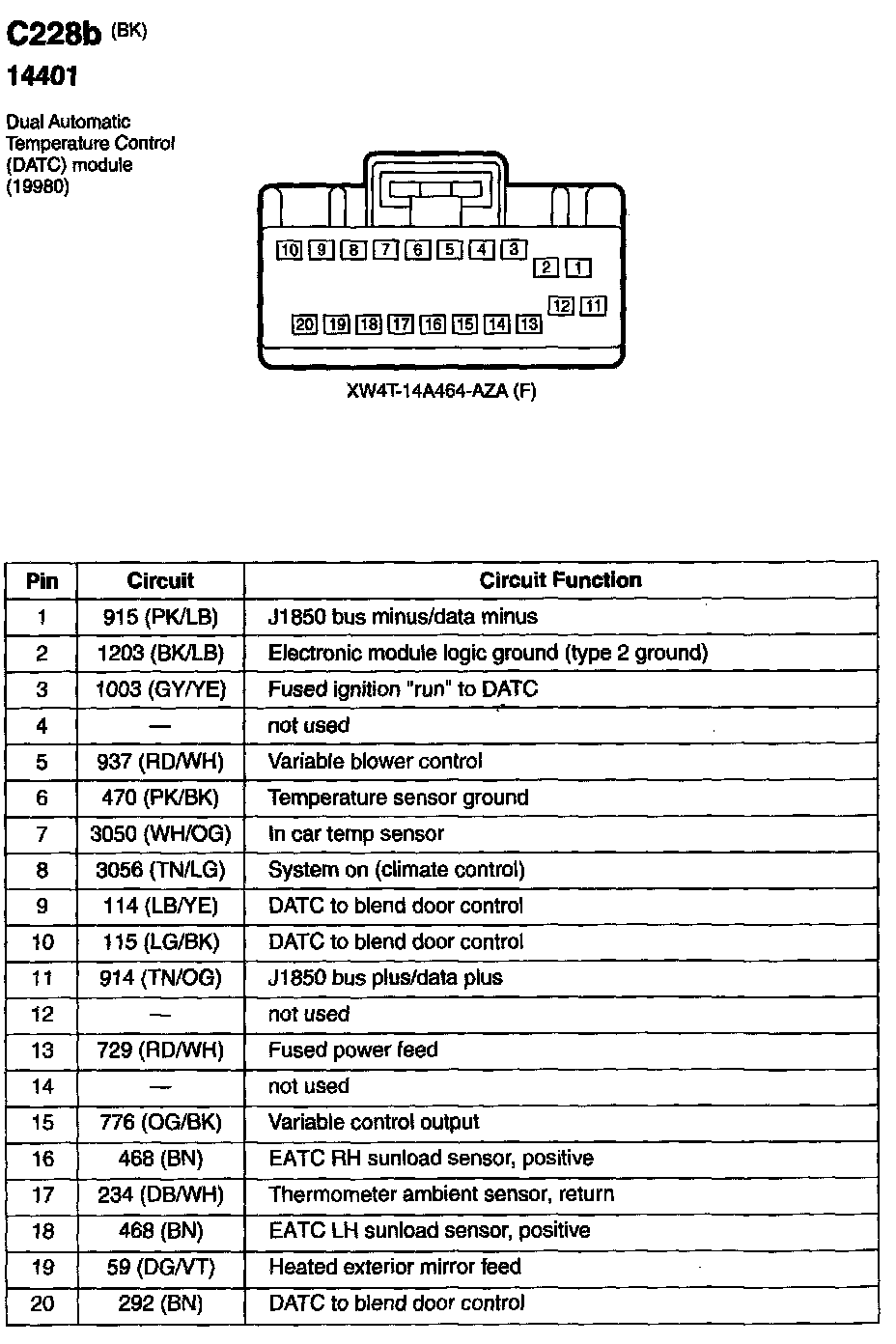

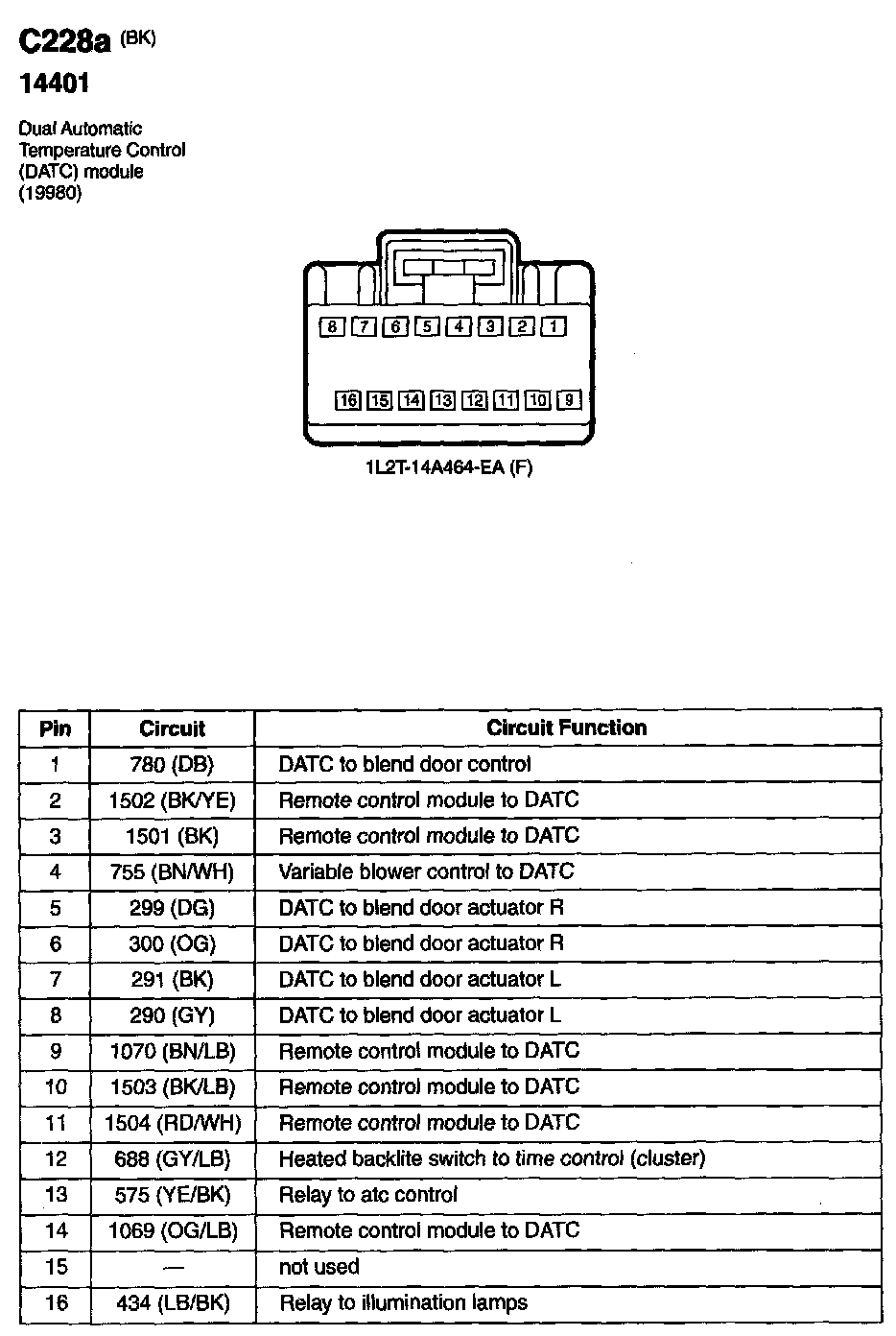

Dual Automatic Temperature Control Module
Dual Automatic Temperature Control Module
