Lexus
>>
2012
>>
LS 600h V8-5.0L (2UR-FSE) Hybrid
>>
Repair and Diagnosis
>>
Hybrid Drive Systems
>>
Power Control System
>>
Hybrid Power Control Module
>>
Service and Repair
>>
Components
Components

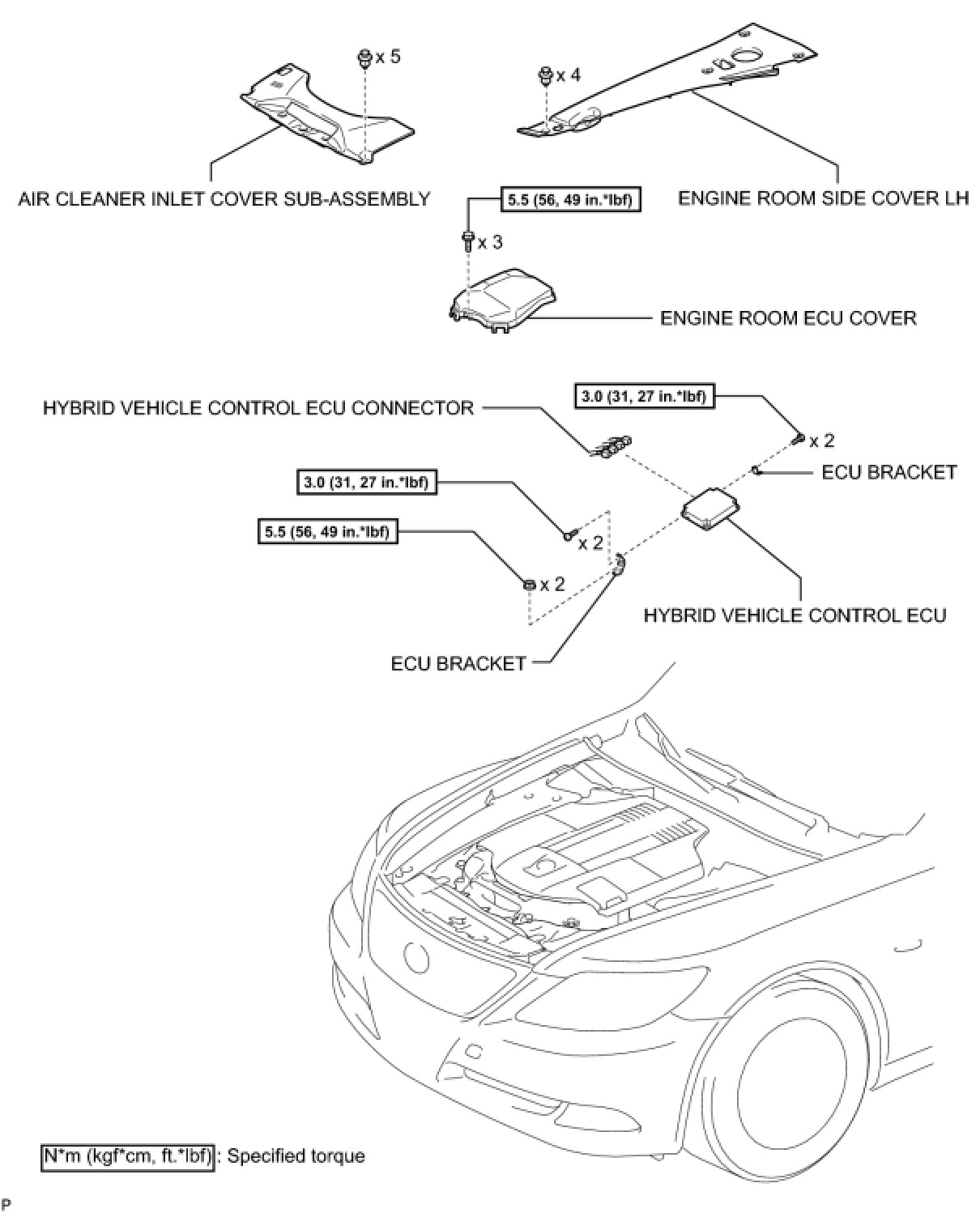

L110F HYBRID VEHICLE CONTROL: HYBRID VEHICLE CONTROL ECU: COMPONENTS
