Home >> Lexus >> 2012 >> IS F V8-5.0L (2UR-GSE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Temperature Sensor >> Locations

Engine Temperature Sensor: Locations

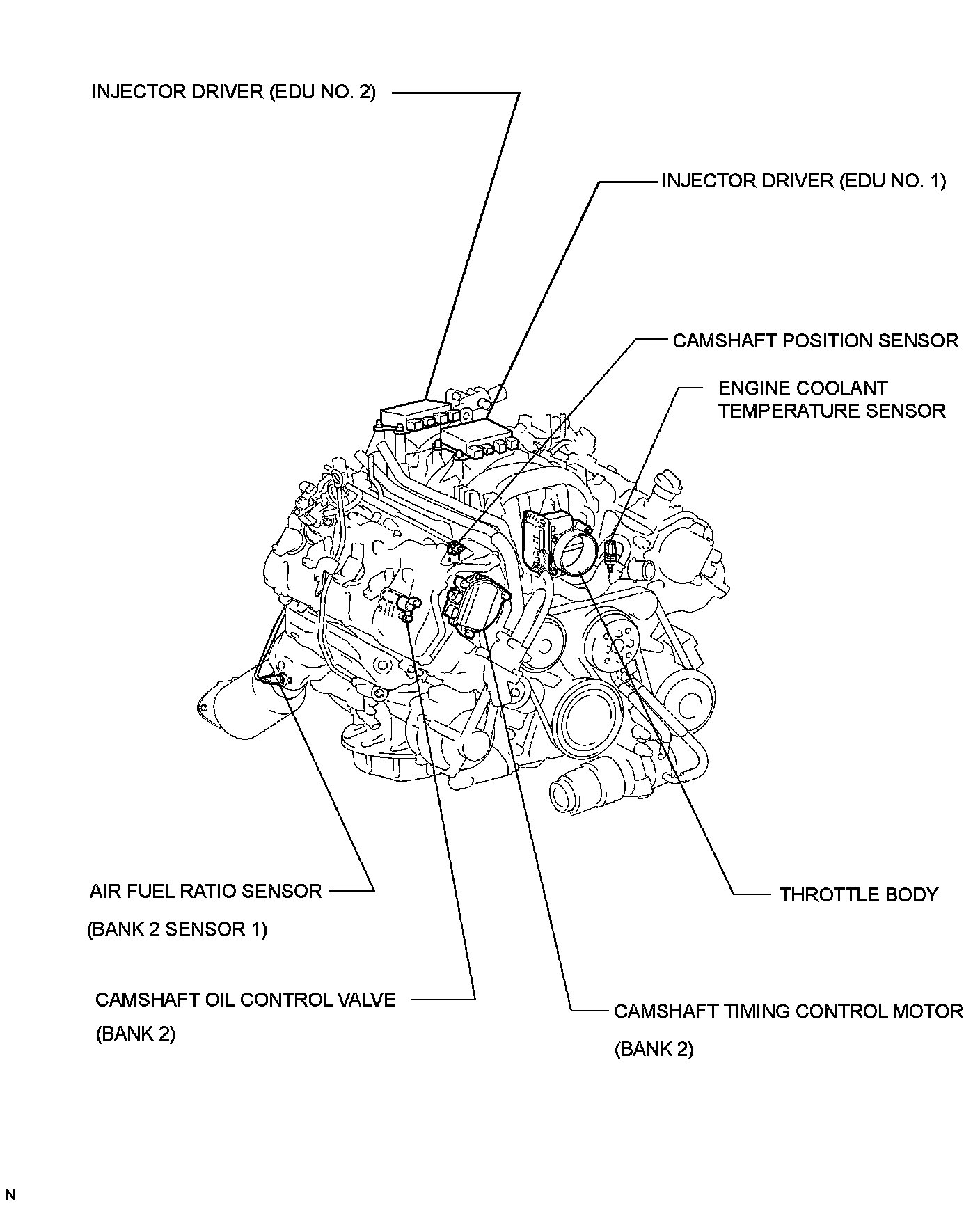

2UR-GSE ENGINE CONTROL: SFI SYSTEM: PARTS LOCATION
