Home
>>
Lexus
>>
2012
>>
IS 250C V6-2.5L (4GR-FSE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Alternator
>>
Service and Repair
>>
Removal and Replacement
>>
Components
Components

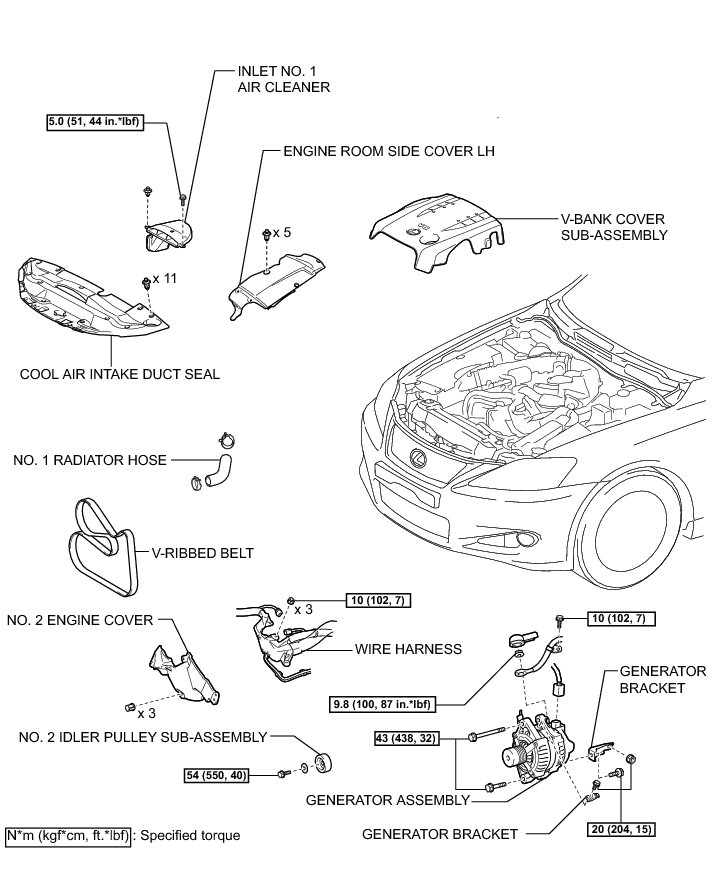

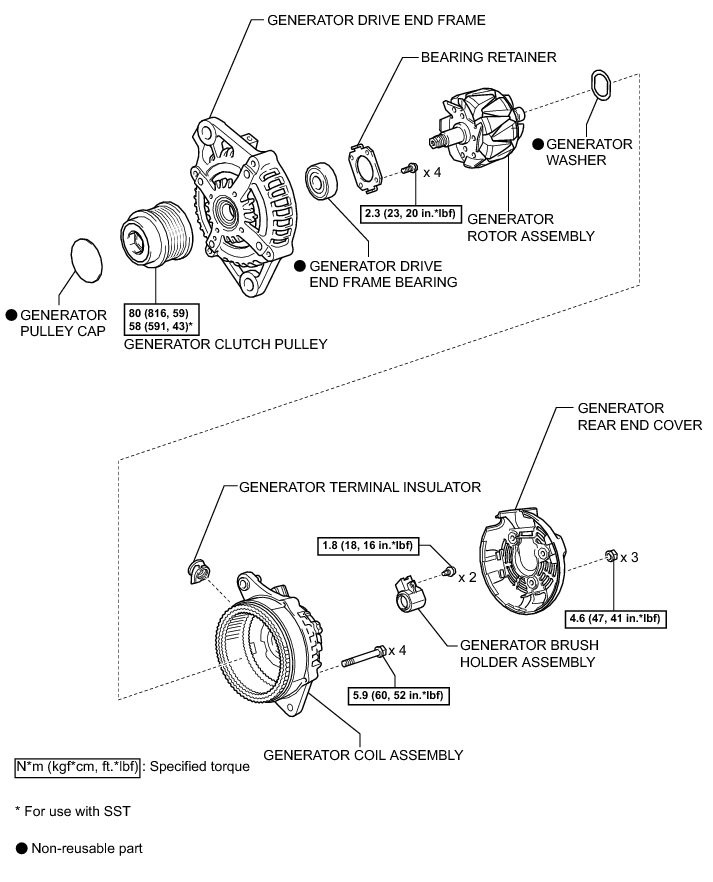

4GR-FSE BATTERY / CHARGING: GENERATOR: COMPONENTS
