Lexus
>>
2012
>>
IS 250 AWD V6-2.5L (4GR-FSE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Variable Valve Timing Actuator
>>
Service and Repair
>>
Components
Components

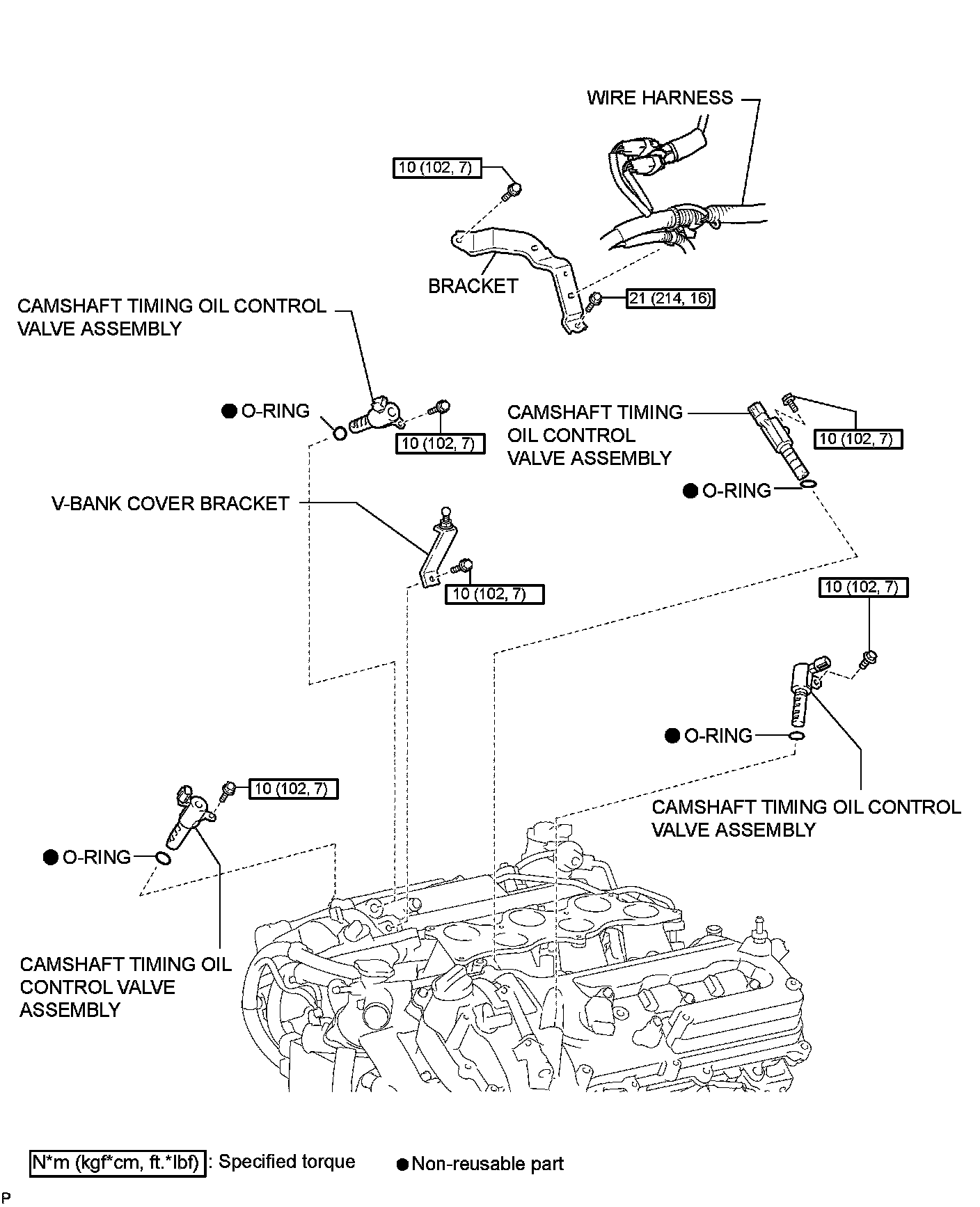

4GR-FSE ENGINE CONTROL SYSTEM:
CAMSHAFT
OIL CONTROL VALVE: COMPONENTS
