Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Lexus
>>
2010
>>
SC 430 V8-4.3L (3UZ-FE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Starter Motor
>>
Service and Repair
>>
Removal and Replacement
>>
Components
Components

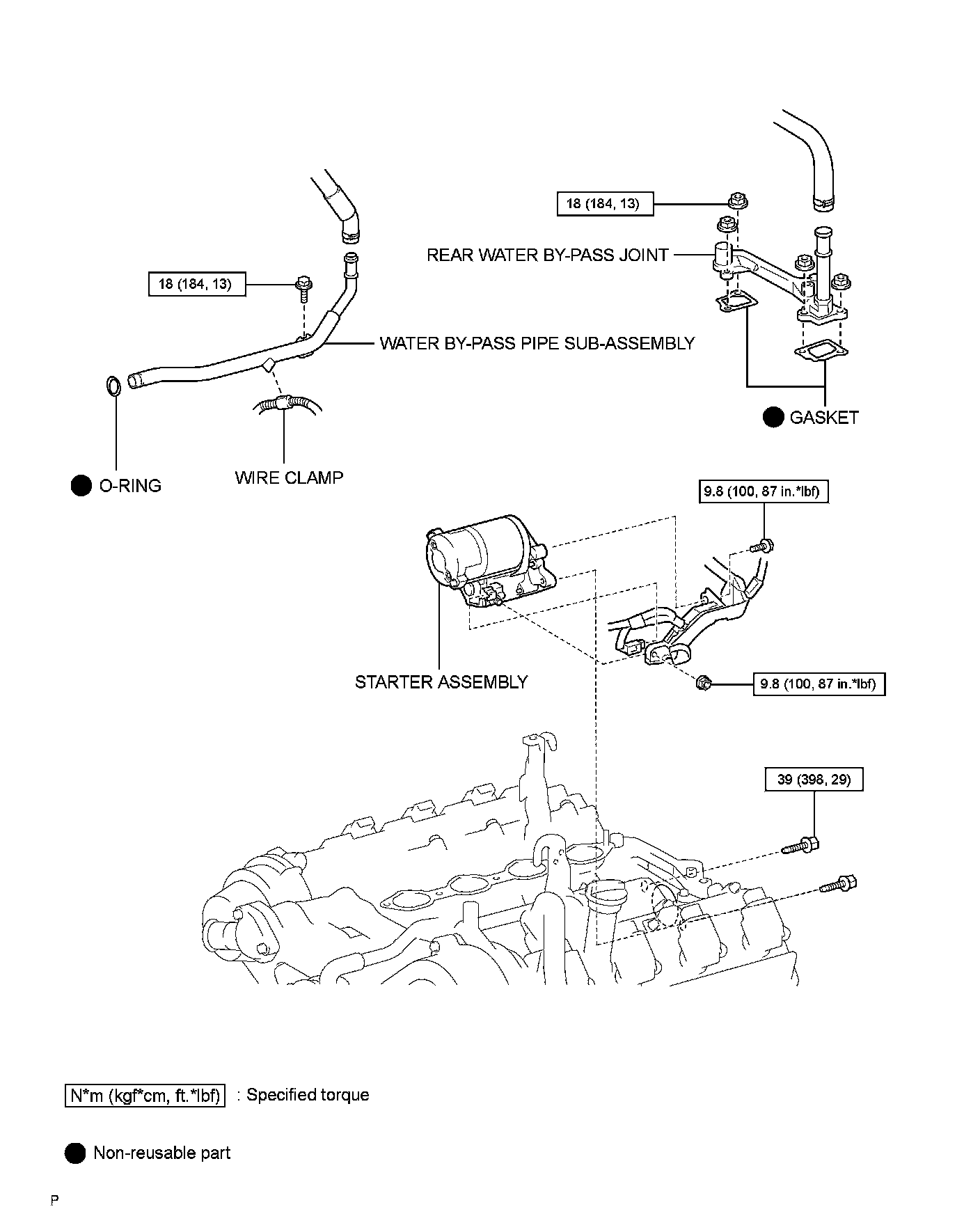

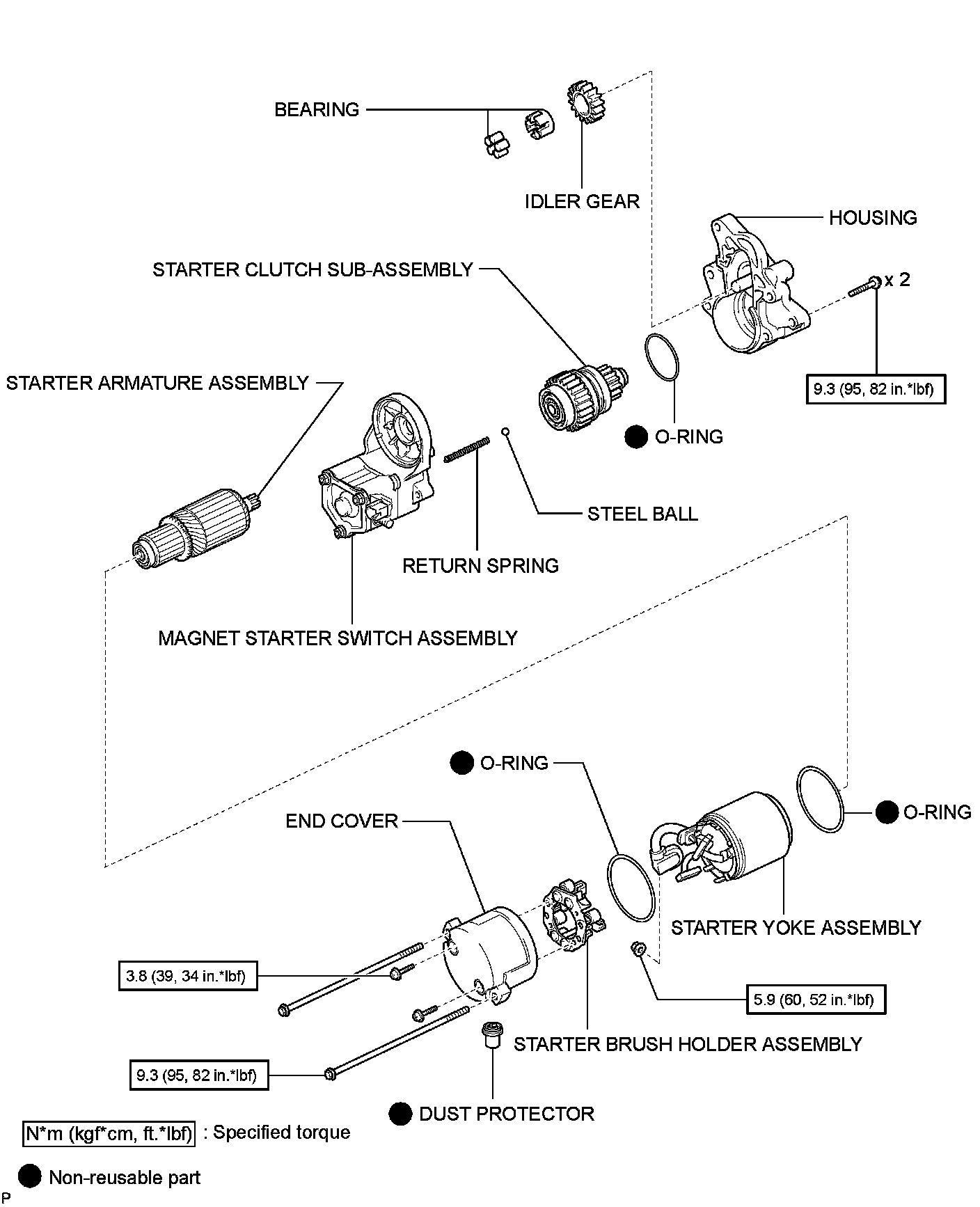

3UZ-FE STARTING: STARTER: COMPONENTS
