Lexus
>>
2010
>>
LS 460 AWD V8-4.6L (1UR-FSE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Alternator
>>
Service and Repair
>>
Removal and Replacement
>>
Components
Components

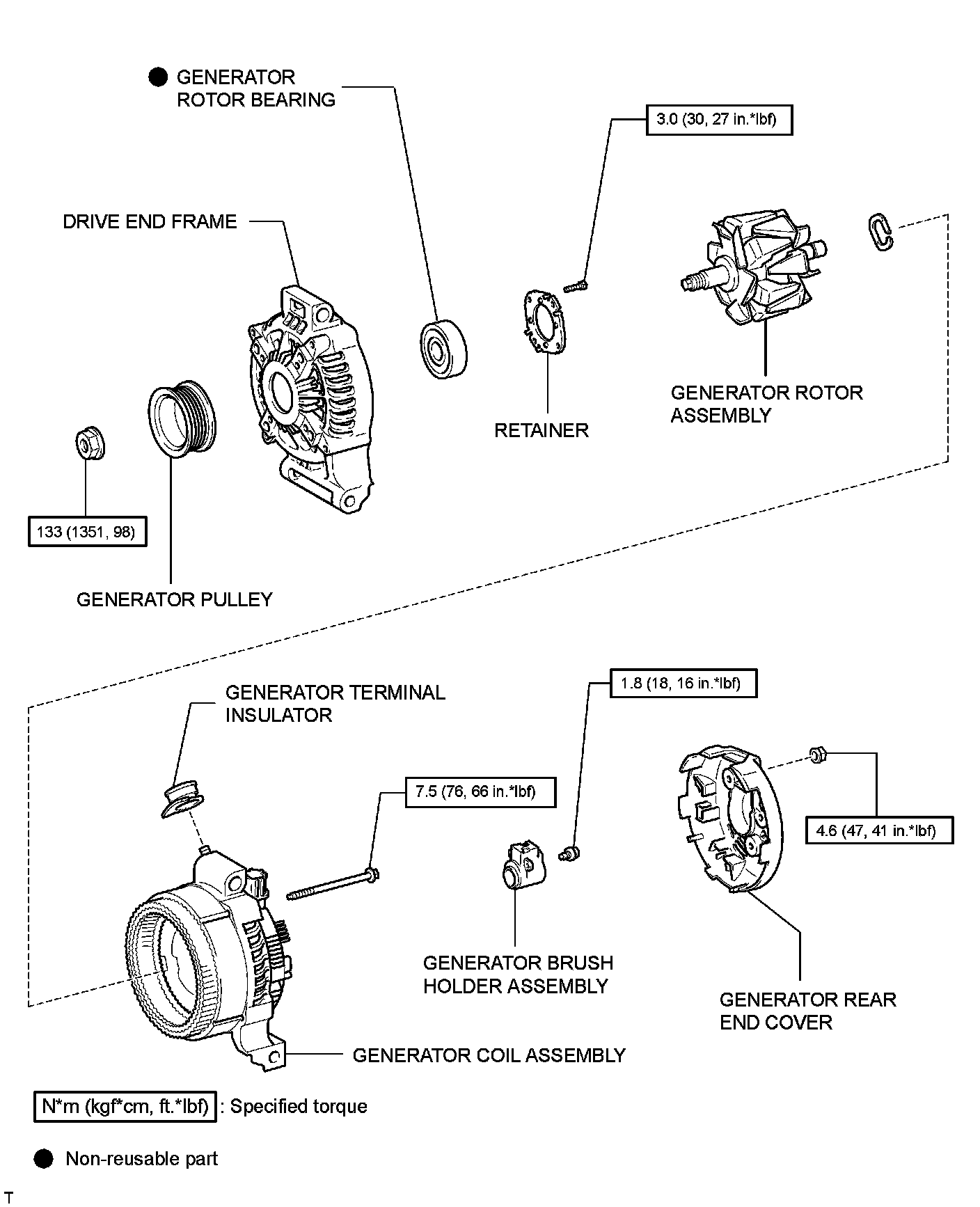

1UR-FSE CHARGING: GENERATOR: COMPONENTS
