Home
>>
Lexus
>>
2010
>>
IS 350 V6-3.5L (2GR-FSE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Alternator
>>
Service and Repair
>>
Removal and Replacement
>>
Components
Components

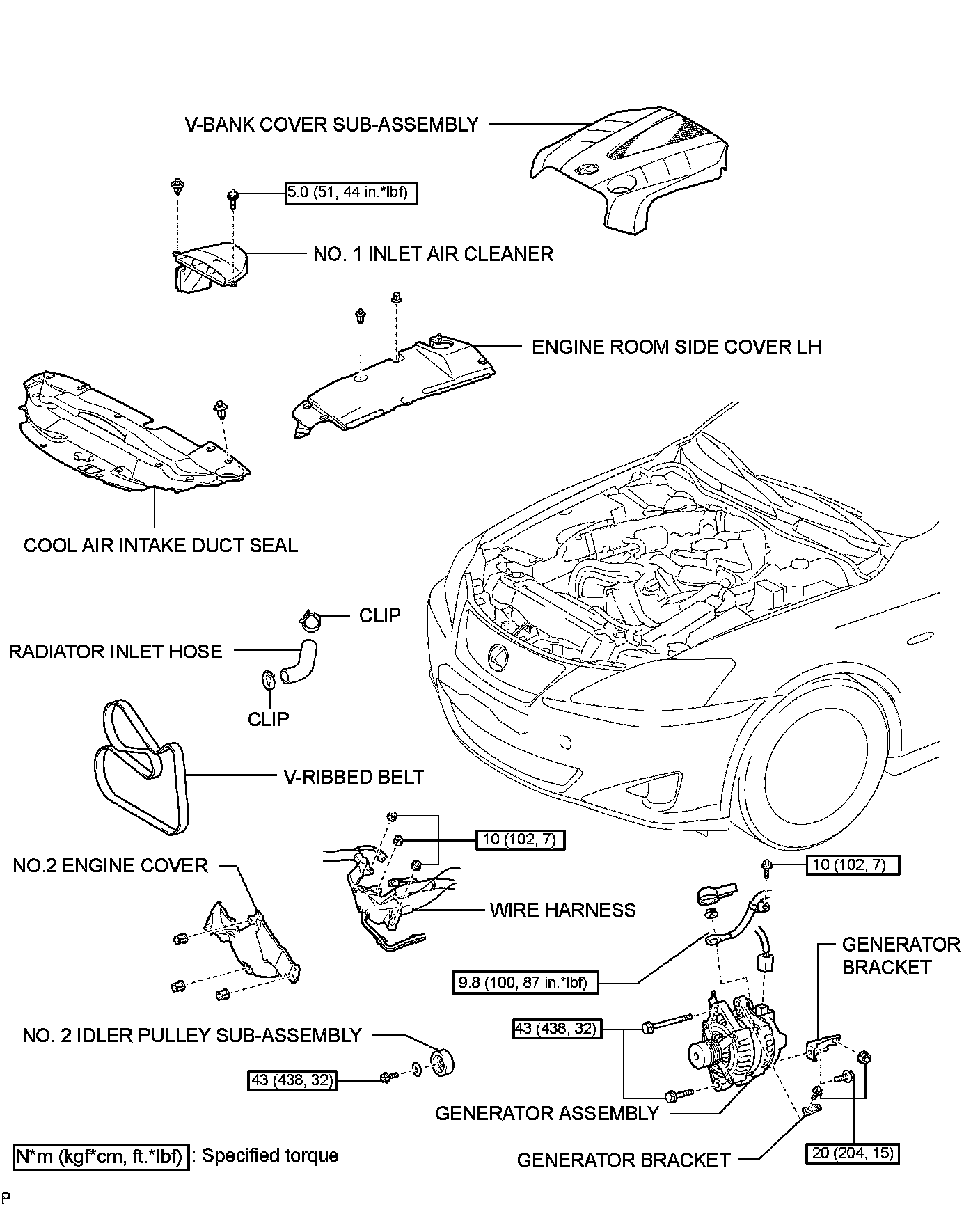

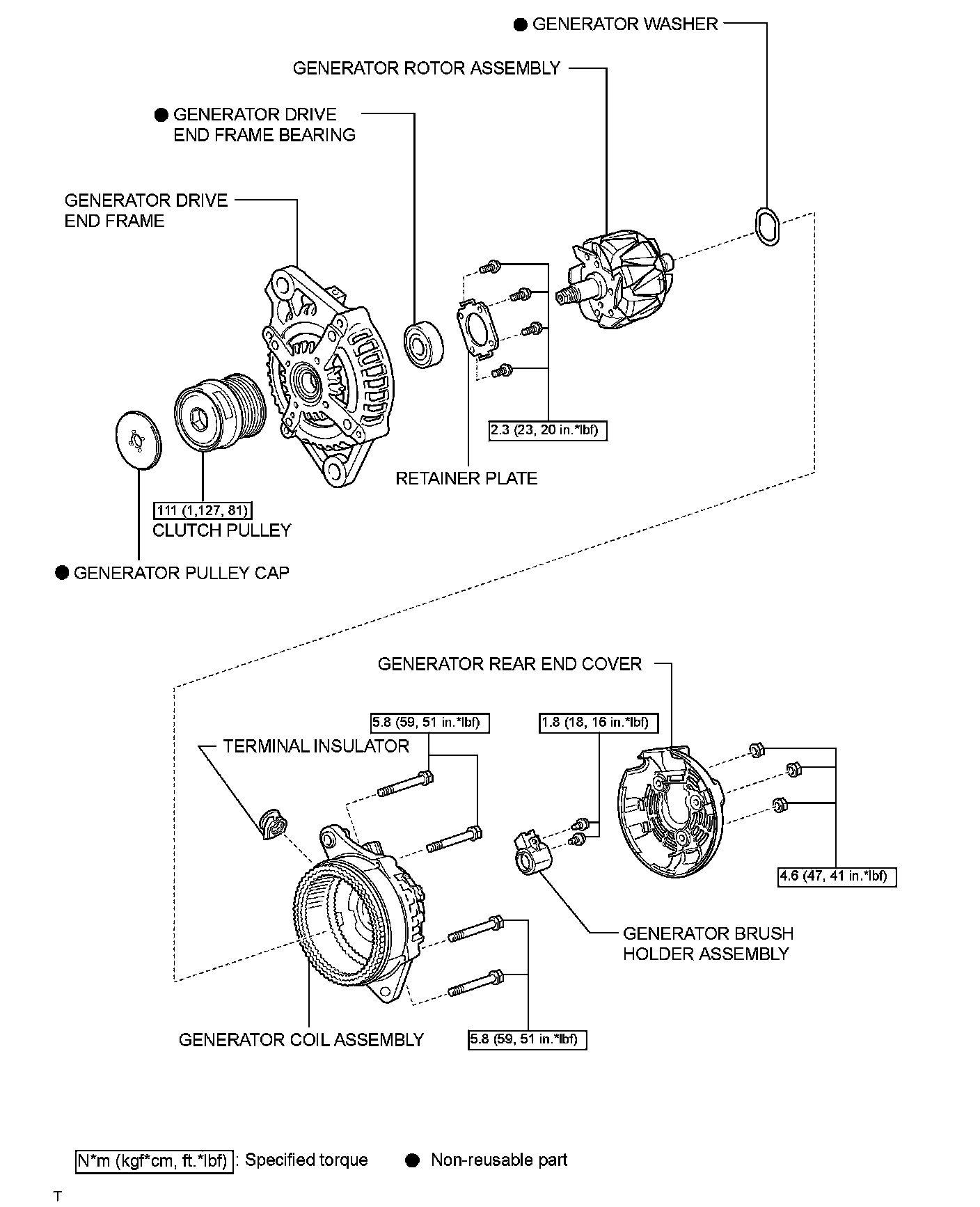

2GR-FSE CHARGING: GENERATOR: COMPONENTS
