Lexus
>>
2010
>>
IS 250C V6-2.5L (4GR-FSE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Injector
>>

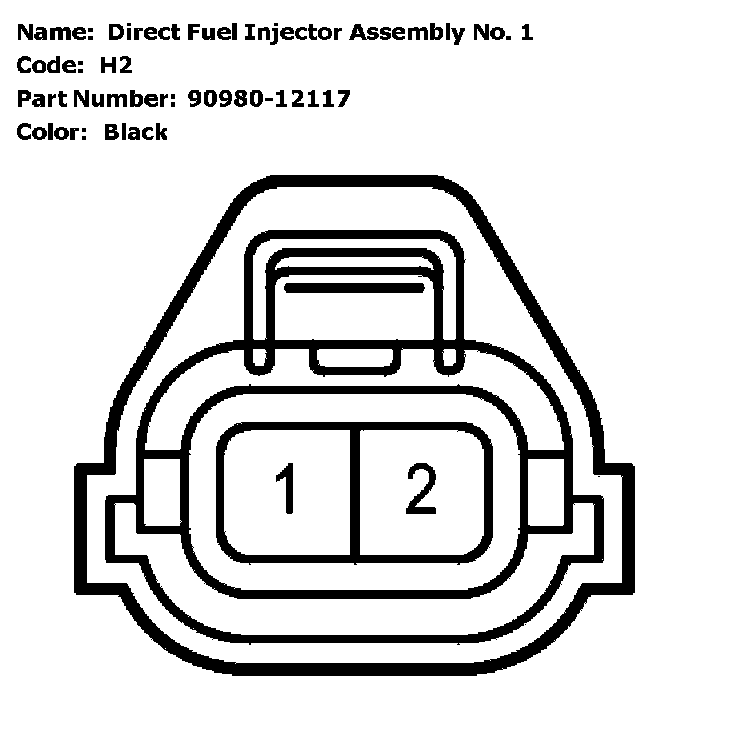

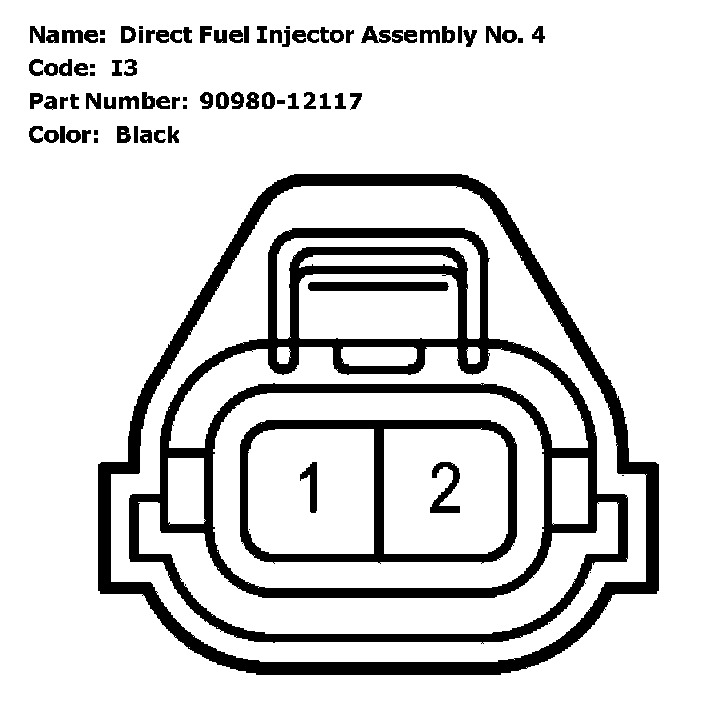

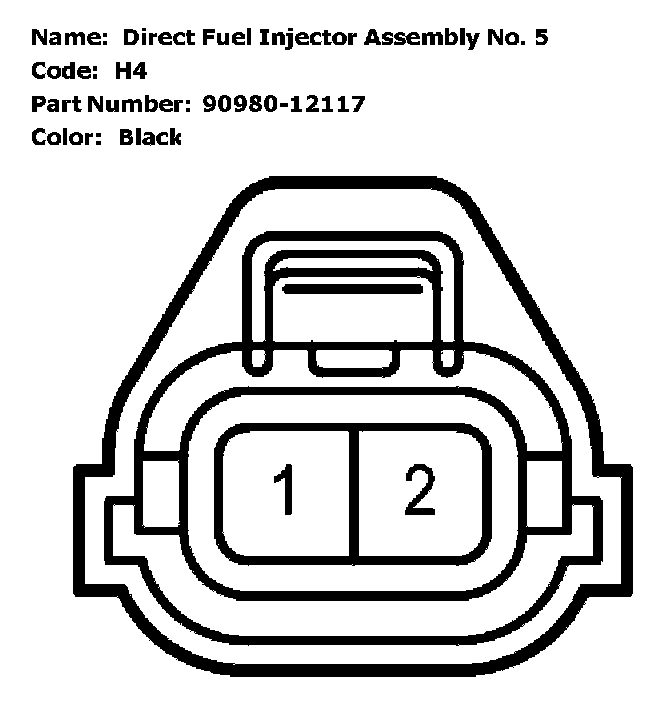

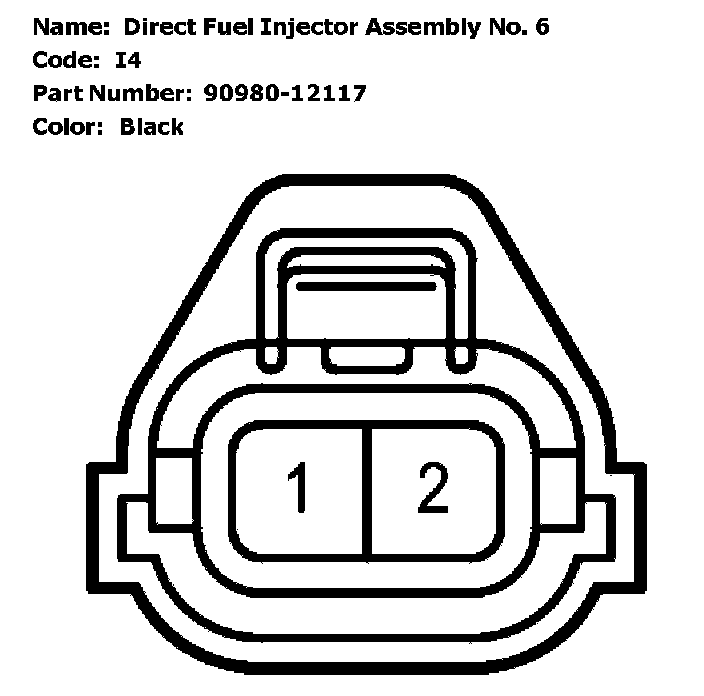

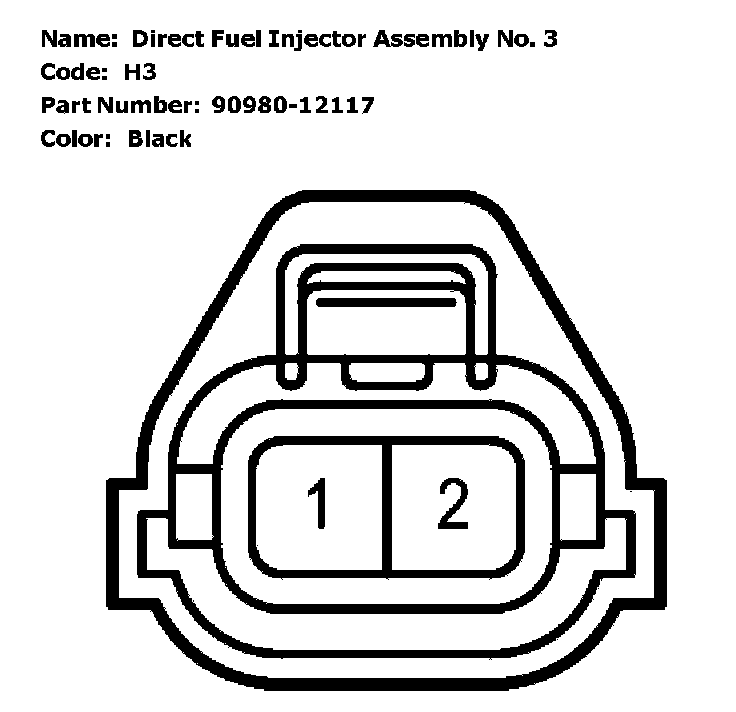

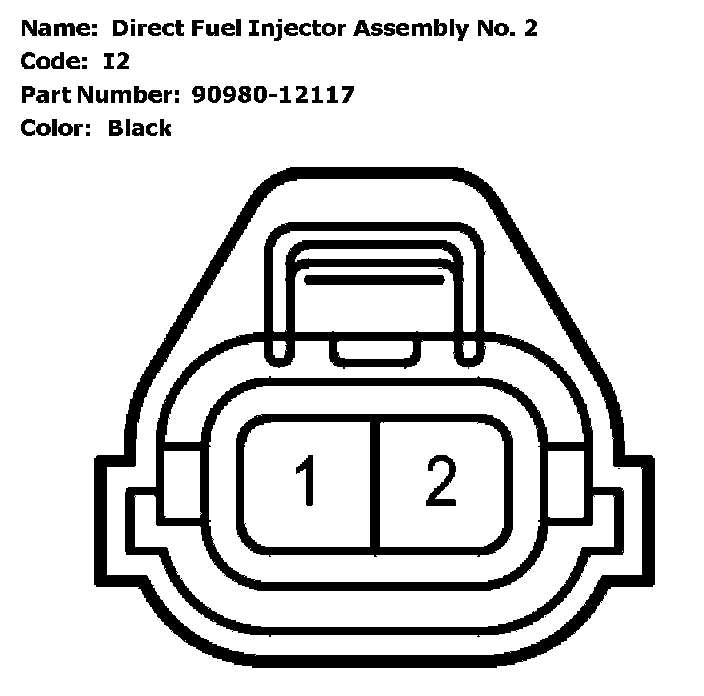

Direct Fuel Injector Assembly
Direct Fuel Injector Assembly
