Secondary Injector Control Module: Locations

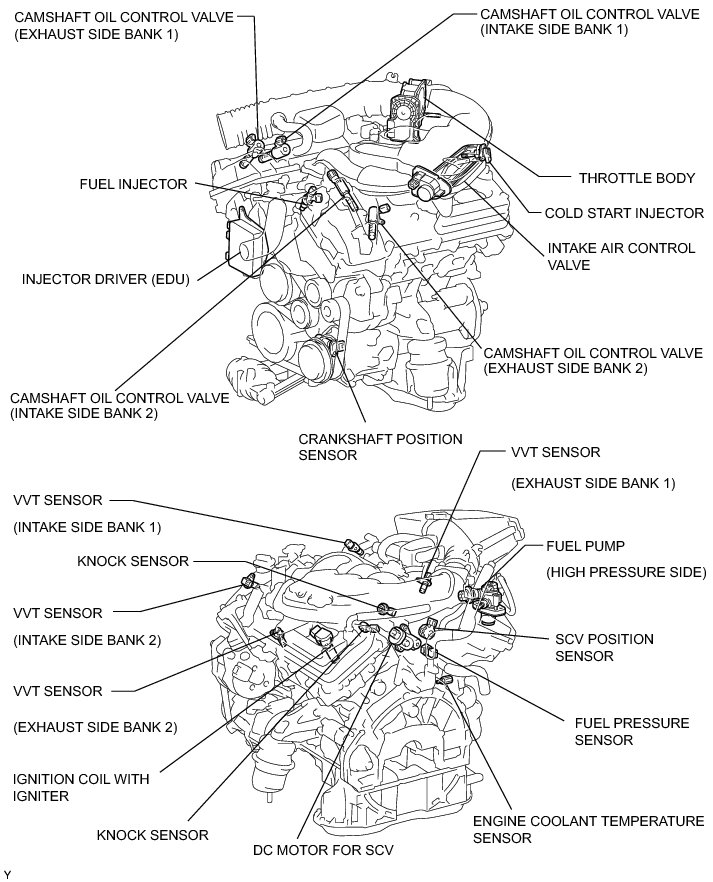

4GR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM: PARTS LOCATION
