Lexus
>>
2009
>>
LS 460 AWD V8-4.6L (1UR-FSE)
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Cooling System
>>
Radiator Cooling Fan Control Module
>>
Service and Repair
>>
Components
Components

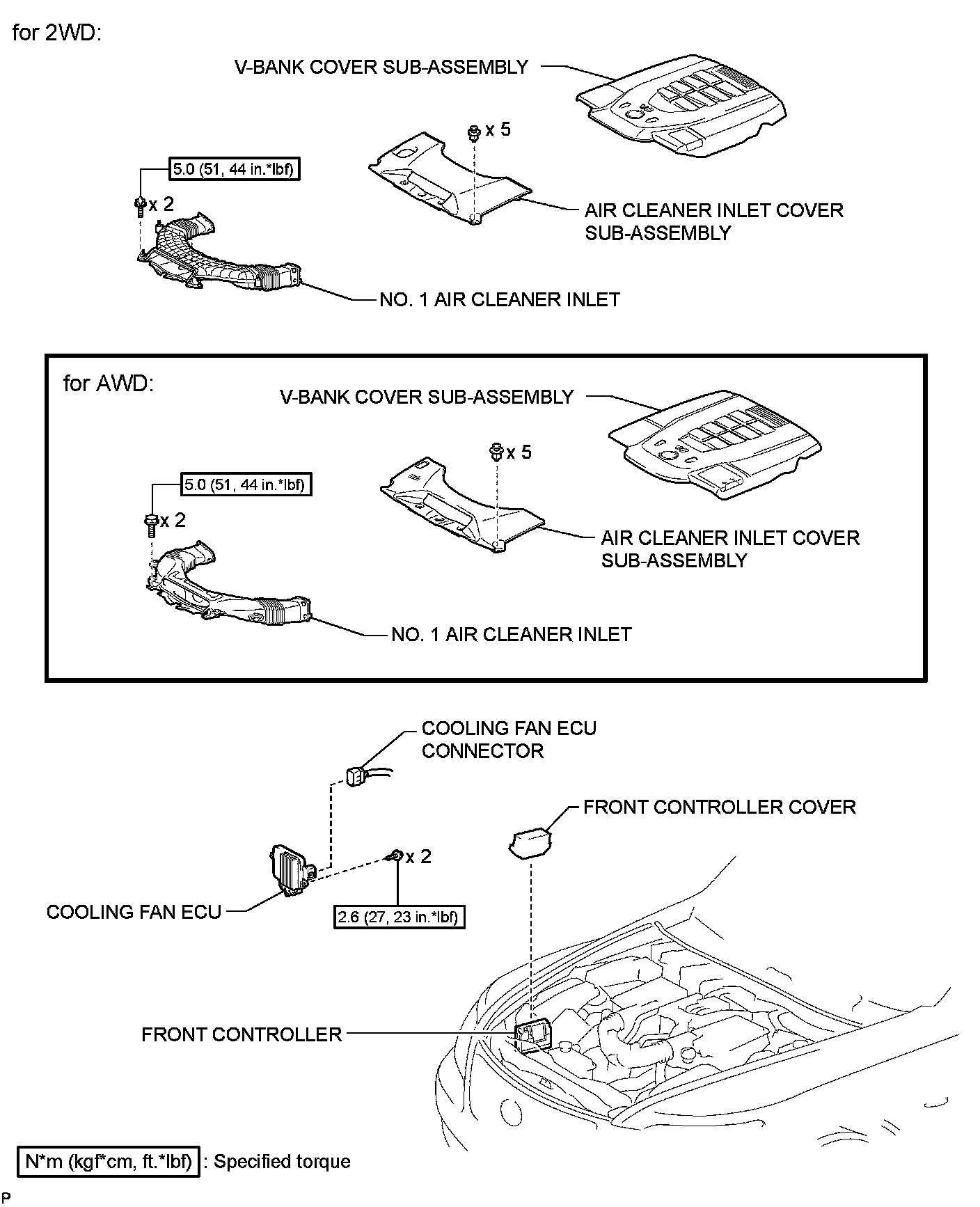

1UR-FSE COOLING: COOLING FAN ECU: COMPONENTS
COMPONENTS
ILLUSTRATION
