Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Lexus
>>
2009
>>
ES 350 V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Alternator
>>
Service and Repair
>>
Components
Components

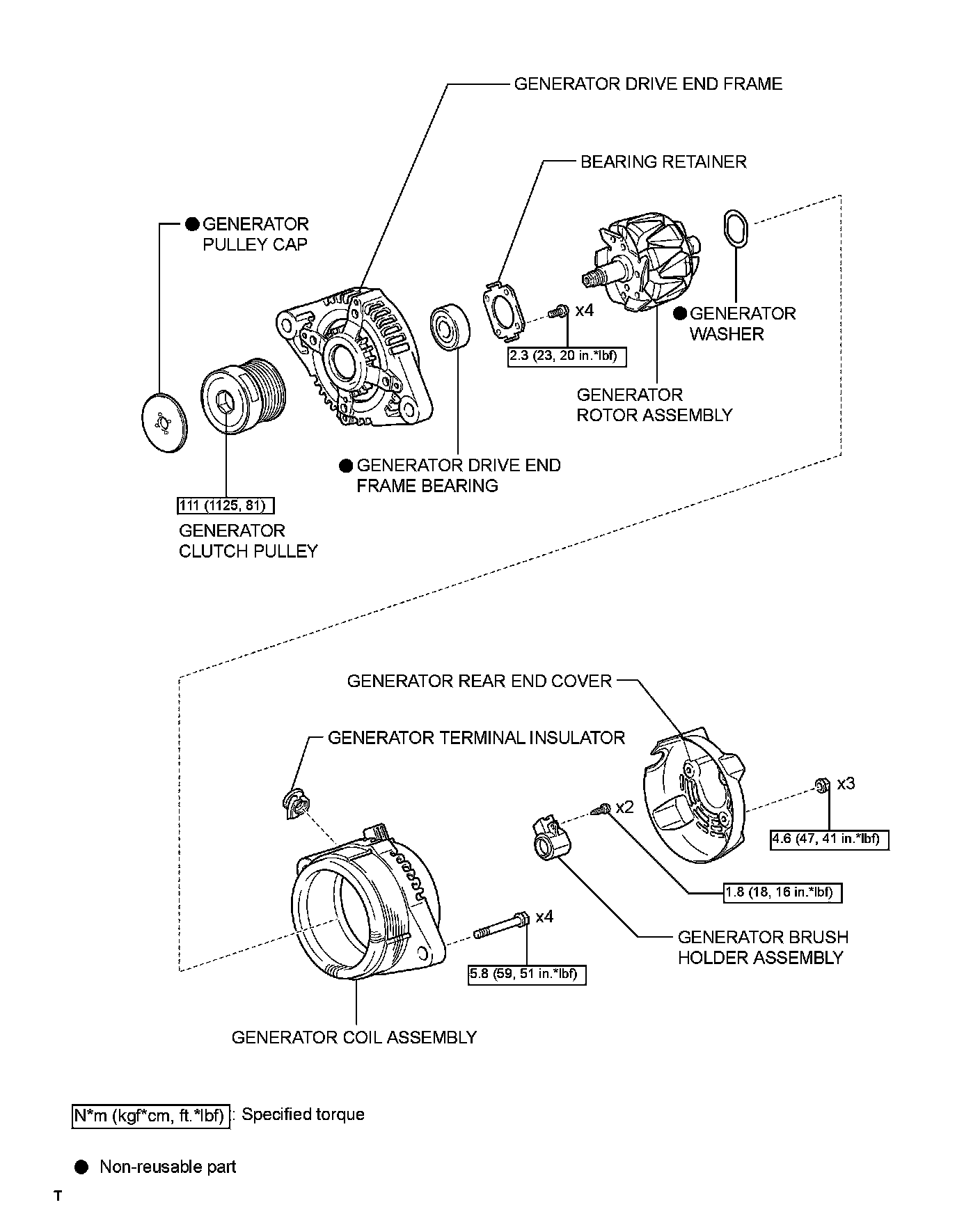

2GR-FE CHARGING: GENERATOR:
COMPONENTS
