Multiplex Communication System
Multiplex Communication System
MULTIPLEX COMMUNICATION SYSTEM:

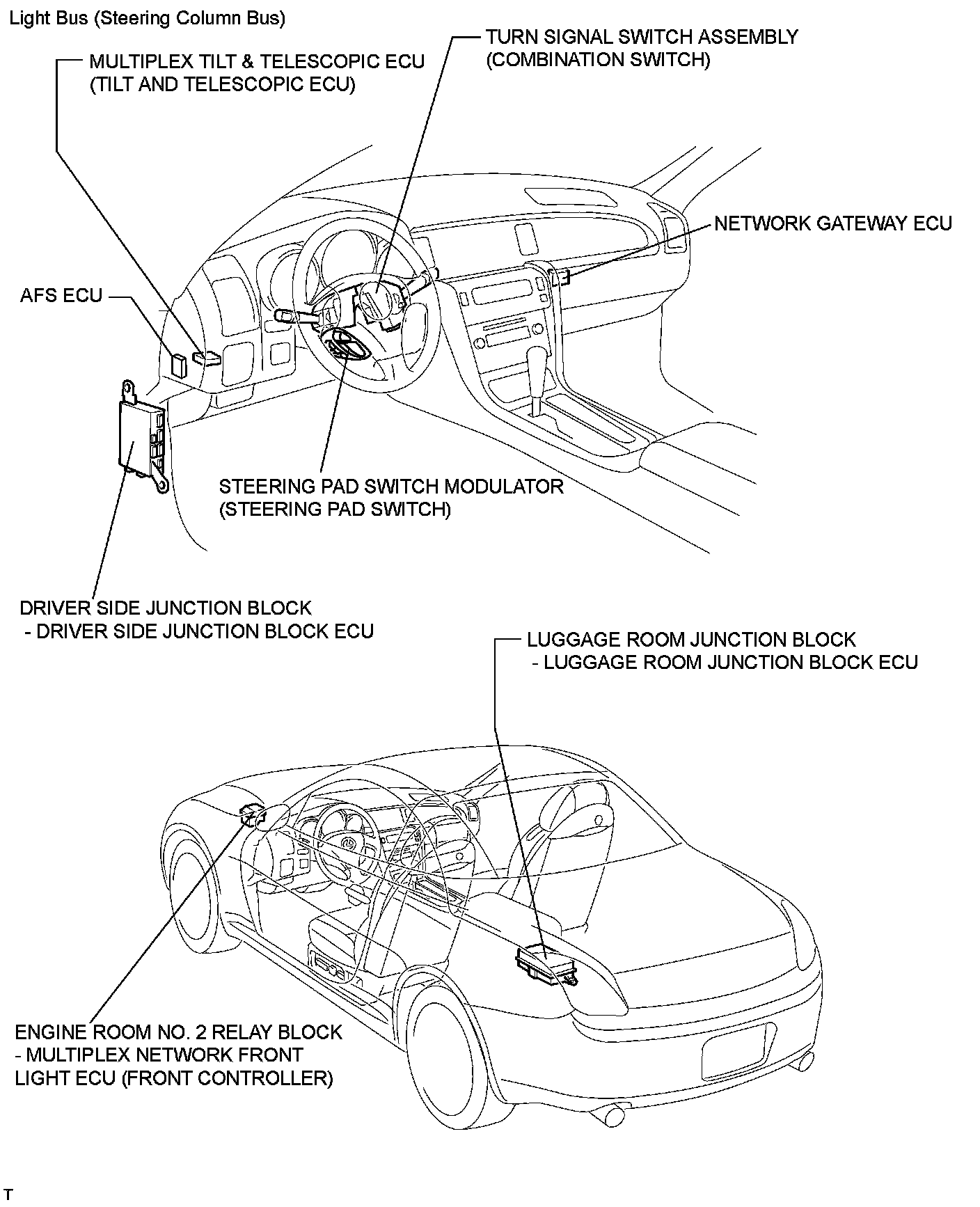

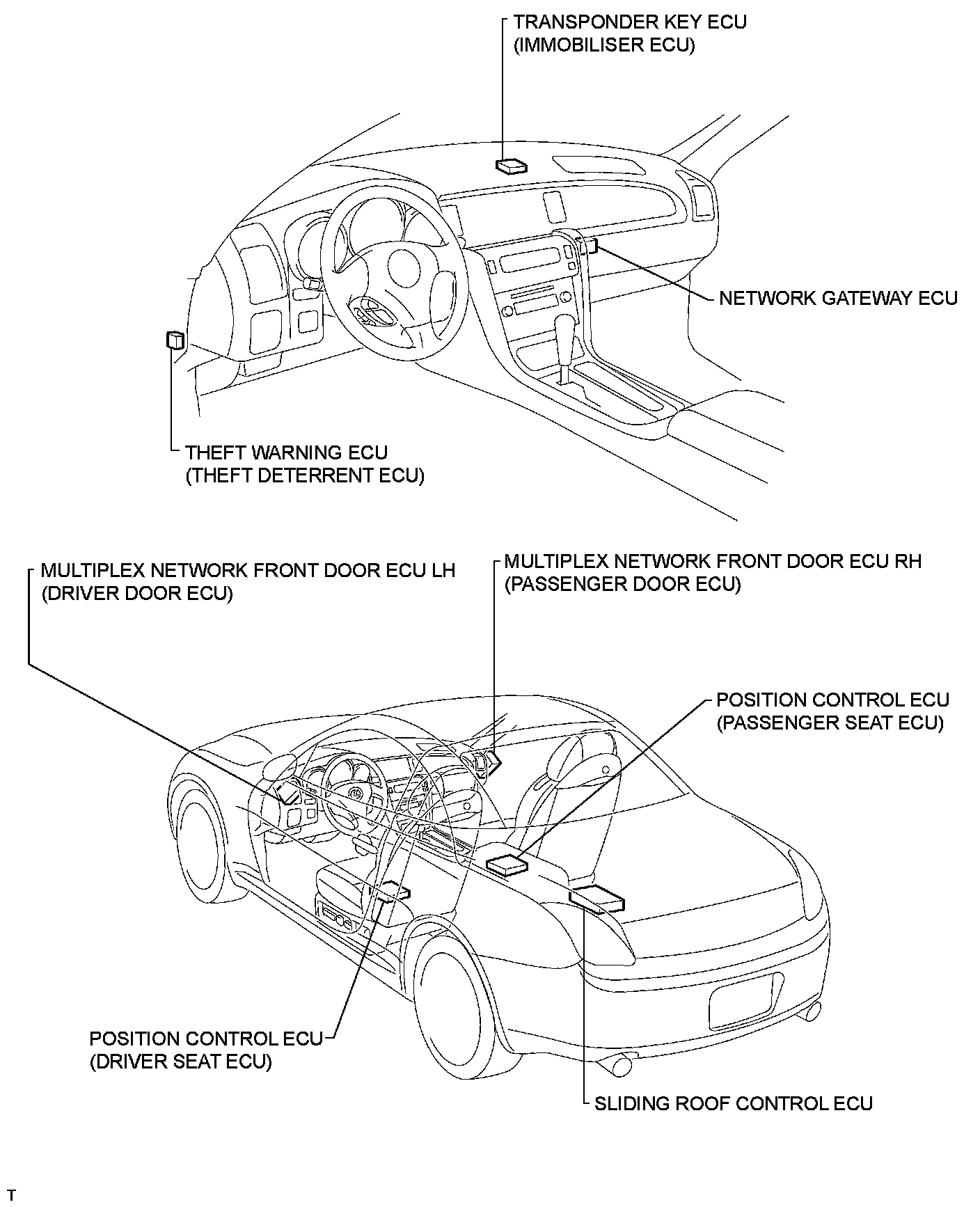

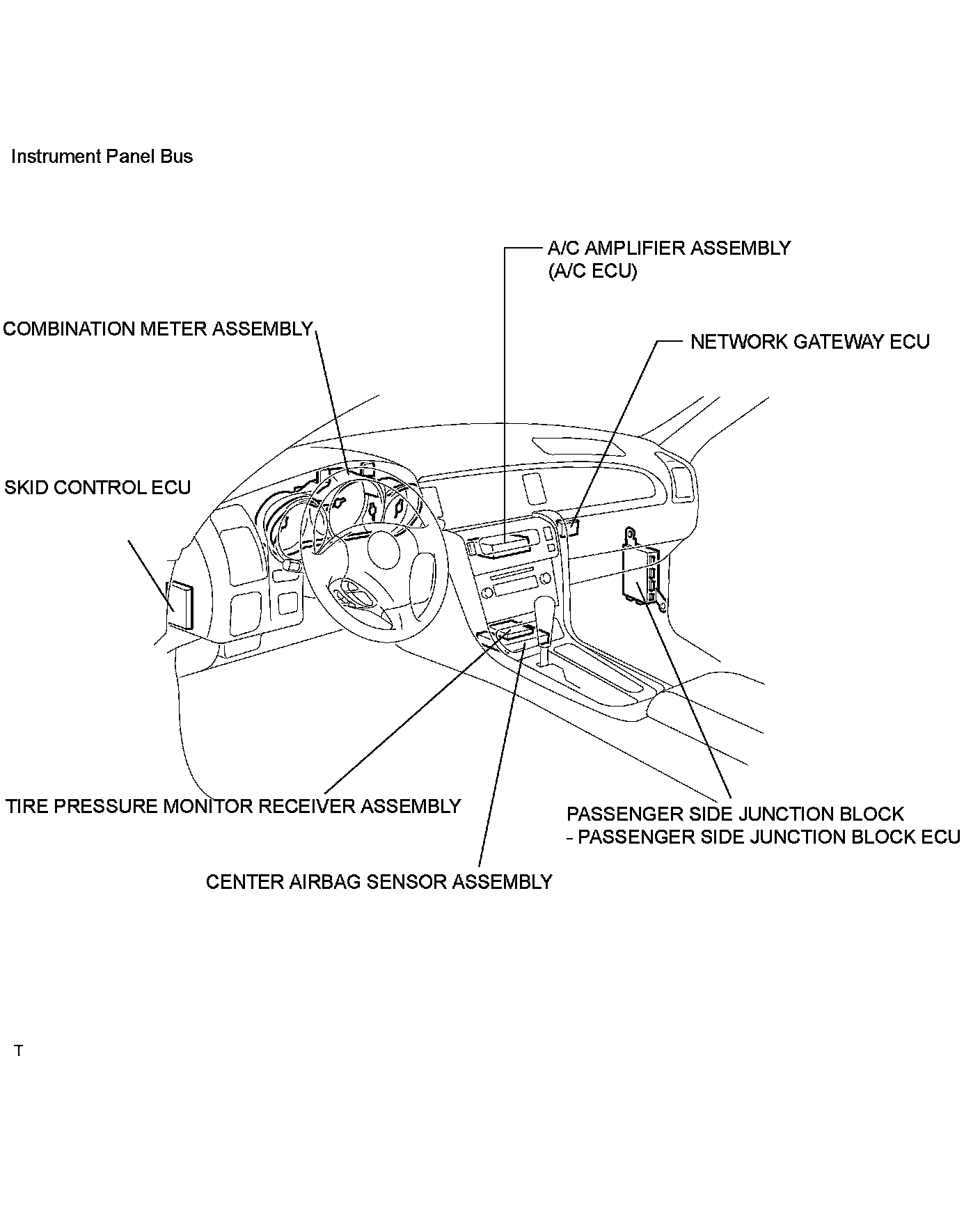

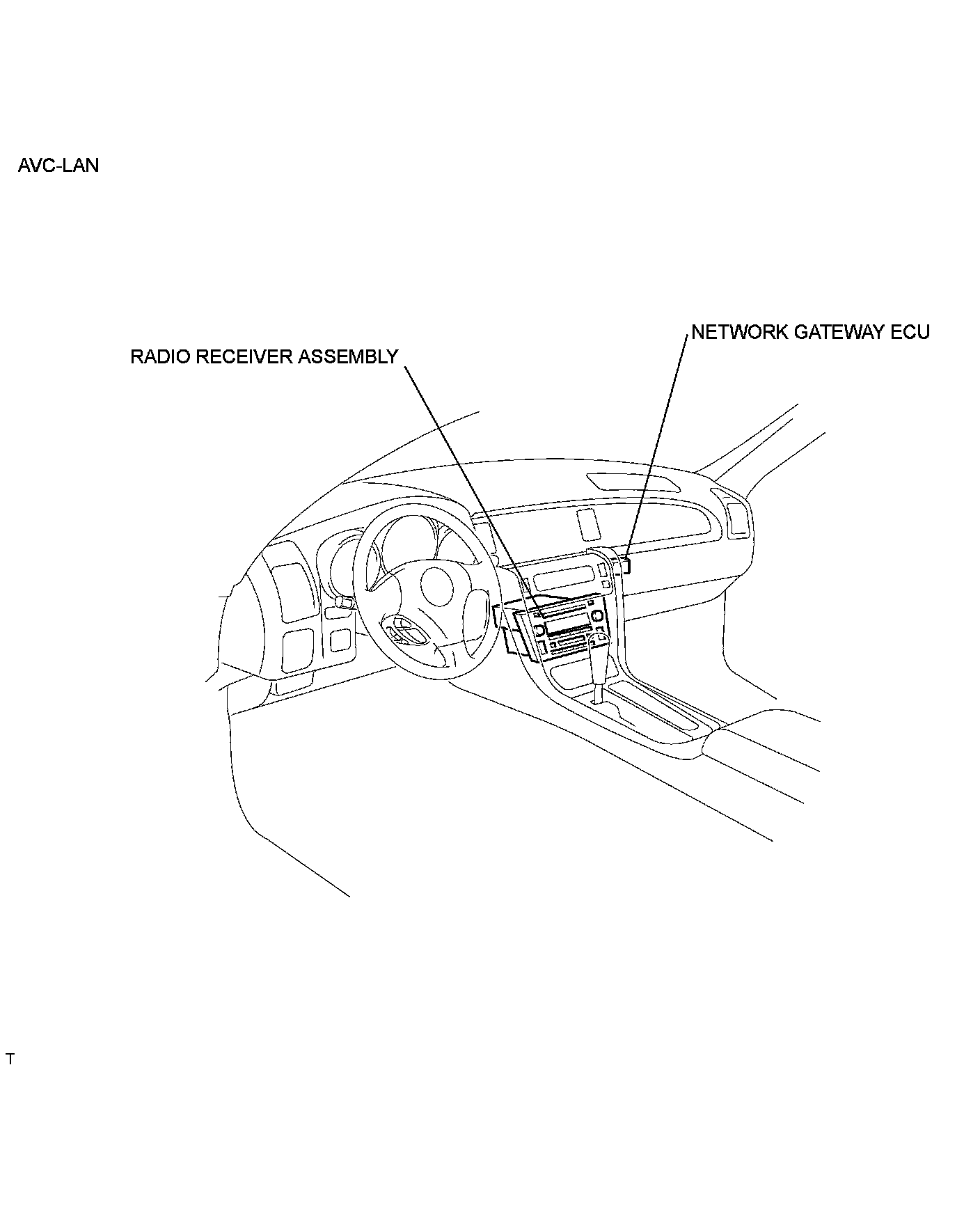

PARTS LOCATION
