Steering Angle Sensor
Steering Angle Sensor

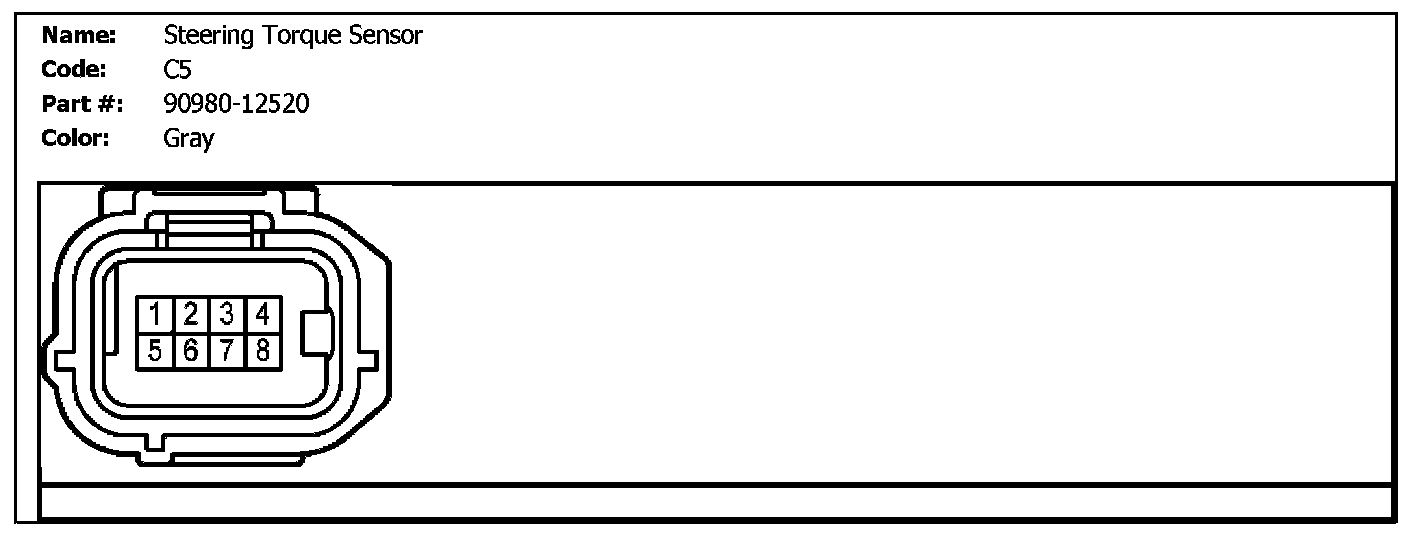

C5 (Steering Torque Sensor):

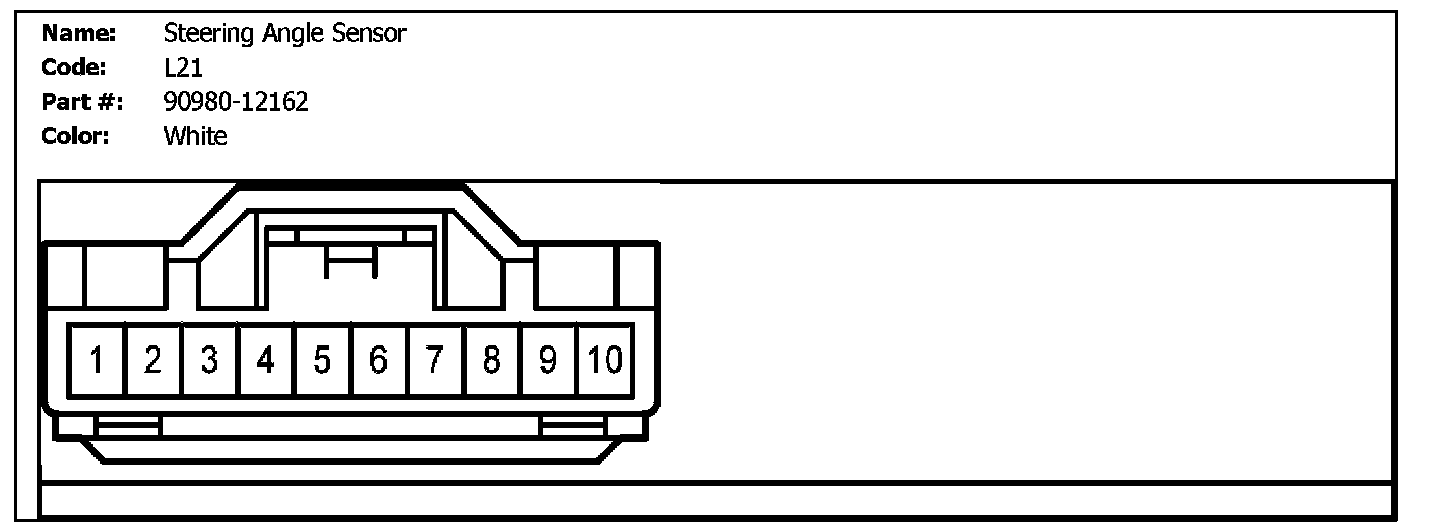

L21 (Steering Angle Sensor):
