Control Module, A/T
Control Module, A/T

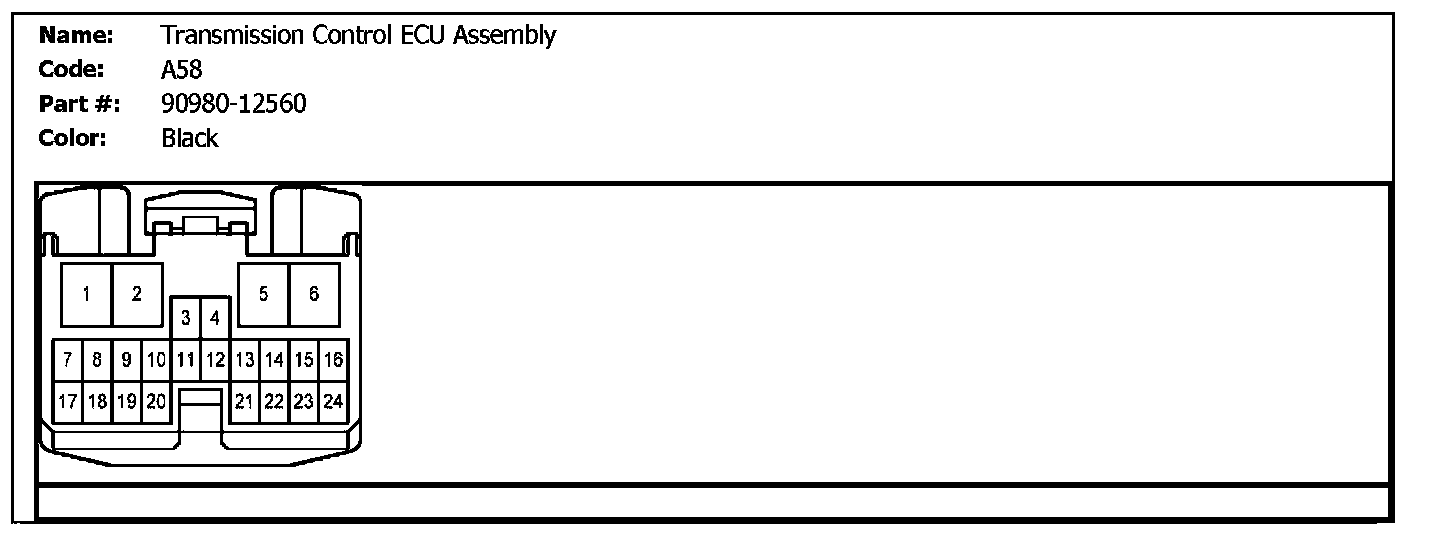

A58 (Transmission Control ECU Assembly):

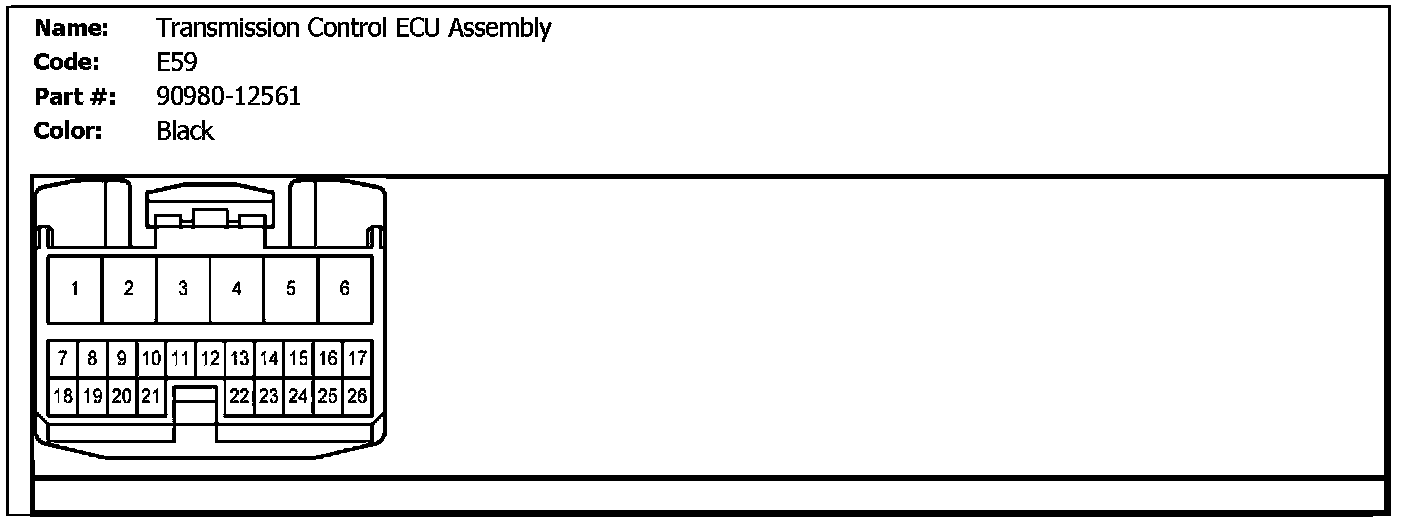

E59 (Transmission Control ECU Assembly):
