f1 (Windshield Wiper Switch Assembly, Headlight Dimmer Switch Assembly)
f1 (Windshield Wiper Switch Assembly, Headlight Dimmer Switch Assembly)

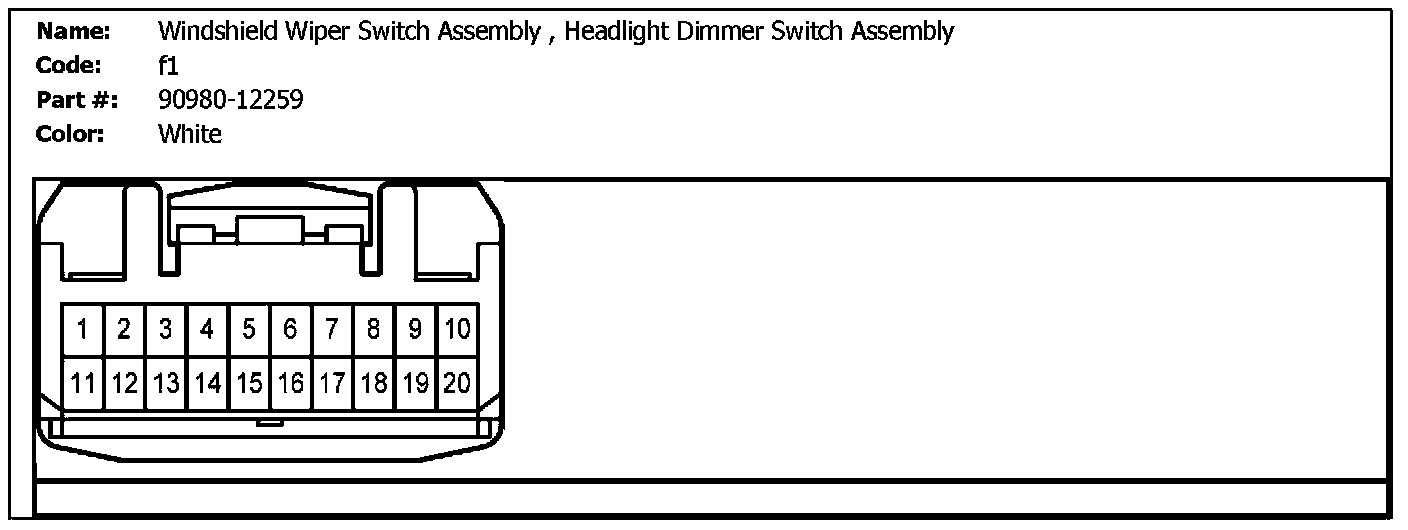

f1 (Windshield Wiper Switch Assembly, Headlight Dimmer Switch Assembly):

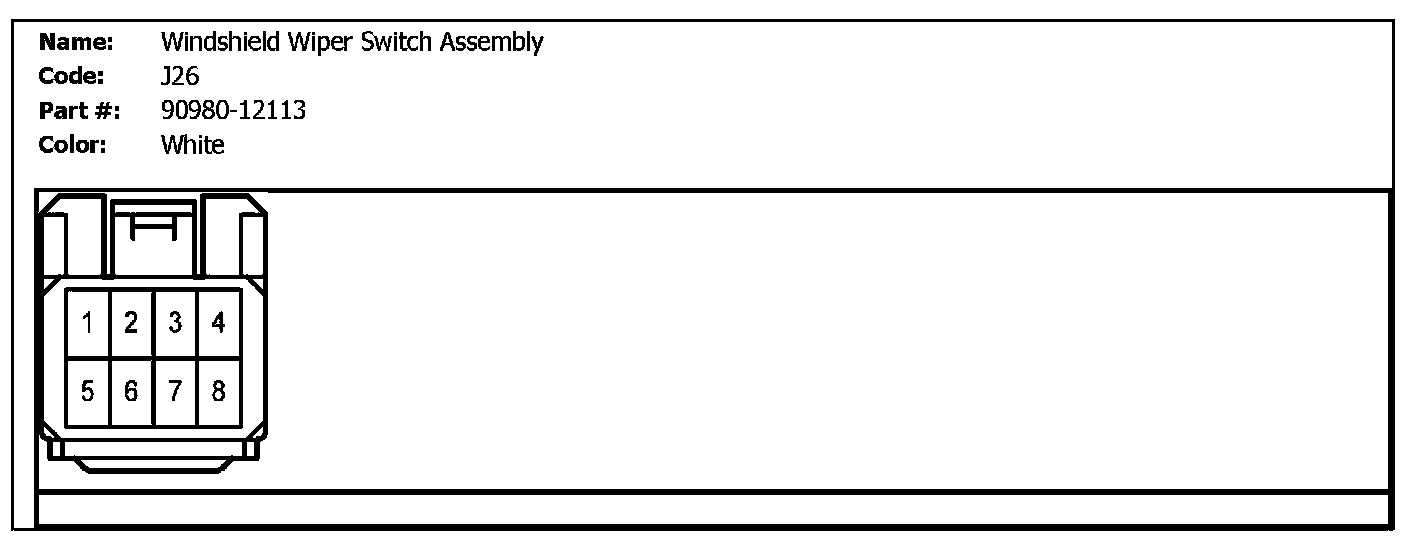

J26 (Windshield Wiper Switch Assembly):
